Driver's Dashboard Lower Cover Removal/Installation

Driver's Dashboard Lower Cover Removal/Installation

NOTE: Take care not to scratch the dashboard and related parts.

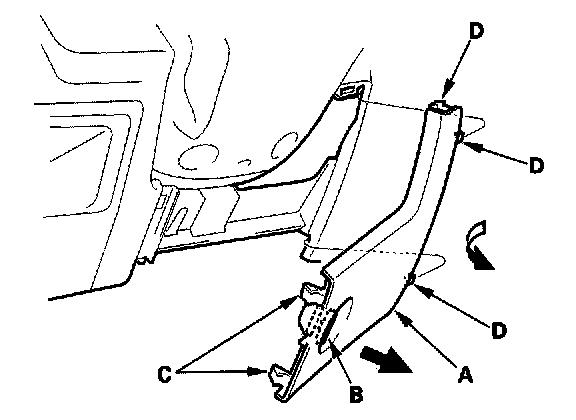

1. Remove the driver's dashboard lower cover (A).
-1 Turn the lock knob (B) 90 °.
-2 Gently pull out the left side to release the hooks (C).
-3 Pull out the panel to release the hooks (D).

2. Install the cover in the reverse order of removal, and push the hook portions into place securely.
