Console, Front and Rear Removal/Installation

Console, Front and Rear Removal/Installation

NOTE: Take care not to scratch the front seat, dashboard, and related parts.

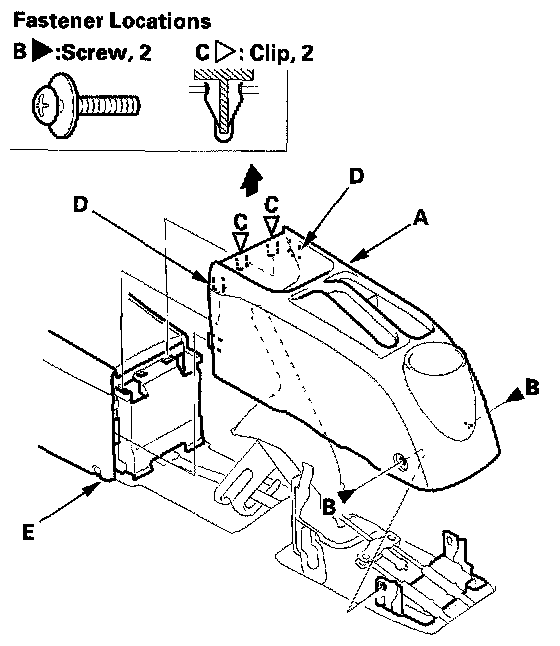

1. Remove the rear console (A).
-1 Slide the front seat forward fully on each side.
-2 Remove the screws (B) from the rear portion of the rear console.
-3 Slide the front seat rearward fully on each side.
-4 Pull the front portion of the rear console up to detach the clips (C) and hooks (D), then release the rear console from the front console (E).
-5 Starting at the rear, pull the rear console up, then remove it.

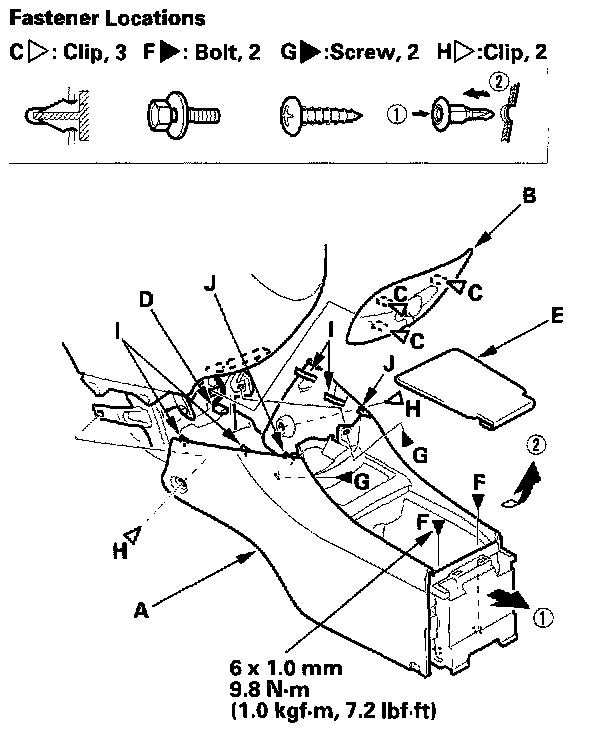

2. Remove the front console (A).
-1 Pull out the dashboard center lower cover (B) to detach the clips (C).
-2 Disconnect the accessory power socket connector (D).
-3 Remove the console box mat (E).
-4 Remove the bolts (F), screws (G), and clips (H).
-5 Gently pull out the front console to release the hooks (I) and pins (J).

3. Install the console in the reverse order of removal, and note these items:
- Replace any damaged clips.
- Make sure the accessory power socket connector is plugged in properly.
- Push the clips into place securely.
