Frame Repair Chart
Frame Repair Chart

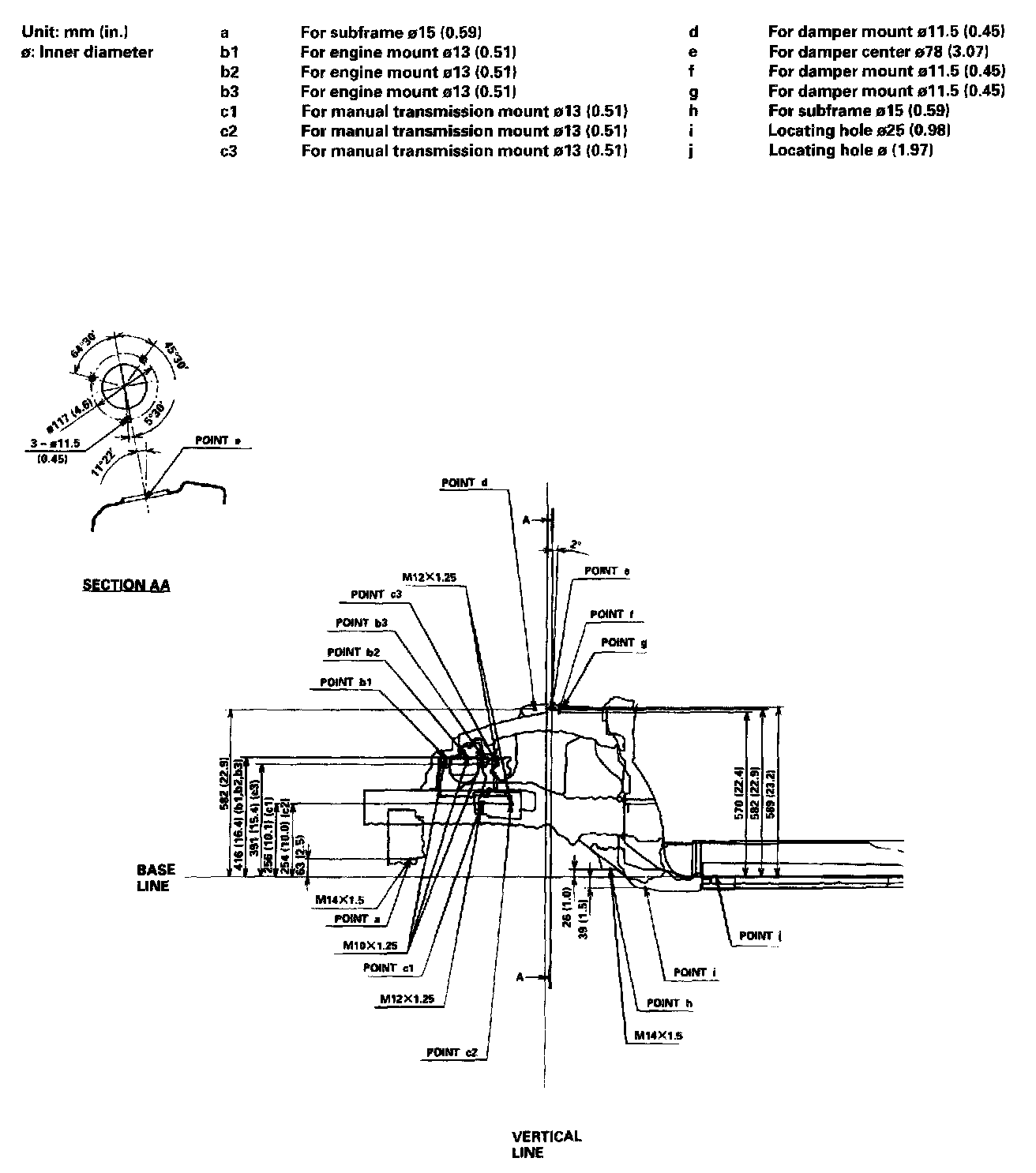

Frame - Frame Repair Chart Top View 1:

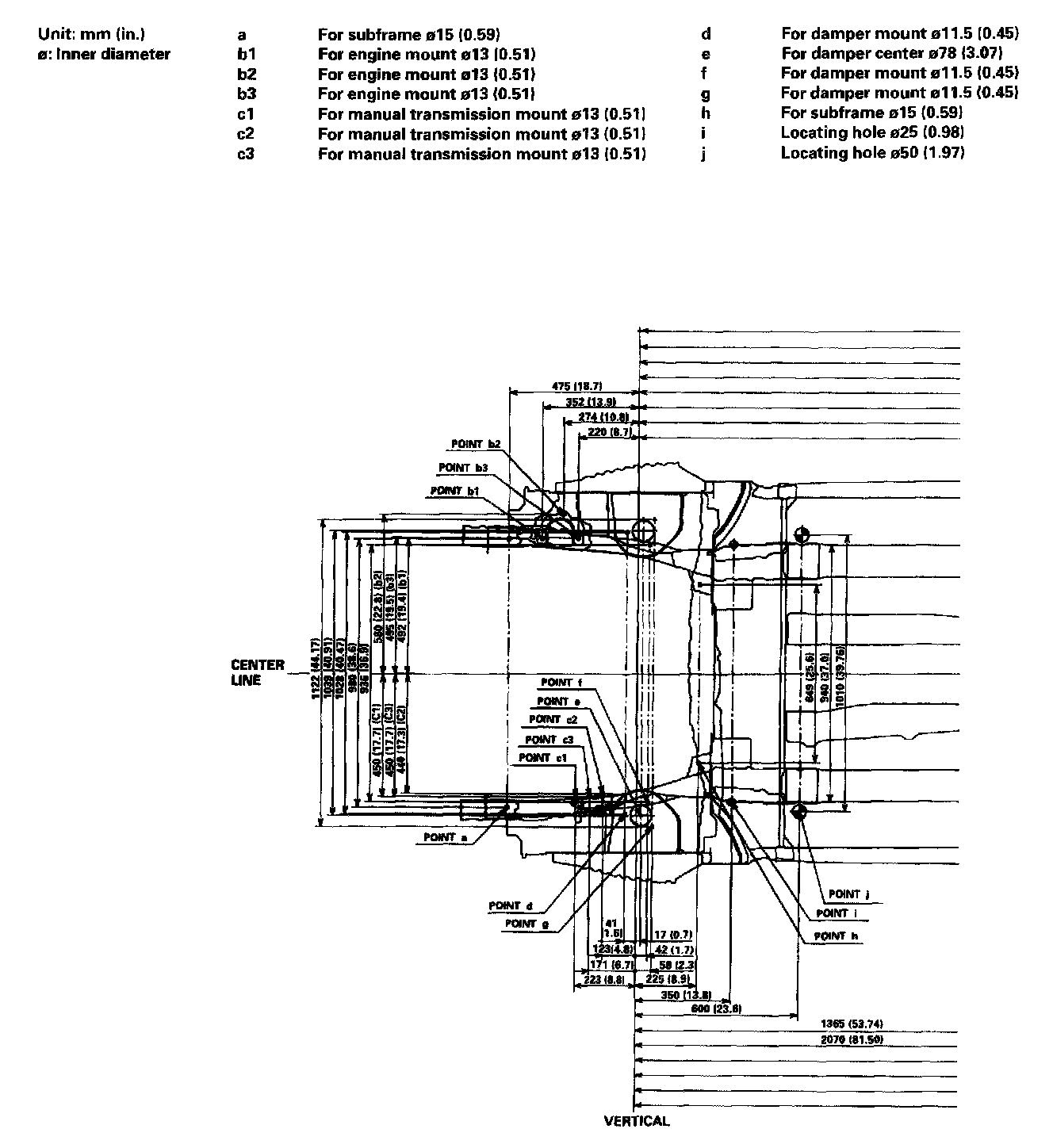

Frame - Frame Repair Chart Top View 2:

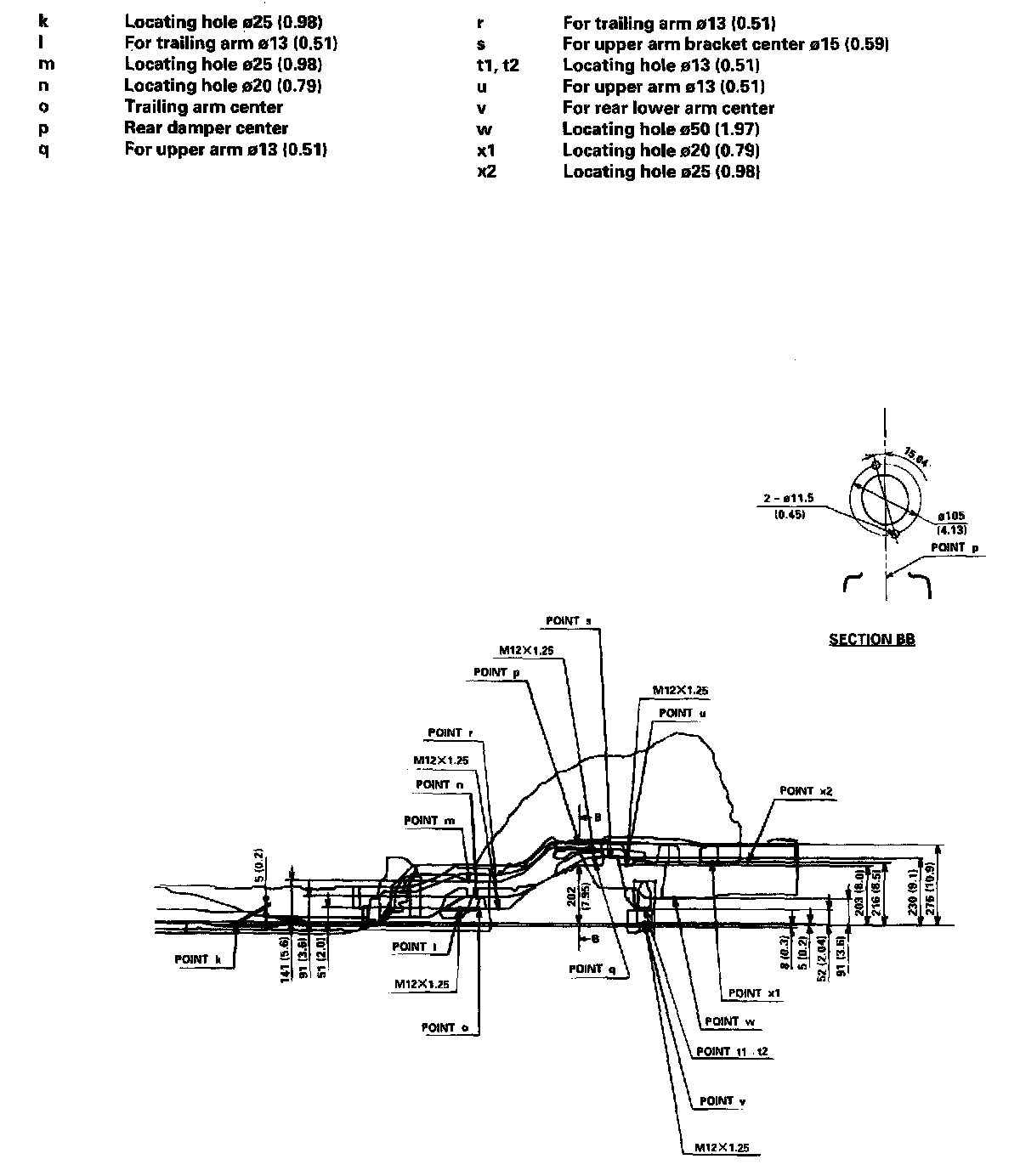

Frame - Frame Repair Chart Side View 1:

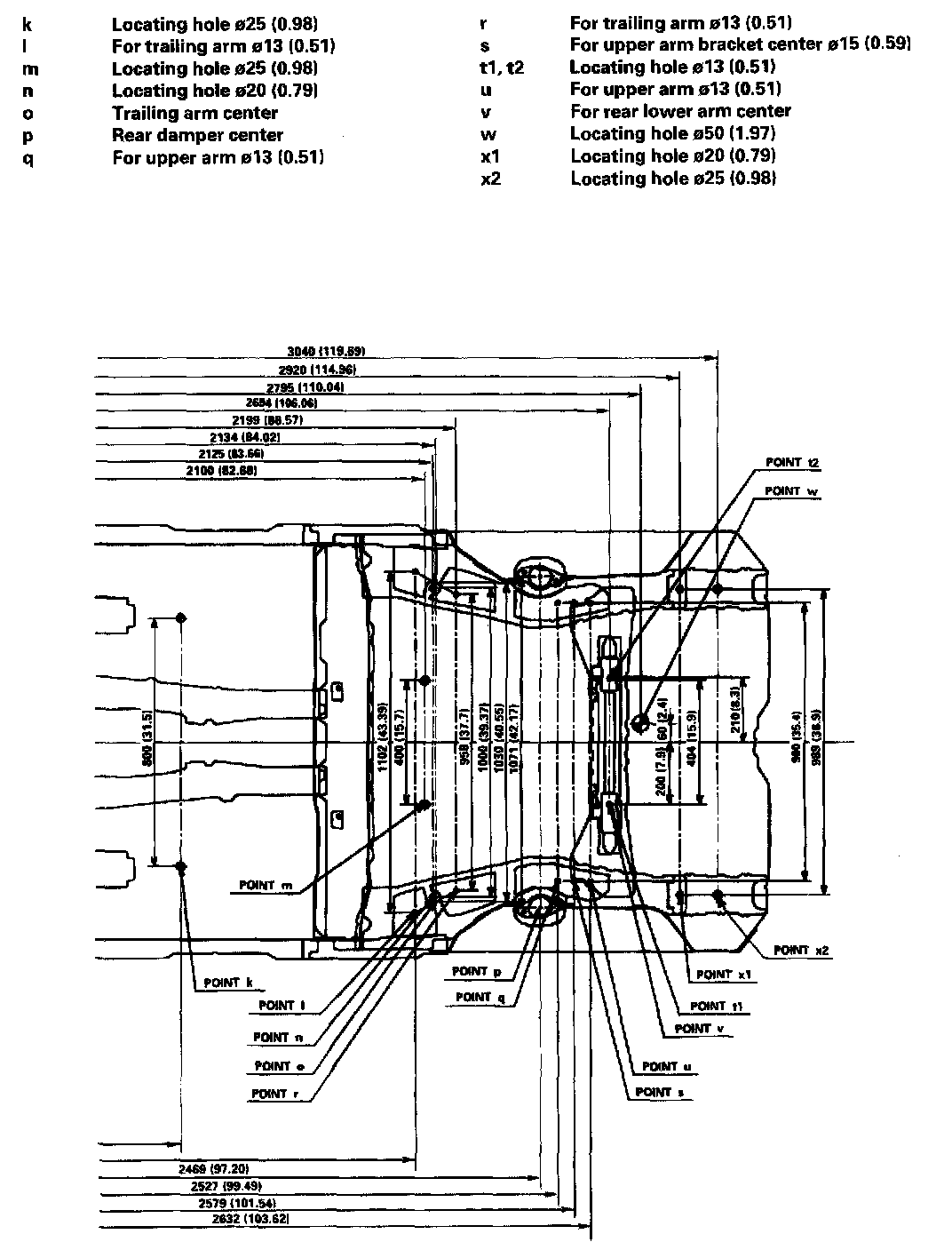

Frame - Frame Repair Chart Side View 2:
