Front Fender Fairing Replacement

Front Fender Fairing Replacement

1. Remove the front inner fender as necessary.

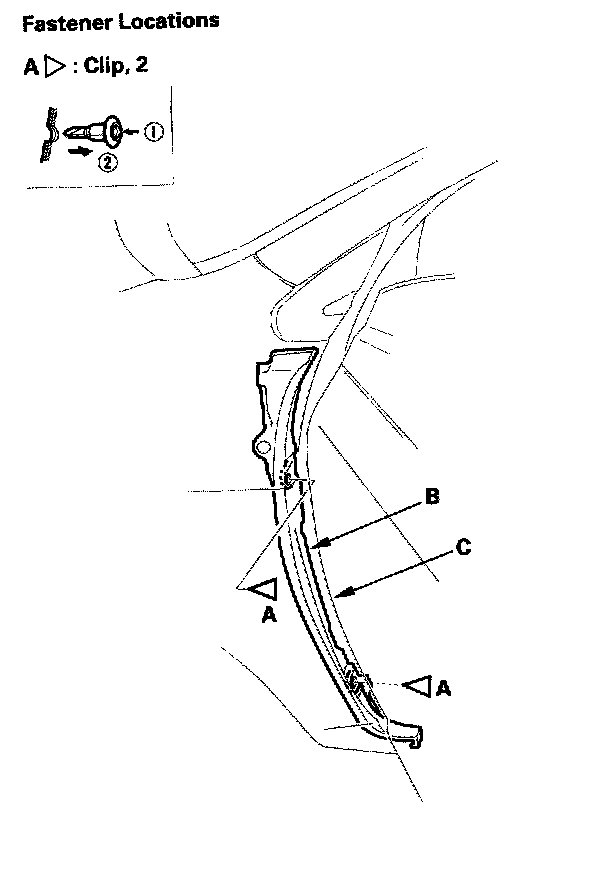

2. Open the front door. From outside the door, remove the upper clip (A), and from inside the door, remove the lower clip (A) securing the front fender fairing (B) and front fender (C).

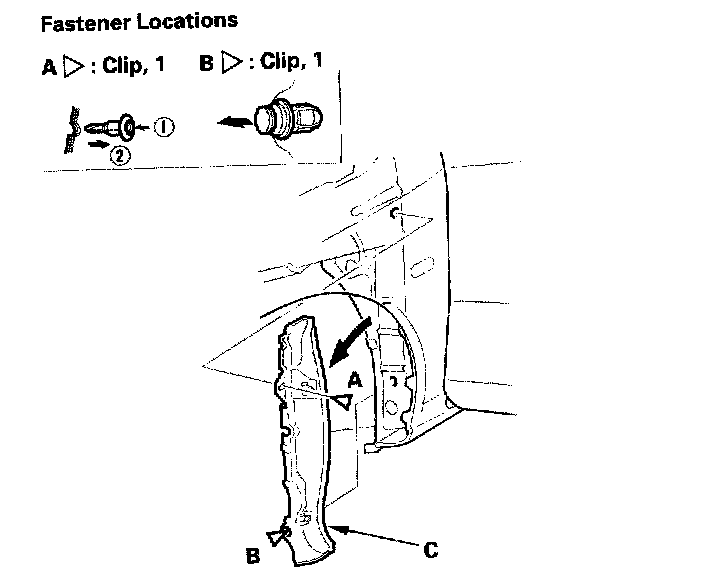

3. From the wheel arch, remove the clip (A), and release the clip (B), then remove the front fender fairing (C).




4. Install the fender fairing in the reverse order of removal, and note these items.
- Replace any damaged clips.

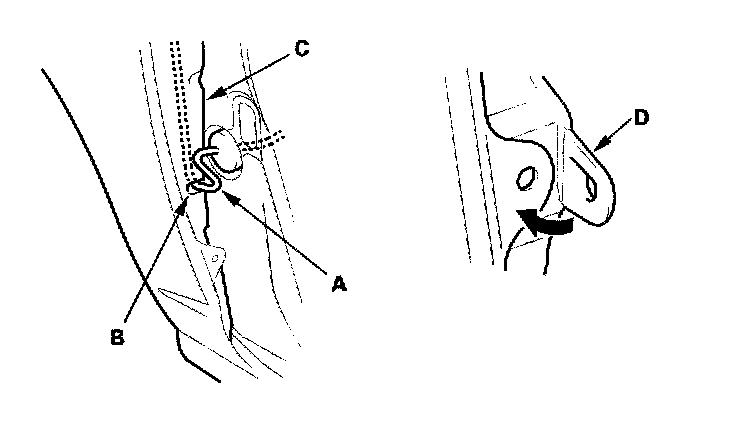

- Route the side turn signal light harness (A) through the notch (B) in the front fender fairing(C).
- Before installing the upper and lower clips, bend the mounting tabs (D) on the fender fairing into position as shown.
- Push the clips into place securely.
