Trunk / Liftgate Latch: Service and Repair

Hatch Latch Replacement

NOTE: Put on gloves to protect your hands.

1. Remove the hatch lower trim panel.

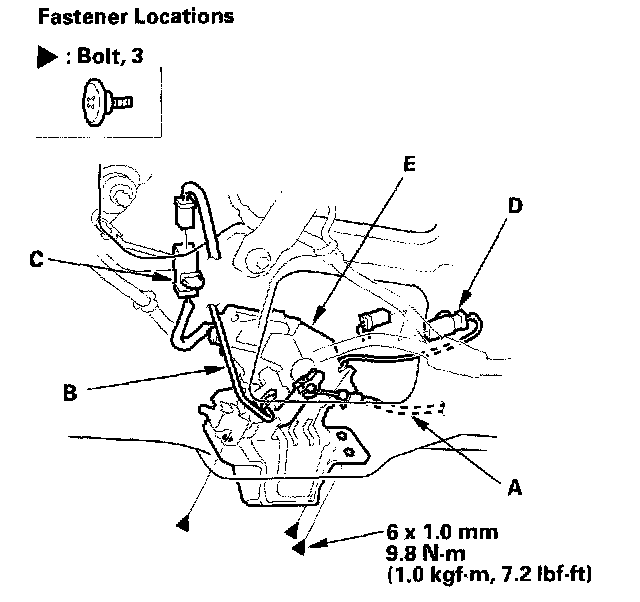

2. Disconnect the hatch opener cable (A), cylinder rod (B), hatch actuator connector (C), and hatch latch switch connector (D), and detach the hatch actuator connector and hatch latch switch connector from the hatch.
3. Remove the bolts, then pull the hatch latch (E) out, then remove it.
4. Install the latch in the reverse order of removal, and note these items:
- Make sure each connector is plugged in properly, and the rod and cable are connected properly.
- Make sure the cable actuates the latch before you close the hatch.
- Make sure the hatch opens properly and locks securely.
