Trunk / Liftgate Handle: Service and Repair

Hatch Handle Replacement

NOTE: Put on gloves to protect your hands.

1. Remove these items:
- Hatch lower trim panel
- Rear license trim panel

2. Remove the rear window wiper motor.

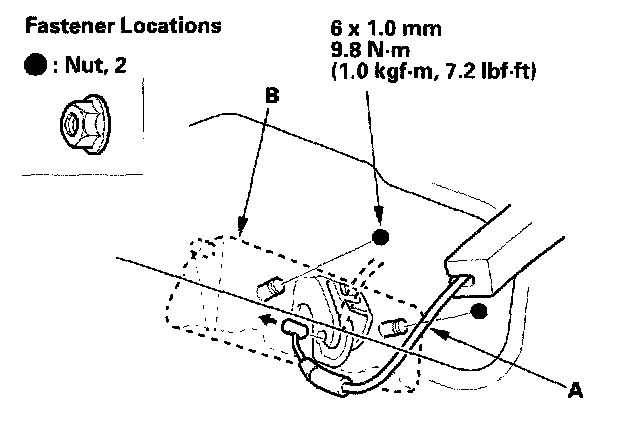

3. Disconnect the hatch opener cable (A) from the hatch handle (B), and remove the nuts.

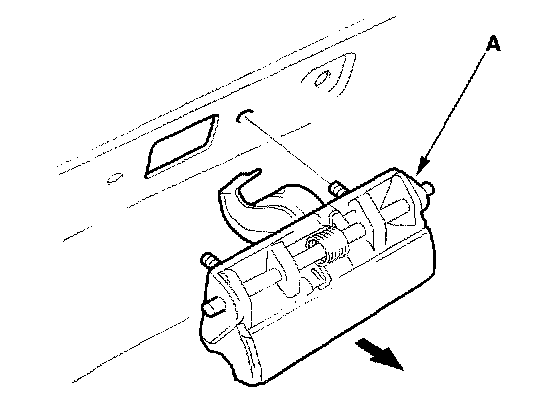

4. Pull out the hatch handle (A), then remove it.
5. Install the handle in the reverse order of removal, and note these items:
- Make sure the hatch opener cable is connected securely.
- Make sure the hatch opens properly.
