Power Trunk / Liftgate Lock Actuator: Testing and Inspection
Hatch Lock Actuator Test1. Open the hatch.

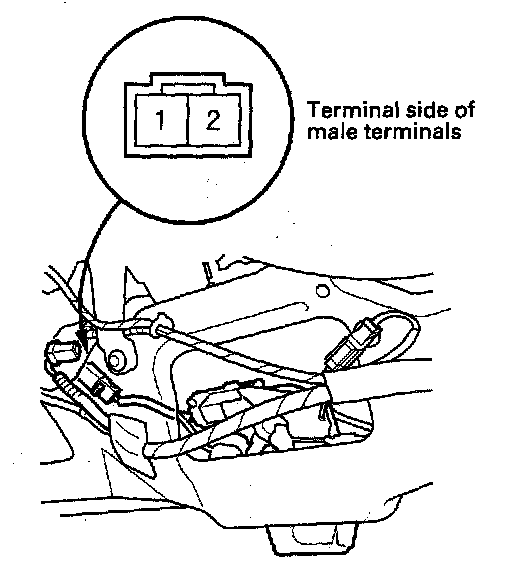

2. Remove the hatch lower trim panel.
3. Disconnect the 2P connector from the hatch lock actuator.

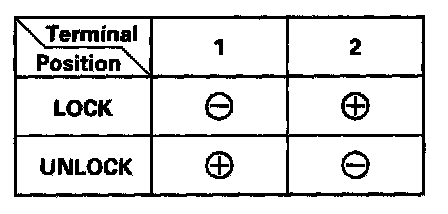

4. Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily.
