Trunk / Liftgate: Adjustments
Adjustment1. Remove the support strut from each side.
2. Remove the C-pillar trim from each side, and pull down the rear portion of the headliner. Take care not to bend the headliner excessively.
3. Remove the rear trim panel.
4. Slightly loosen each bolt and nut.
5. Adjust the hatch (A) alignment in the following sequence.
- Adjust the hatch hinges (B) right and left, as well as forward and rearward, using the elongated holes.
- Turn the hatch edge cushions (C), in or out as necessary, to make the hatch (D), fit flush with the body at the side edges.
- Adjust the fit between the hatch and hatch opening by moving the striker (D).
6. Tighten each bolt and nut securely.
7. Check that the hatch opens properly and locks securely.
8. Reinstall the support struts securely.
9. Reinstall all remaining removed parts.

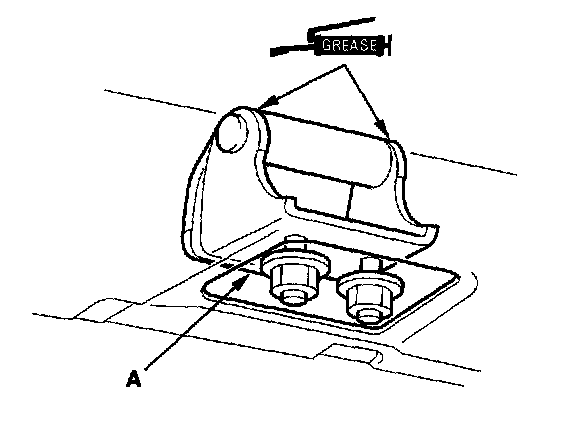

1O. Apply multipurpose grease to the pivot portion of the hatch hinges (A) as indicated by the arrows.
