Front Door Weatherstrip: Service and Repair
Door Weatherstrip ReplacementNOTE:
- Take care not to scratch the door.
- Use a clip remover to remove the clips.

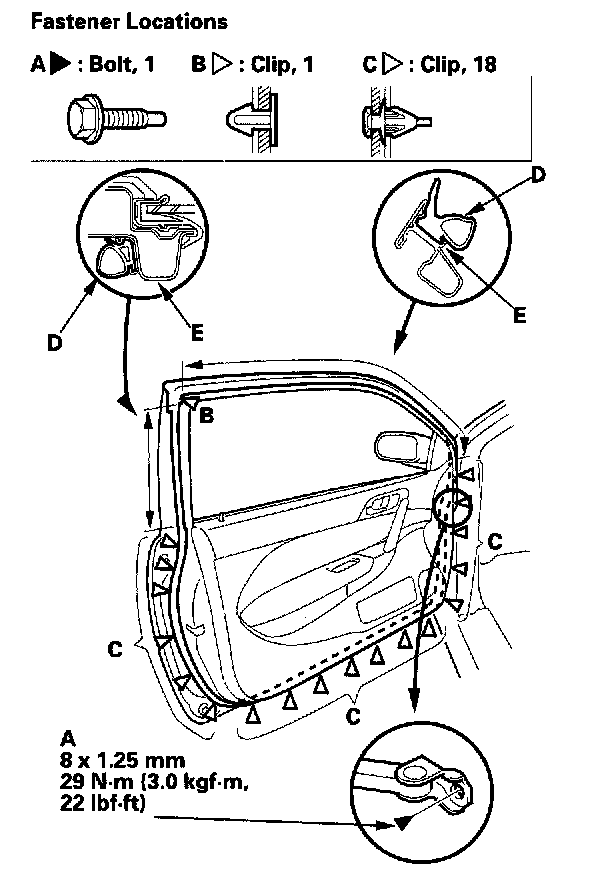

1. At the A-pillar, remove the door stop mounting bolt (A).
2. Detach the clips (B, C), then remove the door weatherstrip (D).
3. Install the weatherstrip in the reverse order of removal and note these items:
- Replace any damaged clips.
- Make sure the weatherstrip is installed in the holder (E) securely.
- Apply liquid thread lock to door stop mounting bolt before installation.
- Check for water leaks (see step 7 of Door Glass Adjustment).
- Test-drive and check for wind noise.
