Immobilizer System Check

System Check

1. Connect the HDS to the data link connector.
2. Turn the ignition switch ON (II).
3. Monitor the System Check in the Immobilizer Info with the HDS

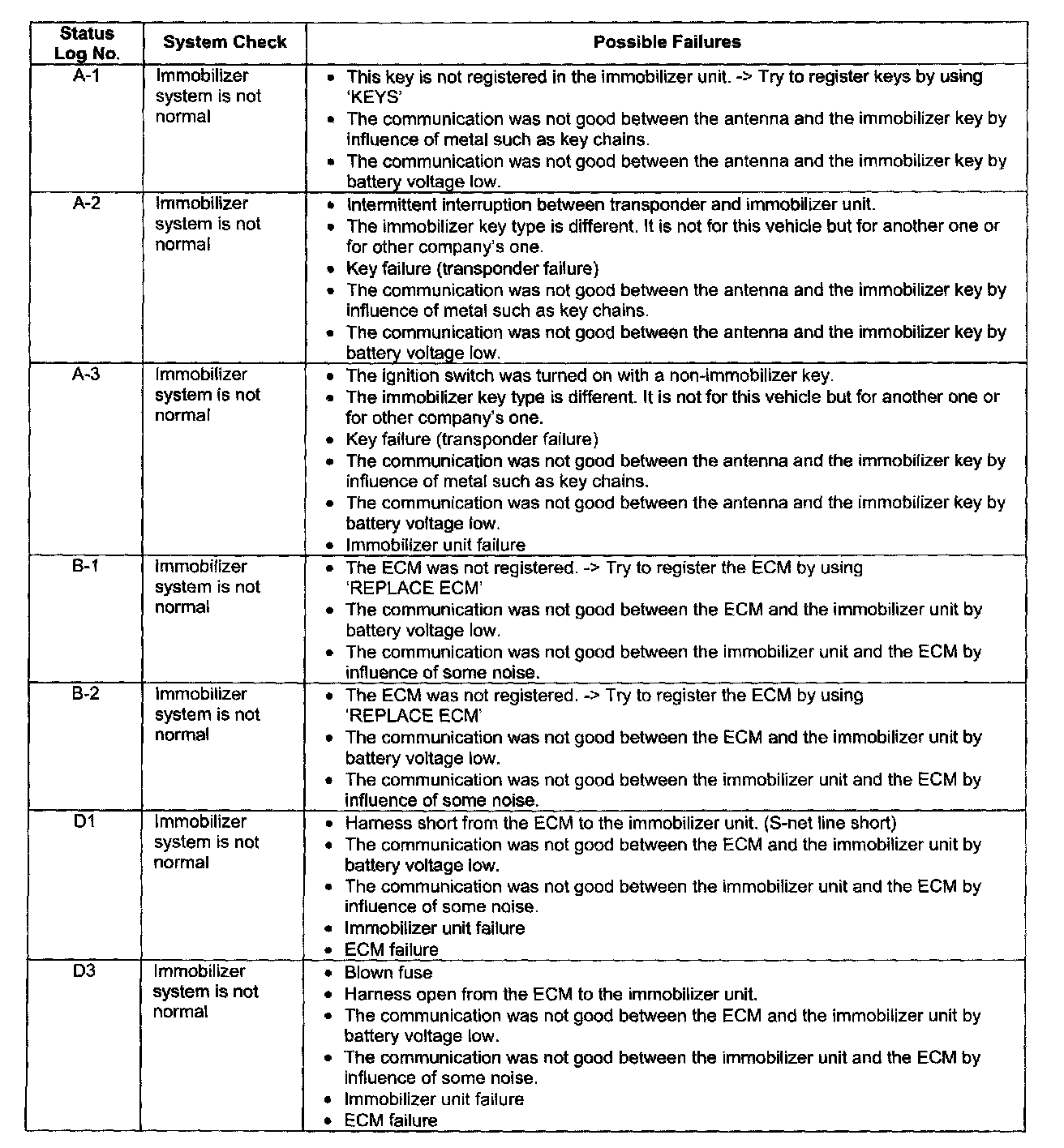

4. If the HDS displays the "Immobilizer system is normal," the immobilizer system is OK If the HDS displays any other messages, check as above:
