Home >> Honda >> 2005 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Keyless Entry >> Locations

Keyless Entry: Locations

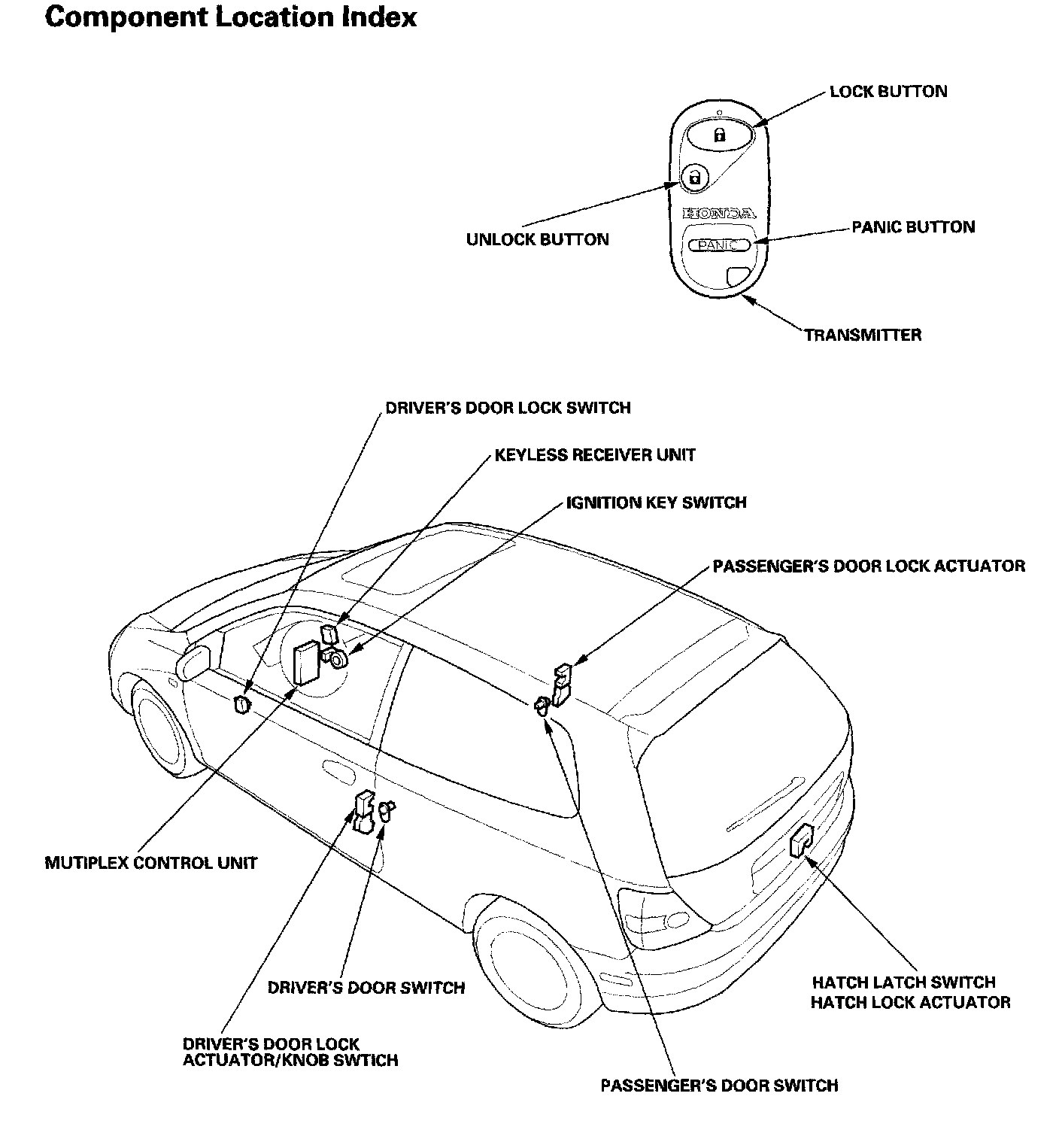

Keyless/Power Door Lock System - Component Location Index:

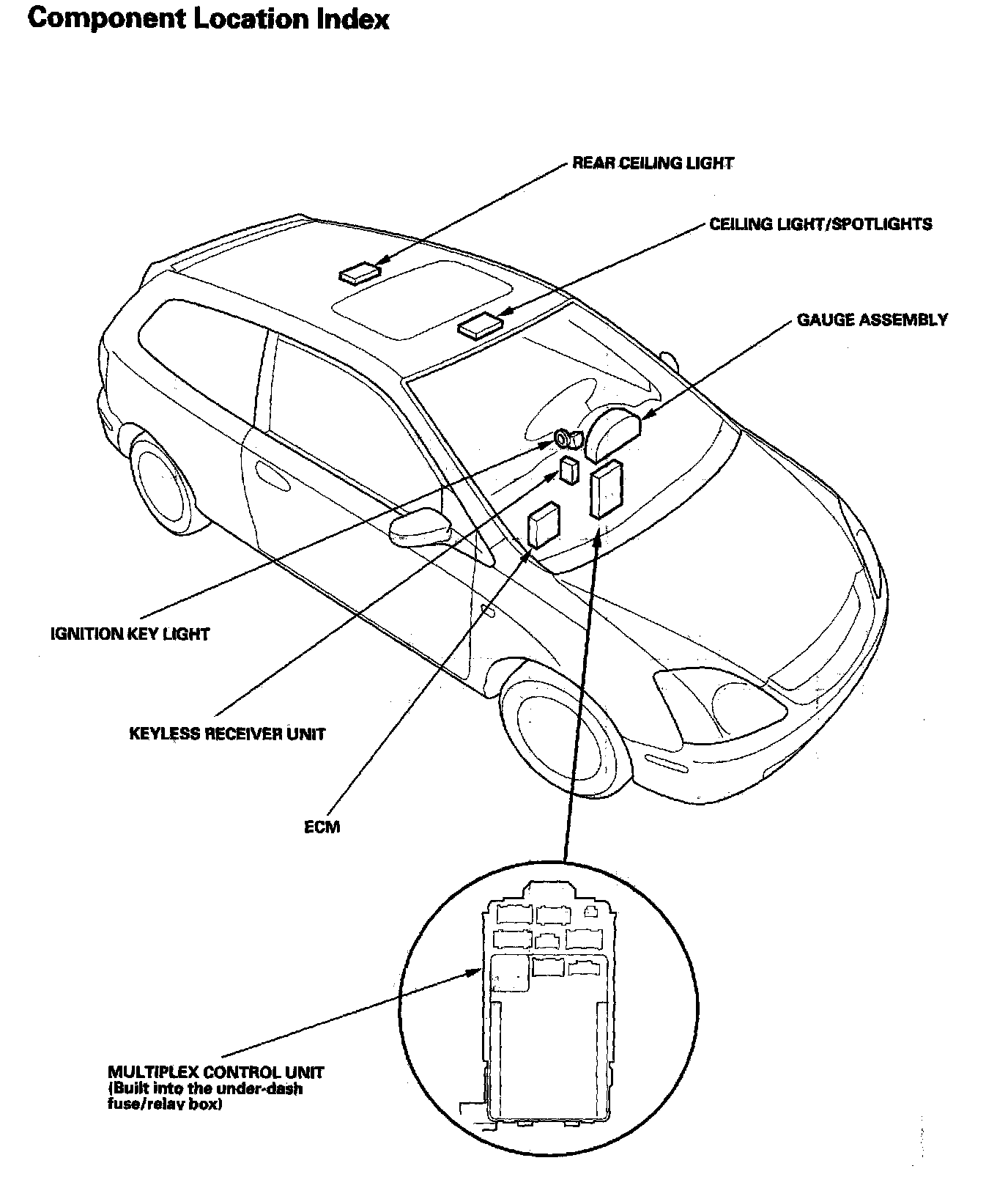

Multiplex Control System - Component Location Index:
