DTC 2-5

DTC 2-5: Short To Ground In Front Passenger's Airbag Inflator

Special Tools Required
- SRS inflator simulator 07SAZ-TB4011A
- SRS simulator lead F 07XAZ-SZ30100

1. Erase the DTC memory.
2. Turn the ignition switch ON (II), and check that the SRS indicator comes on for about 6 seconds and then goes off.

Does the SRS indicator stay on?

YES - Go to step 3.

NO - Intermittent failure, system is OK at this time. Go to Troubleshooting Intermittent Failures.

3. Turn the ignition switch OFF. Disconnect the battery negative cable, and wait for 3 minutes.

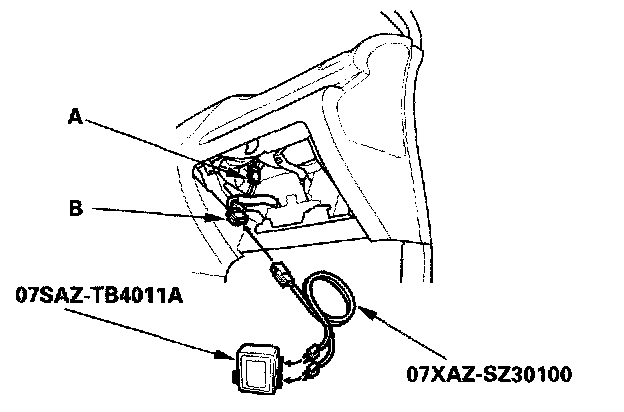

4. Disconnect the front passenger's airbag 4P connector (A) from dashboard wire harness B.
5. Connect the SRS inflator simulator (2 Ohm connectors) and simulator lead F to dashboard wire harness B.
6. Reconnect the battery negative cable.
7. Erase the DTC memory.
8. Read the DTC.

Is DTC 2-5 indicated?

YES - Go to step 9.

NO - Short to ground in the front passenger's airbag inflator; replace the front passenger's airbag.

9. Turn the ignition switch OFF. Disconnect the battery negative cable, and wait for 3 minutes.
10. Disconnect the driver's airbag 4P connector from the cable reel.
11. Disconnect both seat belt tensioner 2P connectors from the floor wire harness.
12. Disconnect SRS unit connector A (18P) from the SRS unit.
13. Disconnect the simulator lead from dashboard wire harness B.

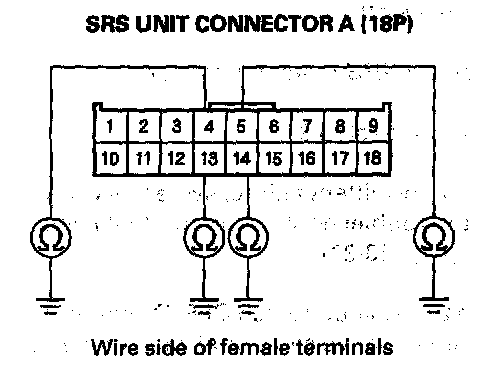

14. Check resistance between the No. 4 terminal of SRS unit connector A (18P) and body ground, the No. 13 terminal and body ground, the No. 5 terminal and body ground, and the No. 14 terminal and body ground. There should be an open circuit or at least 1 MOhm.

Is the resistance as specified?

YES - Faulty SRS unit; replace the SRS unit.

NO - Short to ground in dashboard wire harness B; replace dashboard wire harness B.
