Torque Specifications

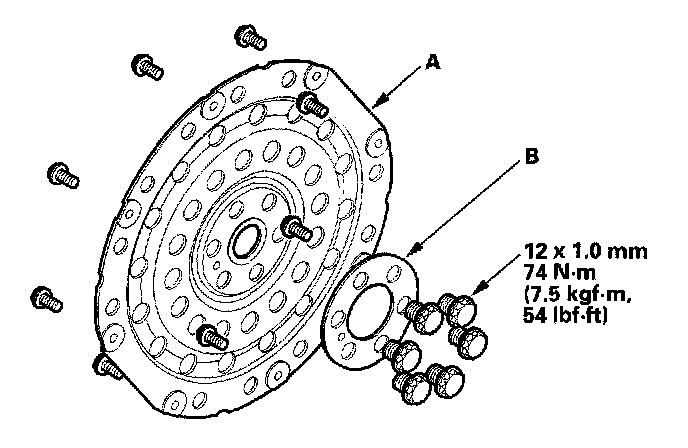

Drive Plate




Tighten the six bolts in a crisscross pattern.


Overhaul Specifications
Please refer to Automatic Transmission/Transaxle, Service and Repair, Procedures, Automatic Transmission, Overhaul (Transmission) and Overhaul (Differential).
