Manual Transmission/Transaxle

Transmission Exploded Views




Clutch Housing

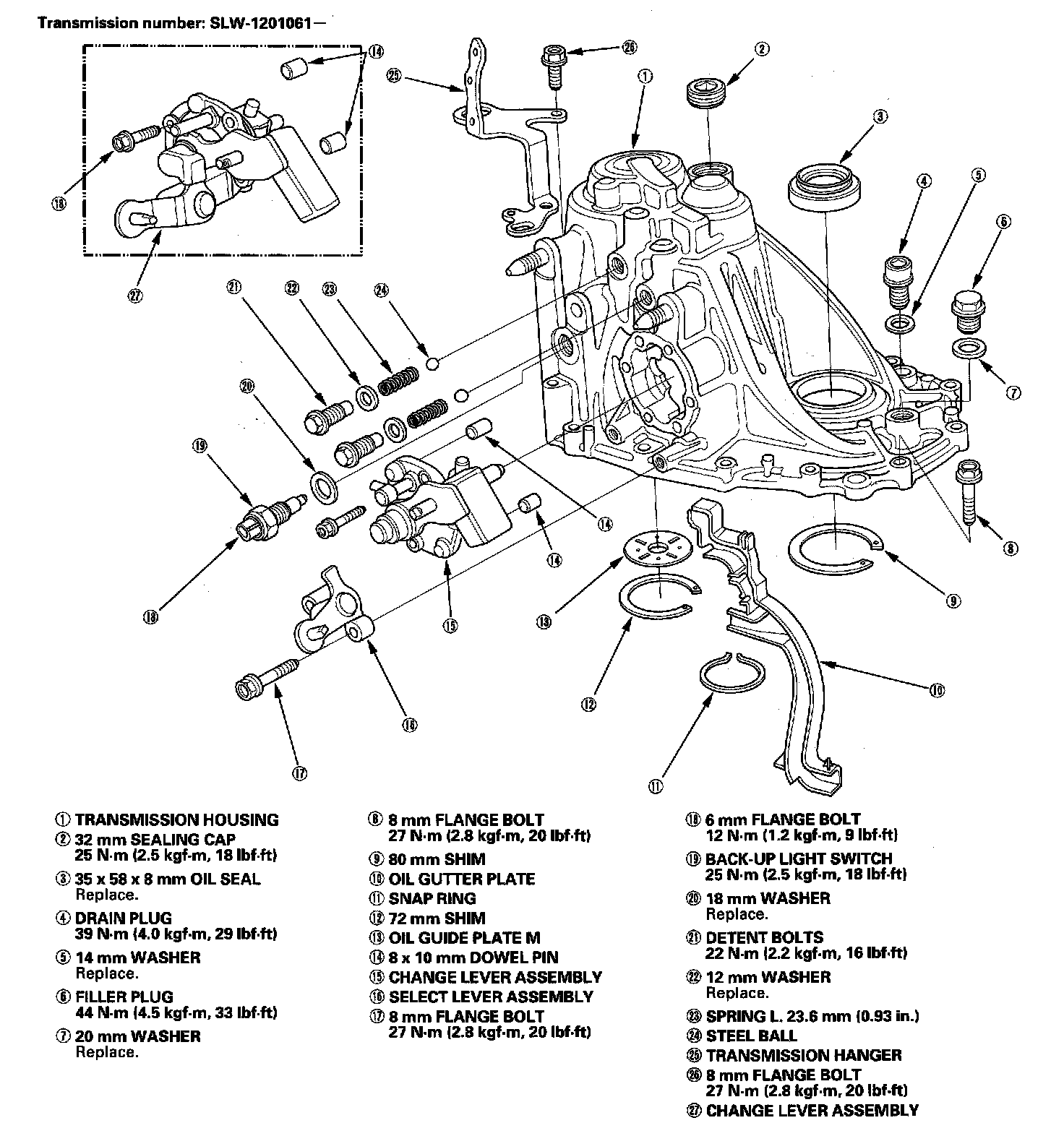

Transmission Housing

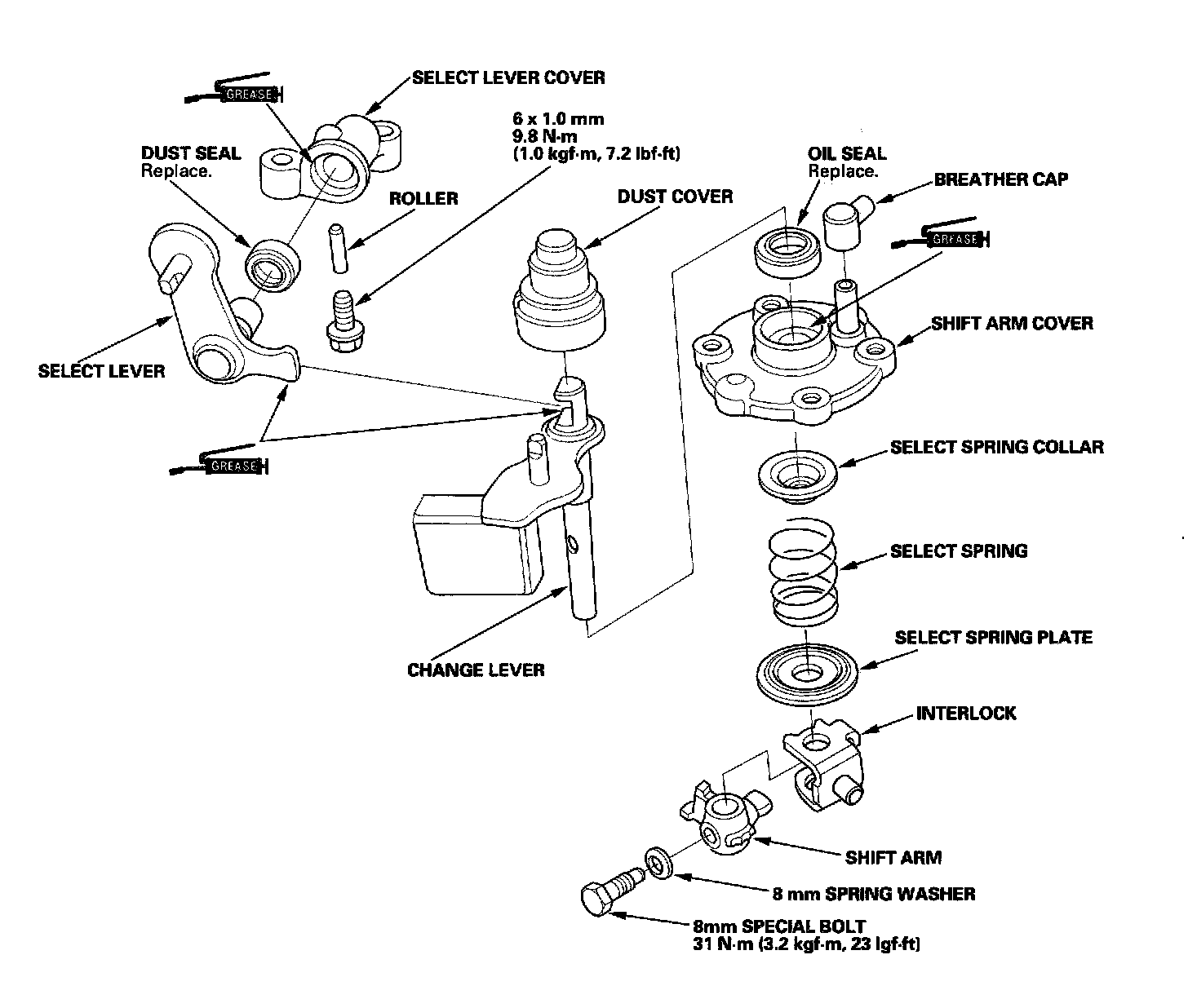

Change Lever




Change Lever

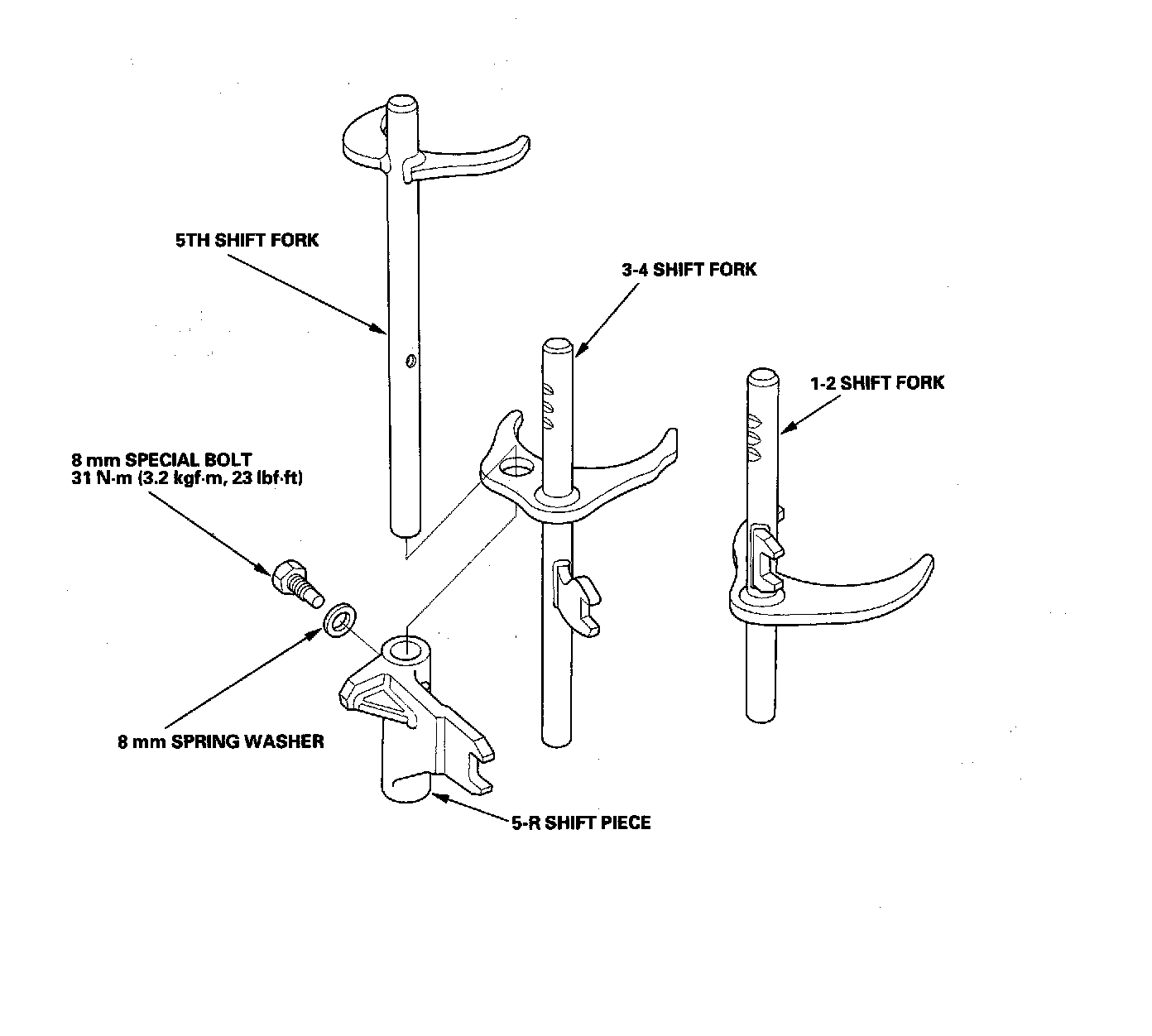

Shift Forks




Mainshaft

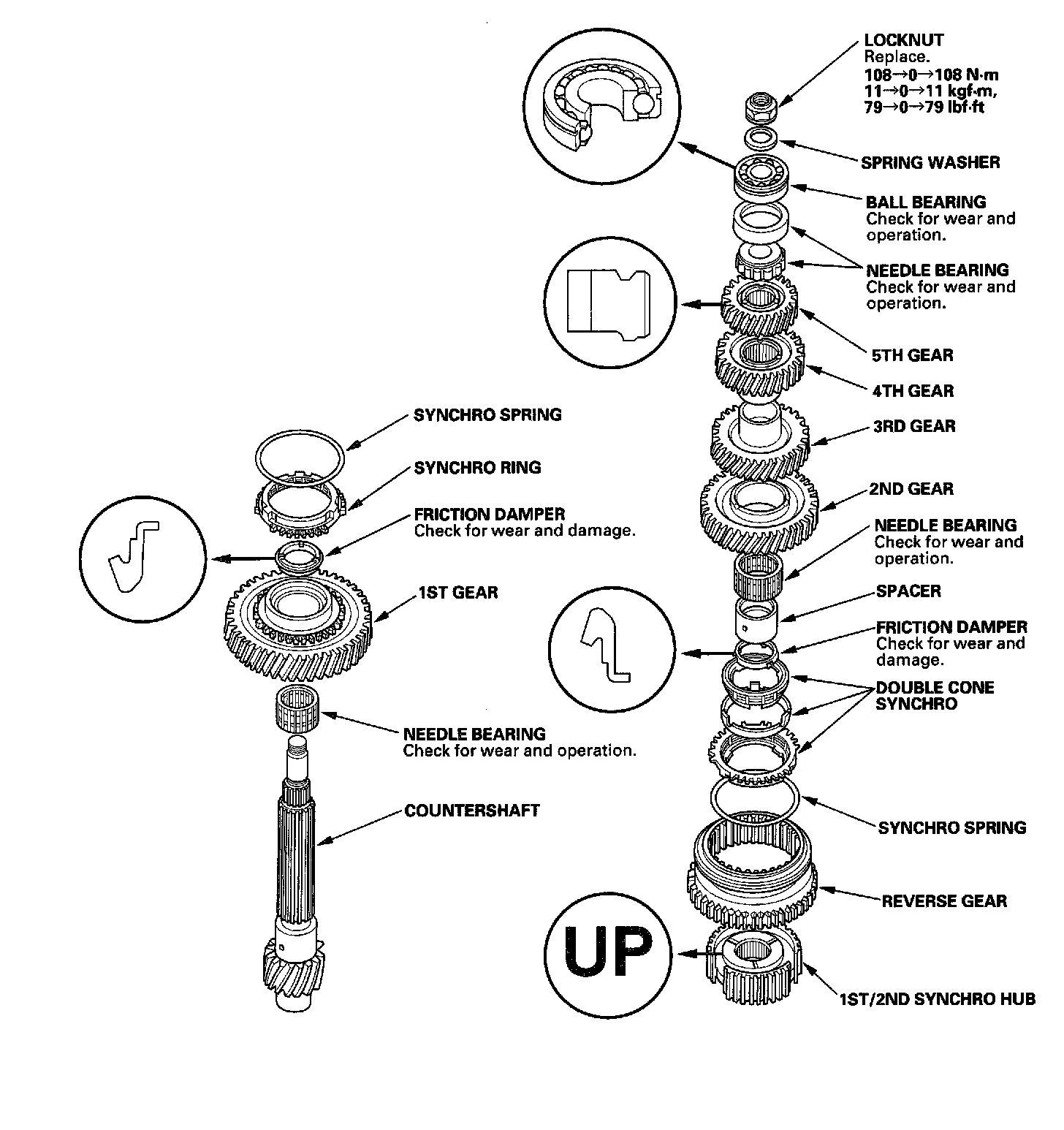

Countershaft




M/T Differential Component Location Index
