Transmission Speed Sensor, A/T

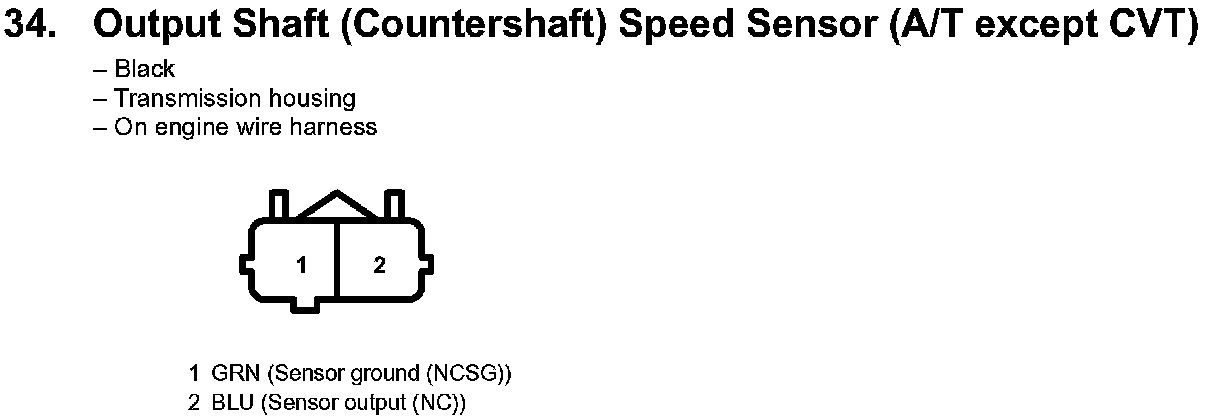

34. Output Shaft (Countershaft) Speed Sensor (A/T Except CVT):

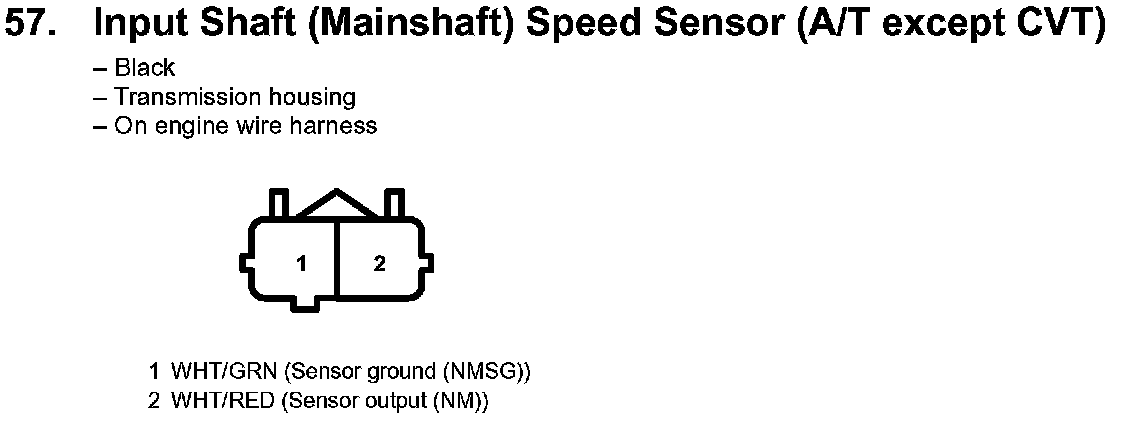

57. Input Shaft (Mainshaft) Speed Sensor (A/T Except CVT):
