Home >> Honda >> 2005 >> Civic L4-1.7L SOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> ECM/PCM

ECM/PCM

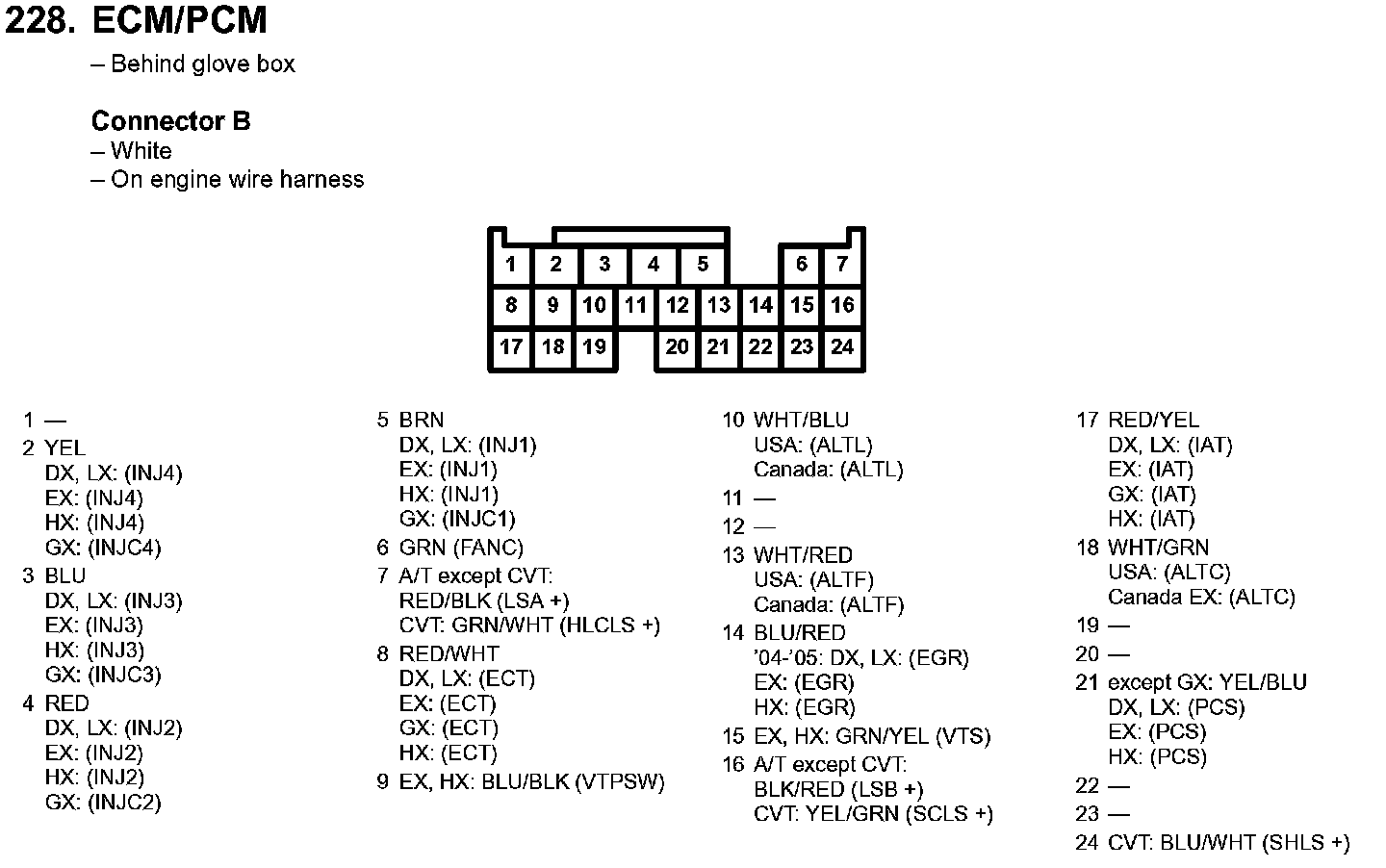

228. ECM/PCM Part 1:

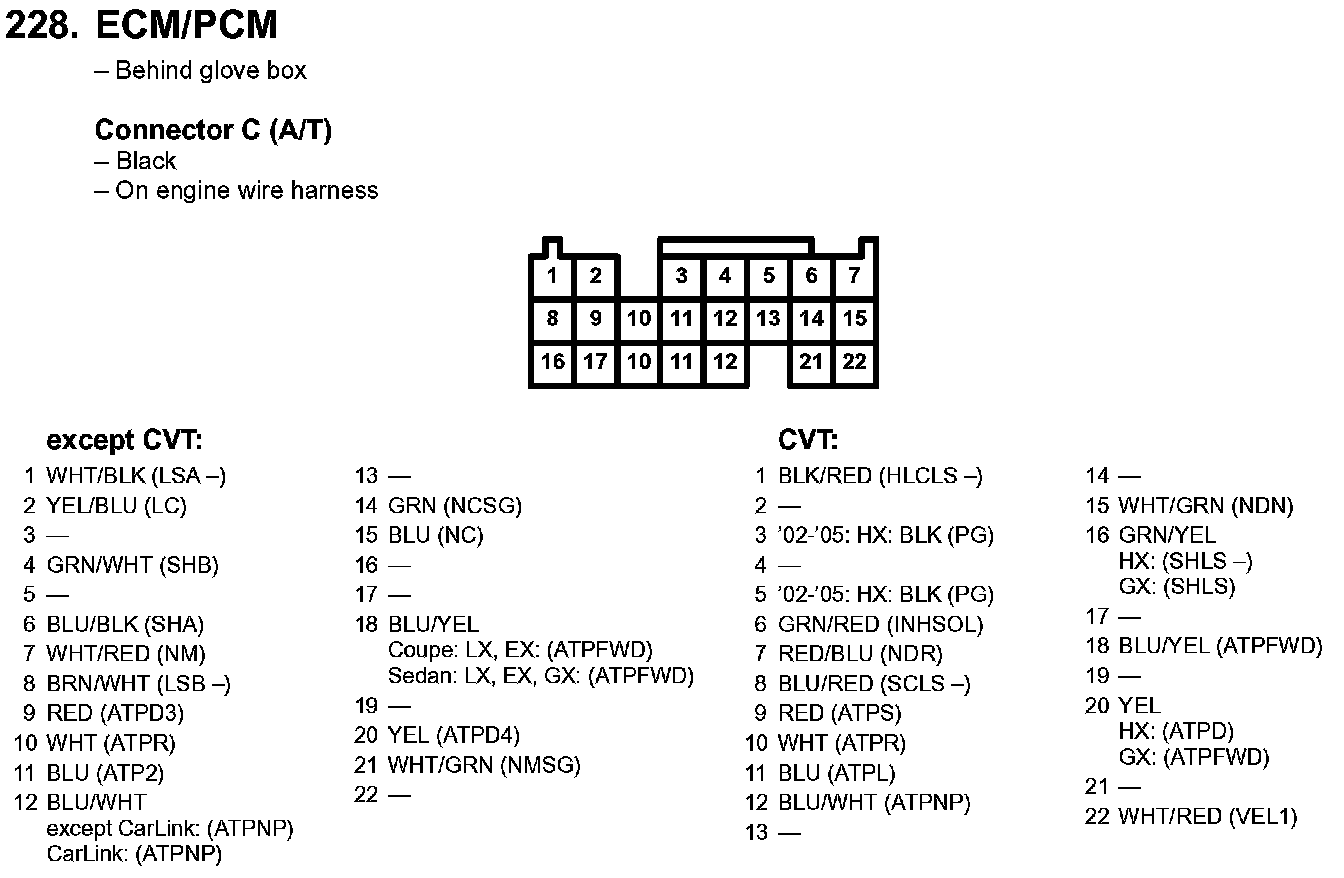

228. ECM/PCM Part 2:

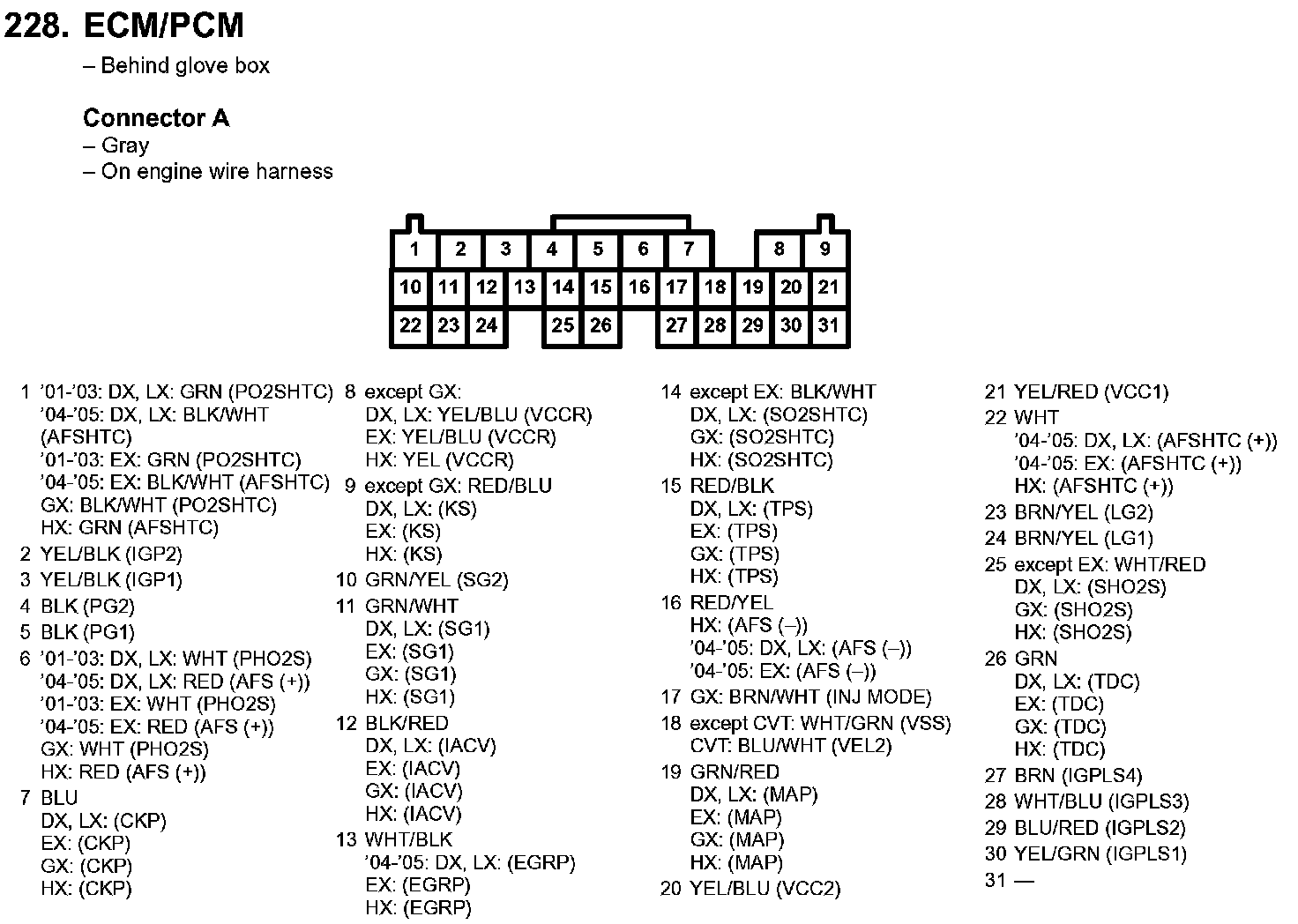

228. ECM/PCM Part 3:

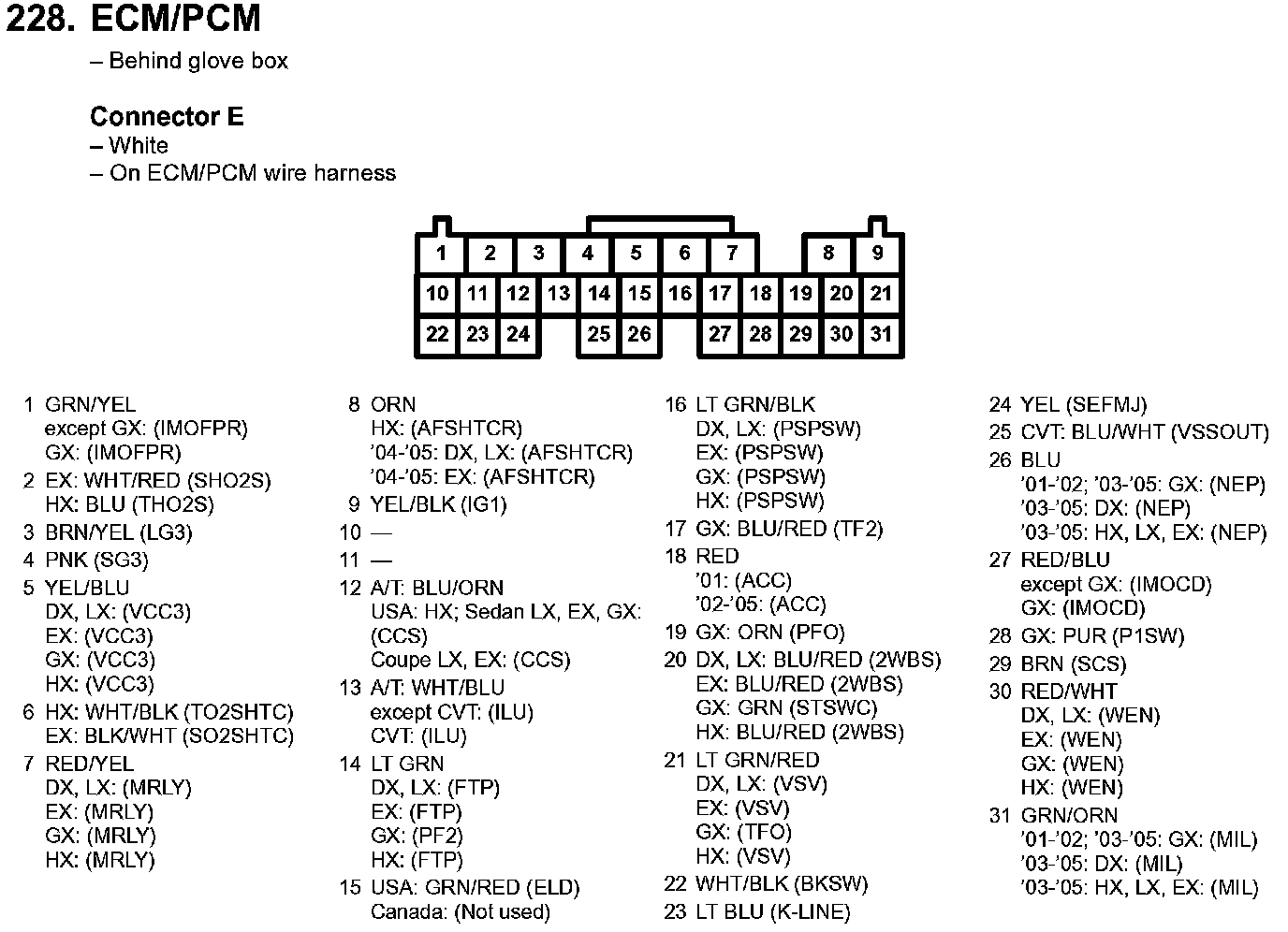

228. ECM/PCM Part 4:
