Home >> Honda >> 2005 >> Civic L4-1.7L SOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Cruise Control Switch

Cruise Control Switch

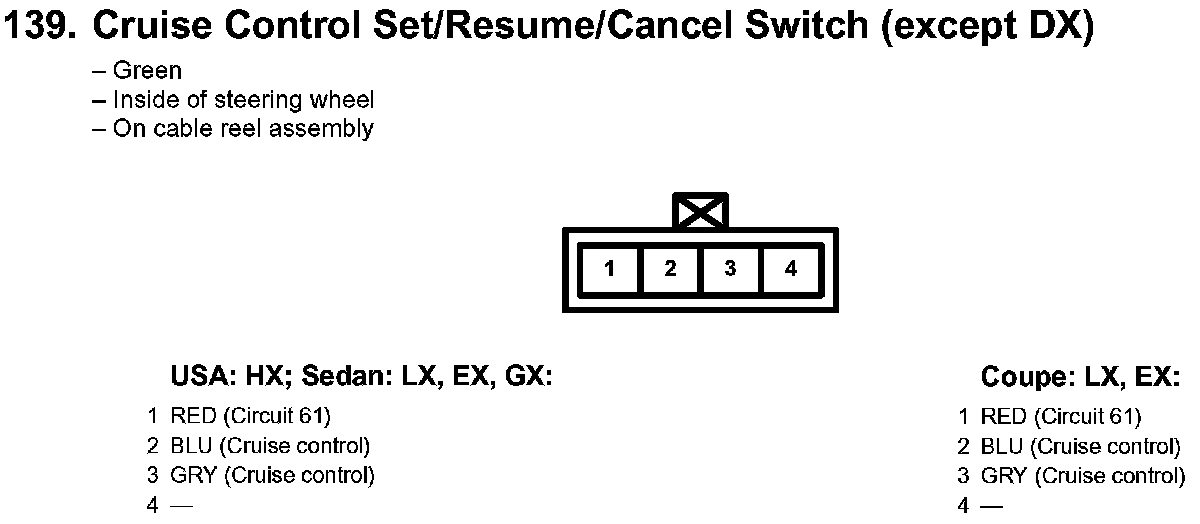

139. Cruise Control Set/Resume/Cancel Switch (except DX):

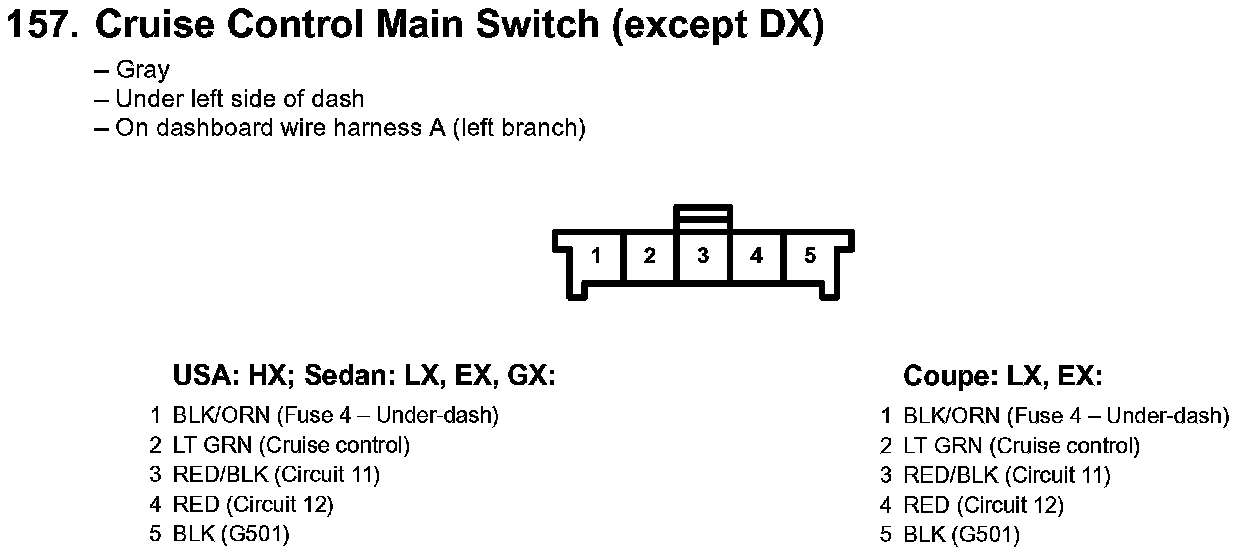

157. Cruise Control Main Switch (except DX):
