Home >> Honda >> 2005 >> Civic L4-1.7L CNG >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> Views 76-100 >> 92

Views 76-100: 92

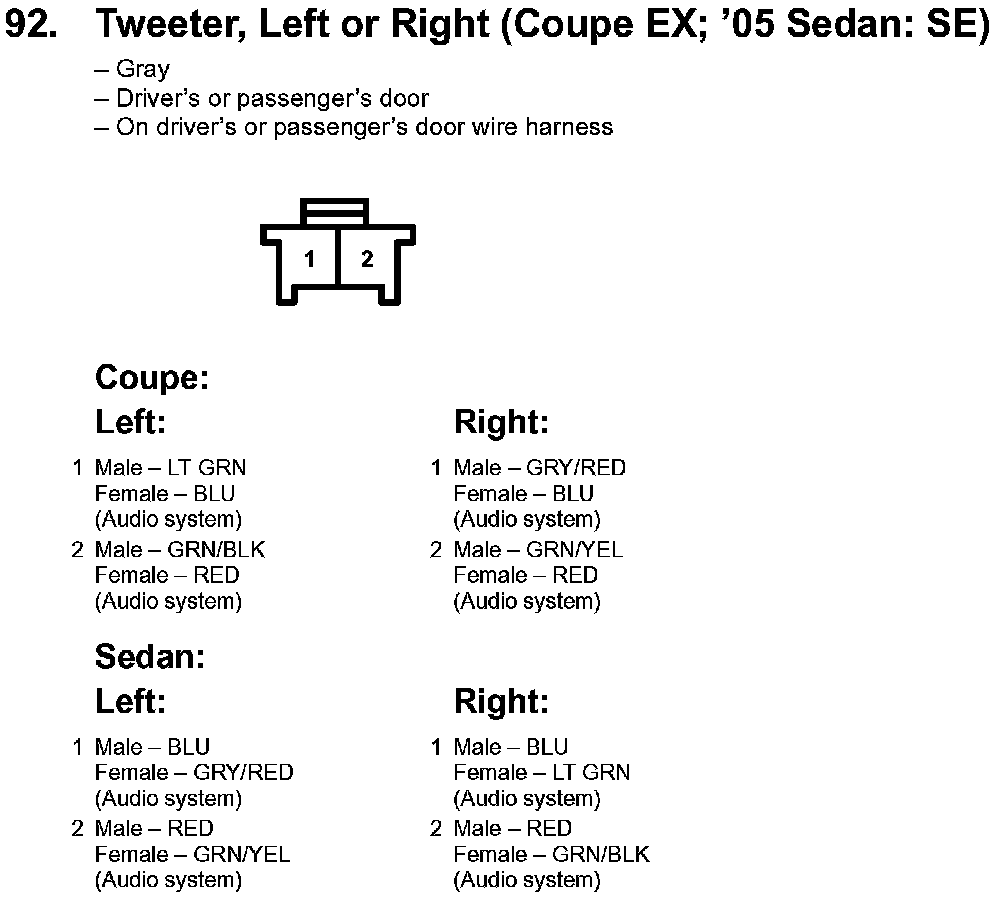

92. Tweeter, Left Or Right (Coupe EX; '05 Sedan: SE):
