Views 76-100: 86

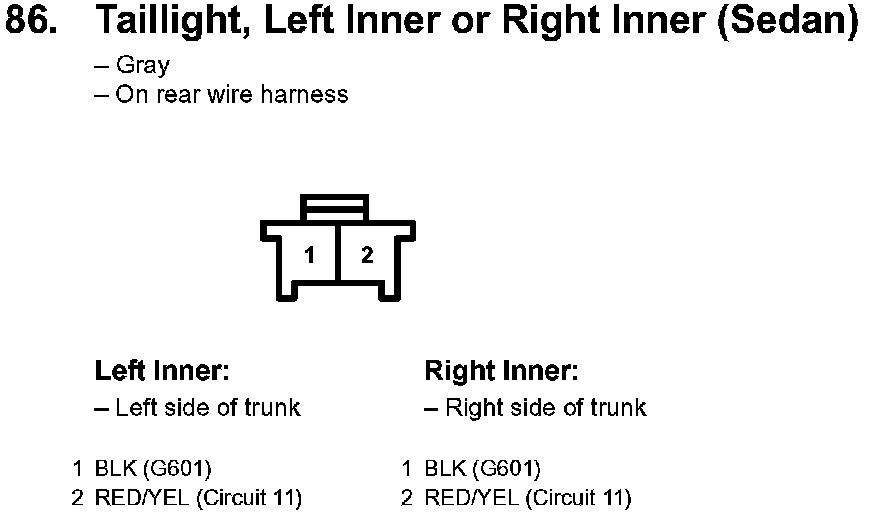

86. Tailights, Left Inner Or Right Inner (Sedan):

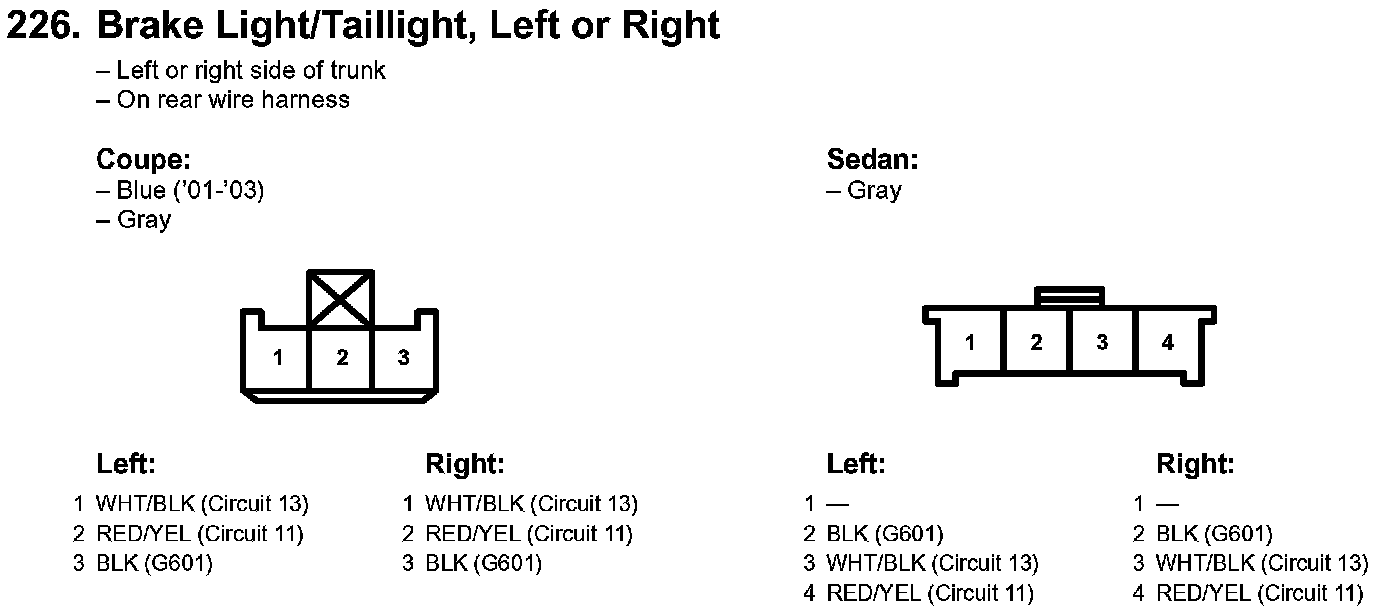

226. Brake Light/Taillight, Left Or Right:
