81
Views 76-100: 81

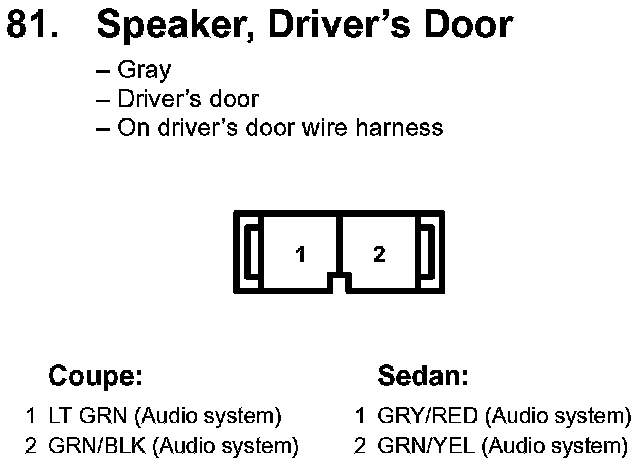

81. Speaker, Driver's Door:
82. Speaker, Front Passenger's Door (Sedan):
84. Speaker, Passenger's Door (Coupe):
92. Tweeter, Left Or Right (Coupe EX; '05 Sedan: SE):
