Home >> Honda >> 2005 >> Civic L4-1.7L CNG >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> Views 176-200 >> 191

Views 176-200: 191

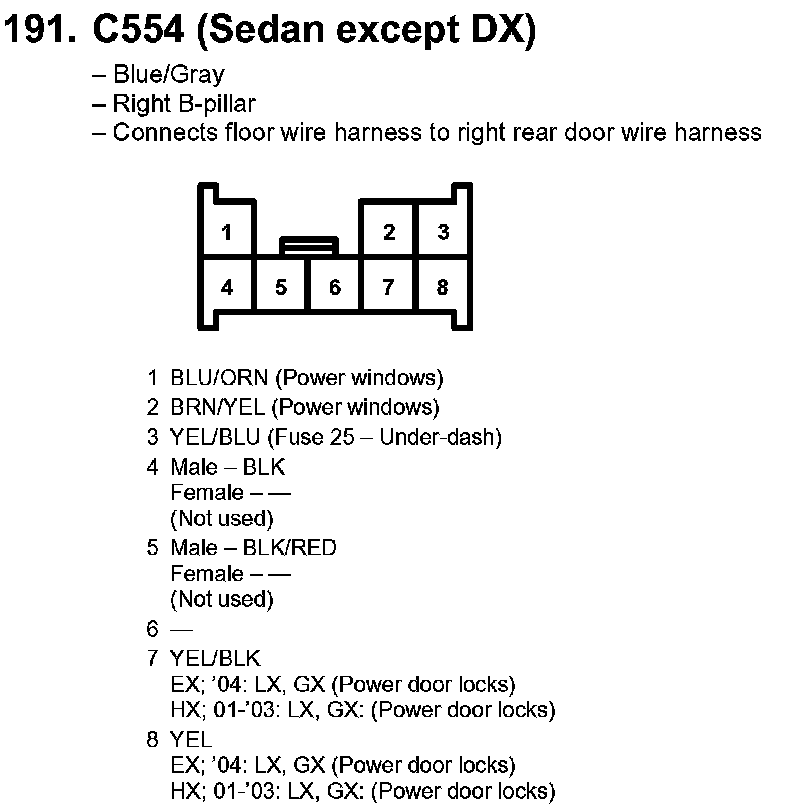

191. C554 (Sedan Except DX):
