Home >> Honda >> 2005 >> Civic L4-1.7L CNG >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> Views 1-25 >> 9

Views 1-25: 9

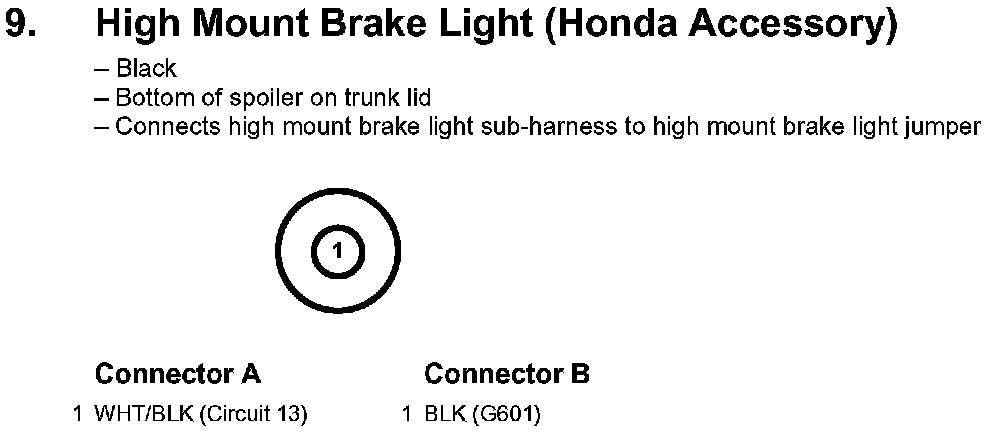

9. High Mount Brake Light (Honda Accessory):

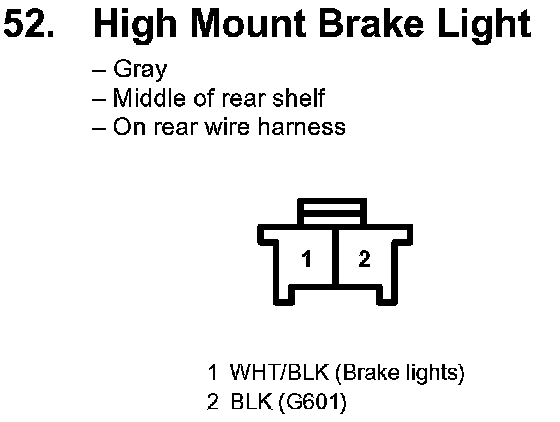

52. High Mount Brake Light:
