Home >> Honda >> 2005 >> Civic L4-1.3L Hybrid >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Torque Specifications >> Crankshaft Main Bearings

Crankshaft Main Bearings

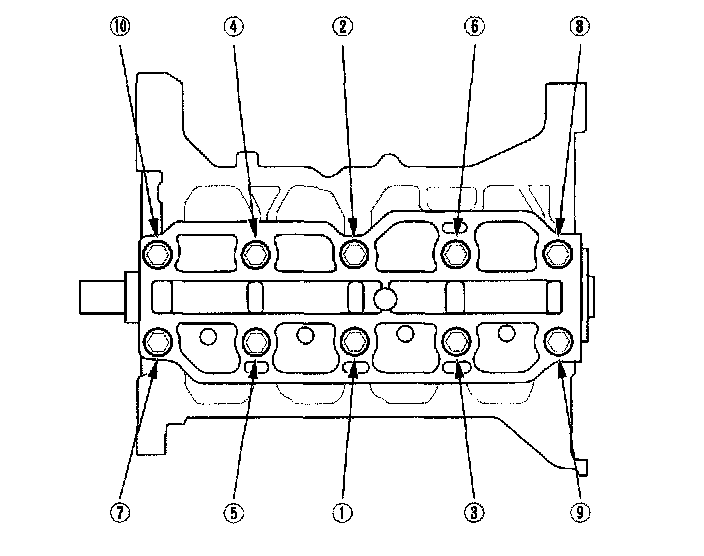

Tighten the bearing cap bridge bolts in sequence to 25 Nm (2.5 kgf-m, 18 ft. lbs.)

Tighten the bearing cap bolts an additional 40°
