Home >> Honda >> 2005 >> Civic L4-1.3L Hybrid >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Clutch, M/T >> System Specifications >> Torque Specifications

Torque Specifications

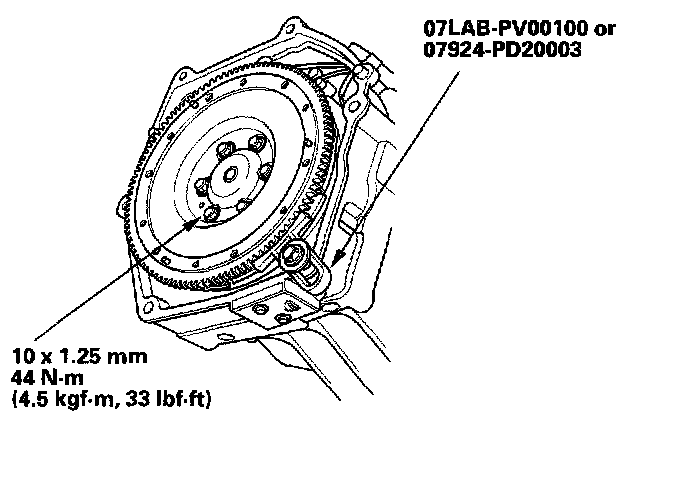

Install the special tool, then torque the flywheel mounting bolts in a crisscross pattern in several steps.
