Ignition Coil: Service and Repair

Ignition Coil Removal/Installation

1. Remove the engine cover, then remove the resonator.

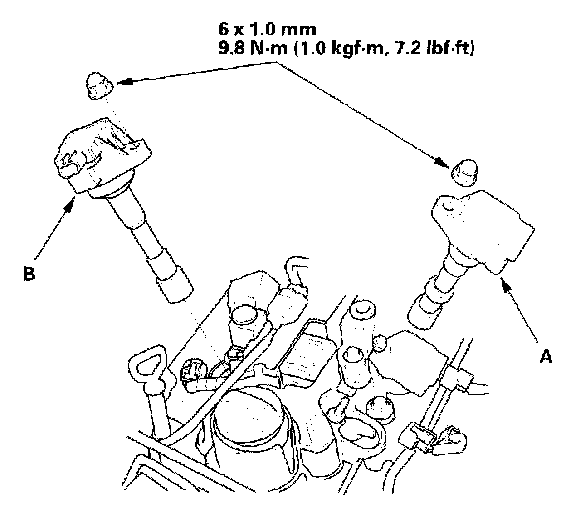

2. Disconnect the ignition coil connectors, then remove the front ignition coils (A) and rear ignition coils (B).
3. Install the ignition coils in the reverse order of removal.
