Computers and Control Systems: Locations

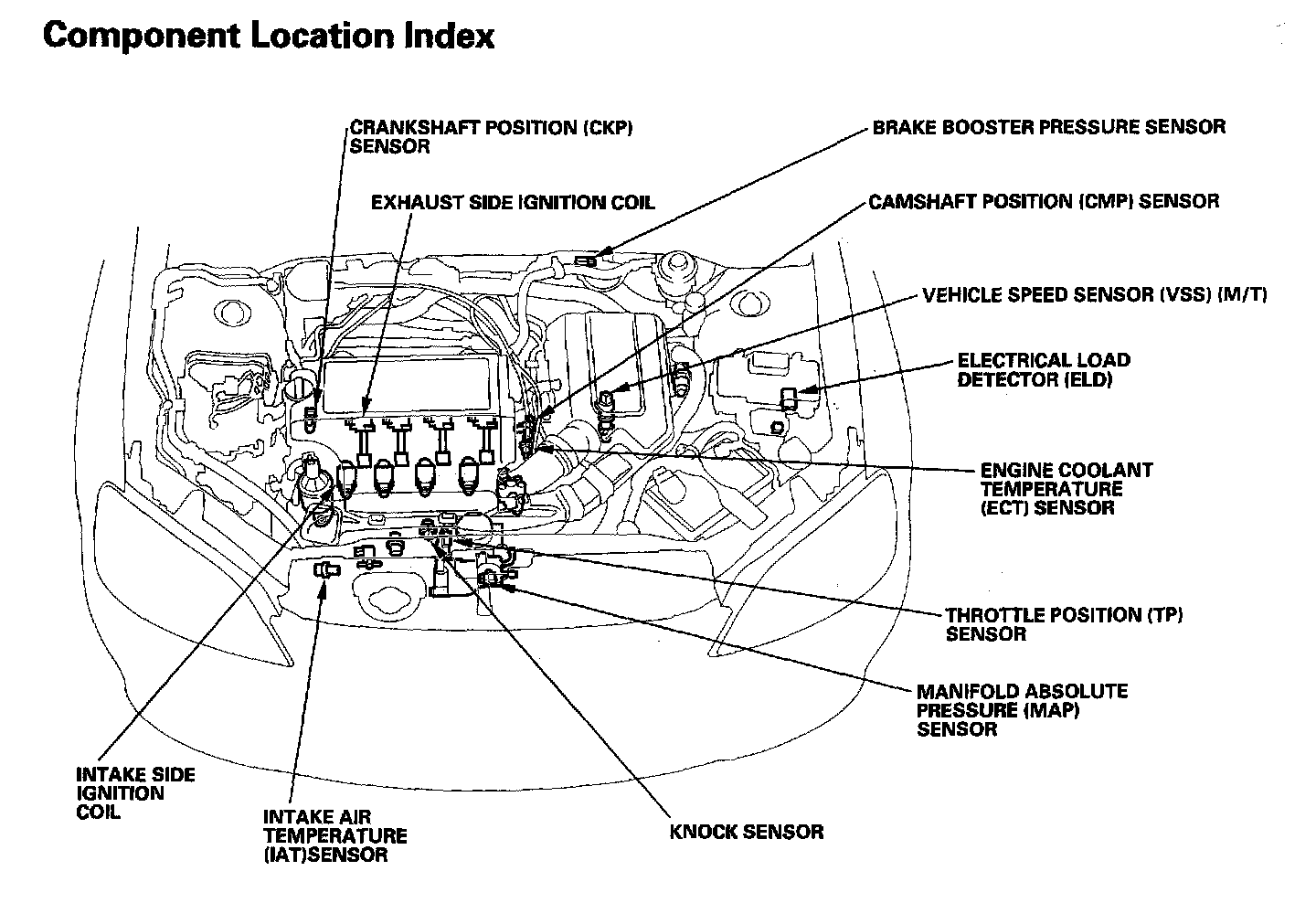

PGM-FI System - Component Location Index:

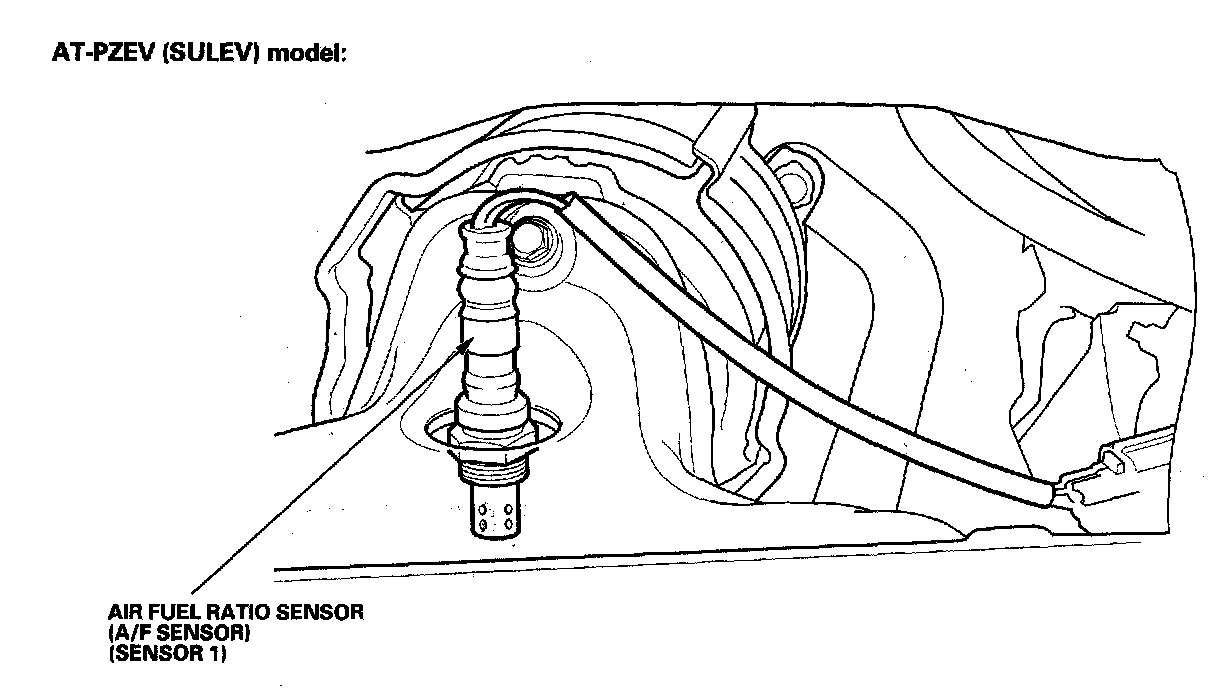

PGM-FI System - Component Location Index AT-PZEV (SULEV) Model:

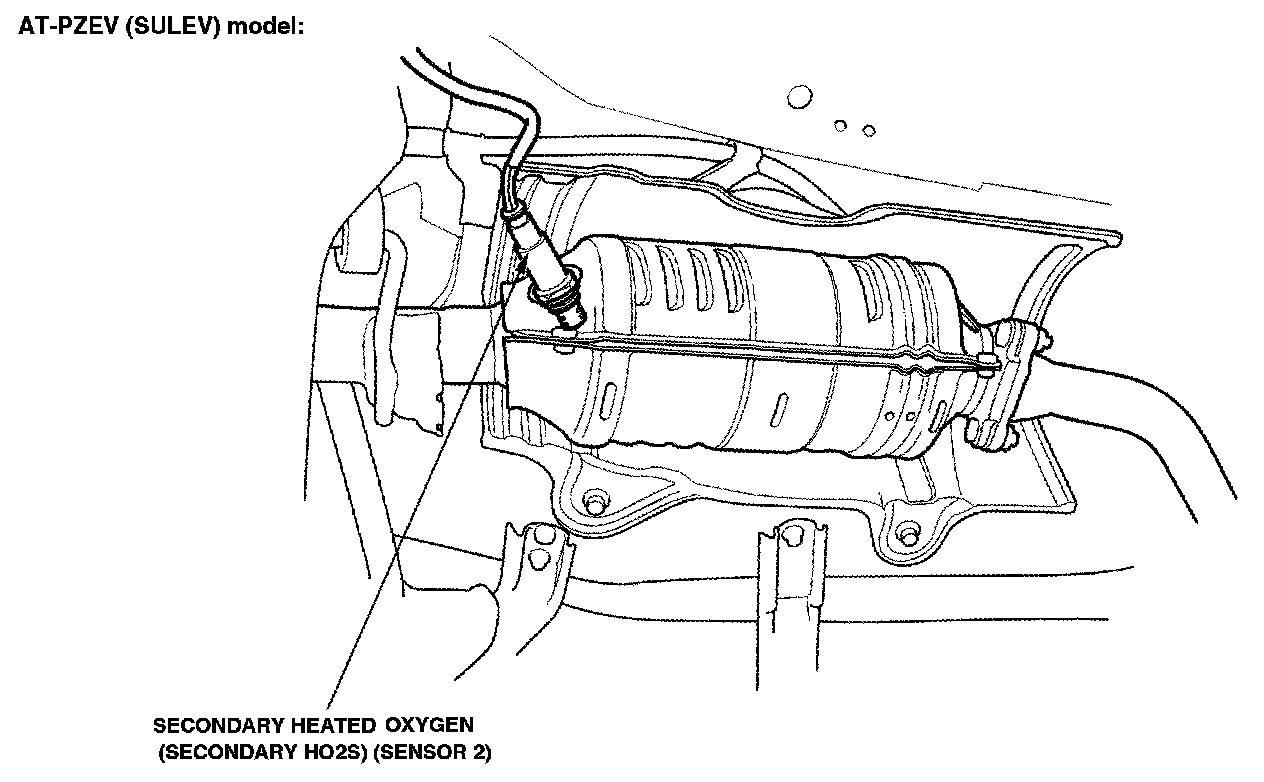

PGM-FI System - Component Location Index AT-PZEV (SULEV) Model:

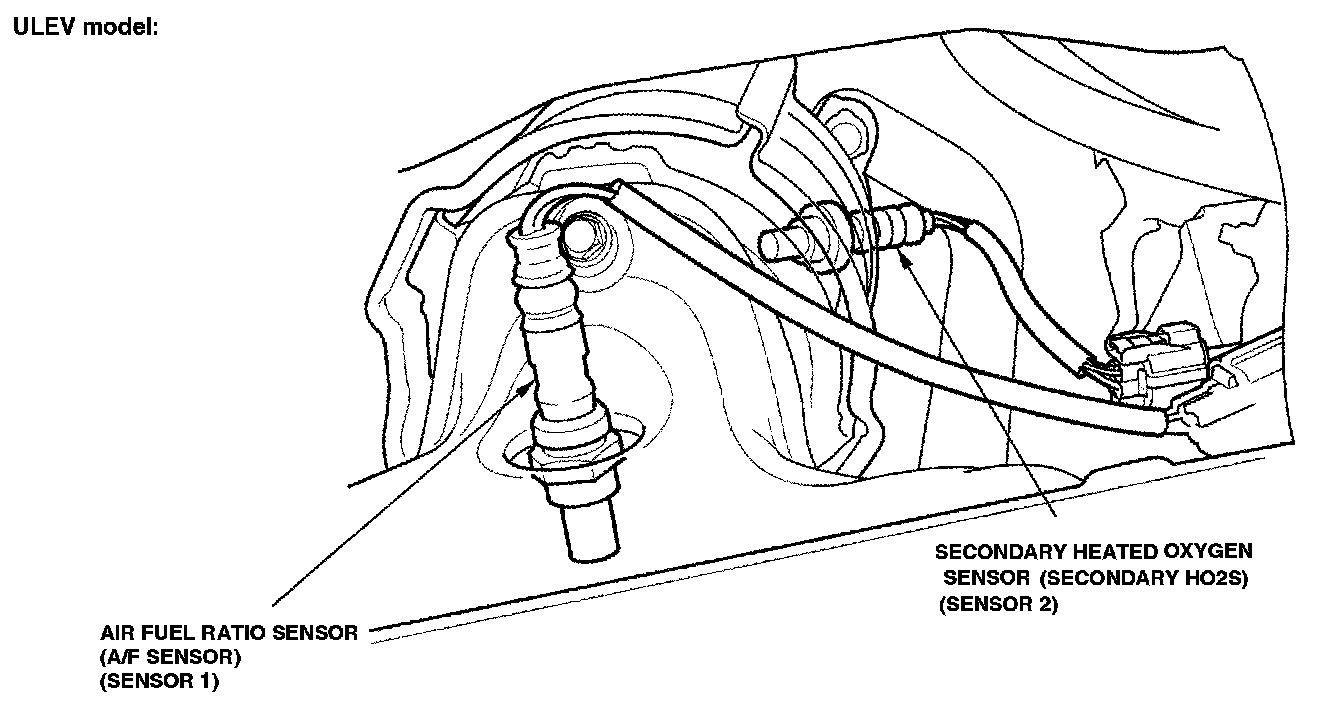

PGM-FI System - Component Location Index ULEV Model:

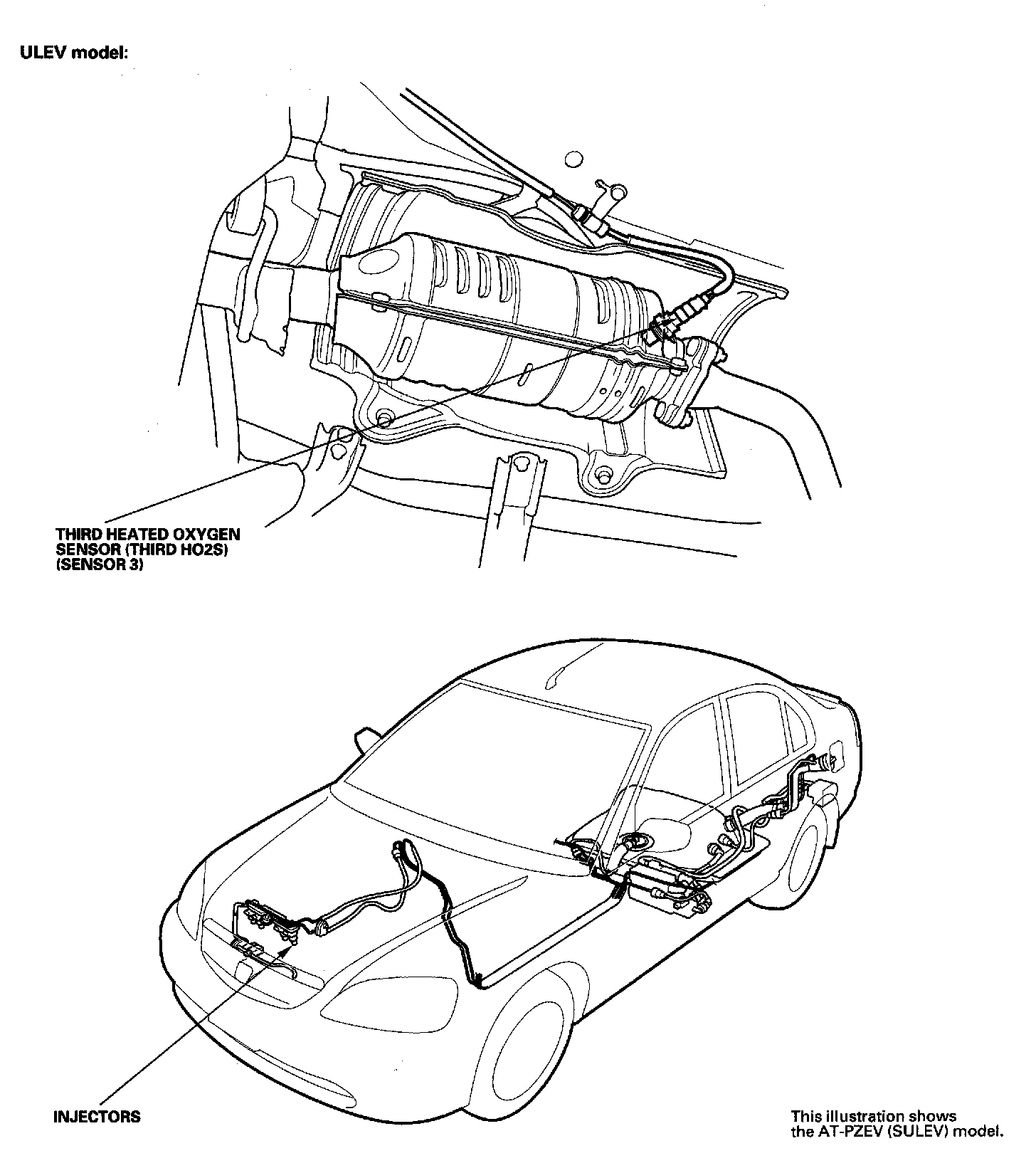

PGM-FI System - Component Location Index ULEV Model:

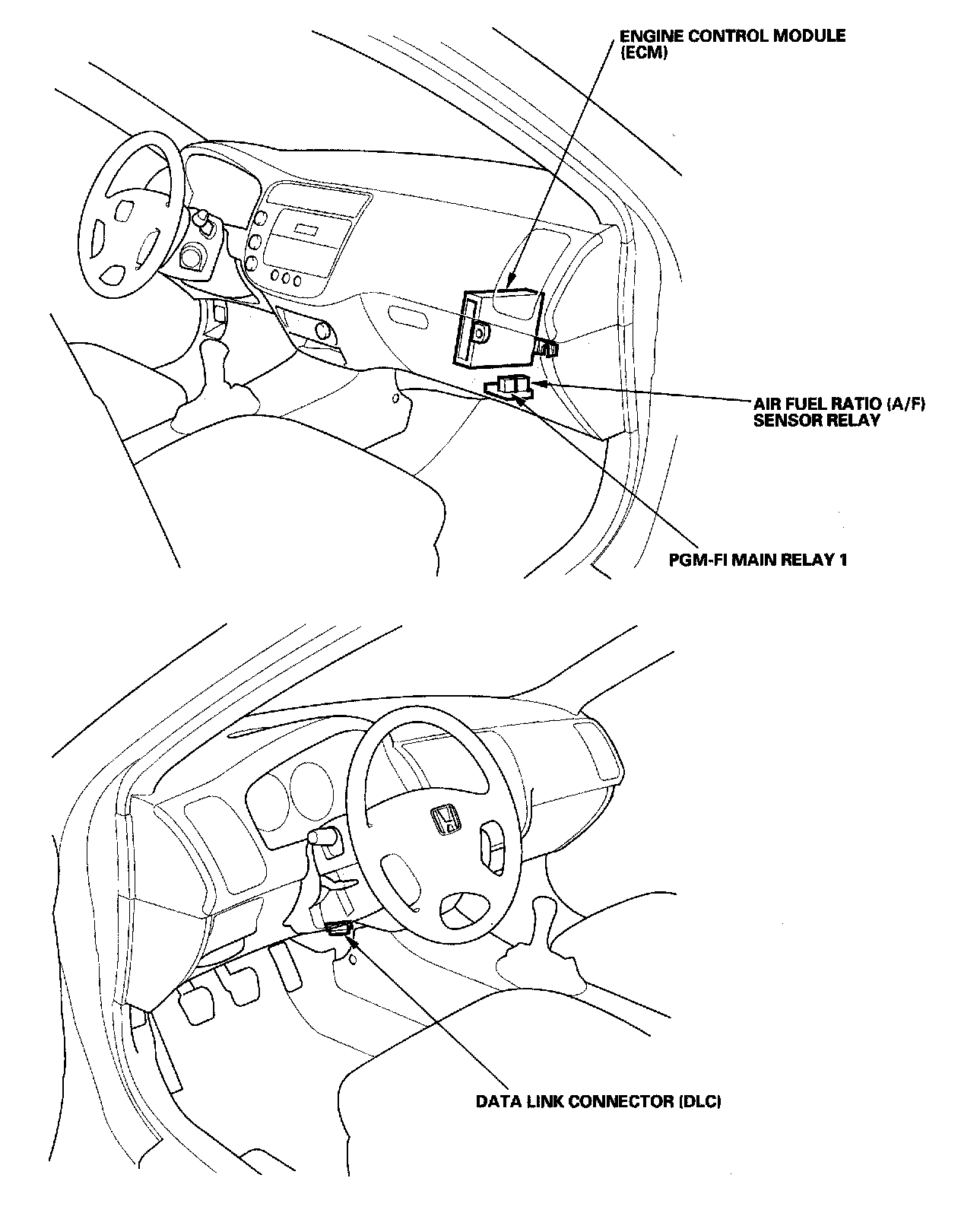

PGM-FI System - Component Location Index:
