Fuel Tank Pressure Sensor: Locations

EVAP System - Component Location Index AT-PZEV (SULEV) Model:

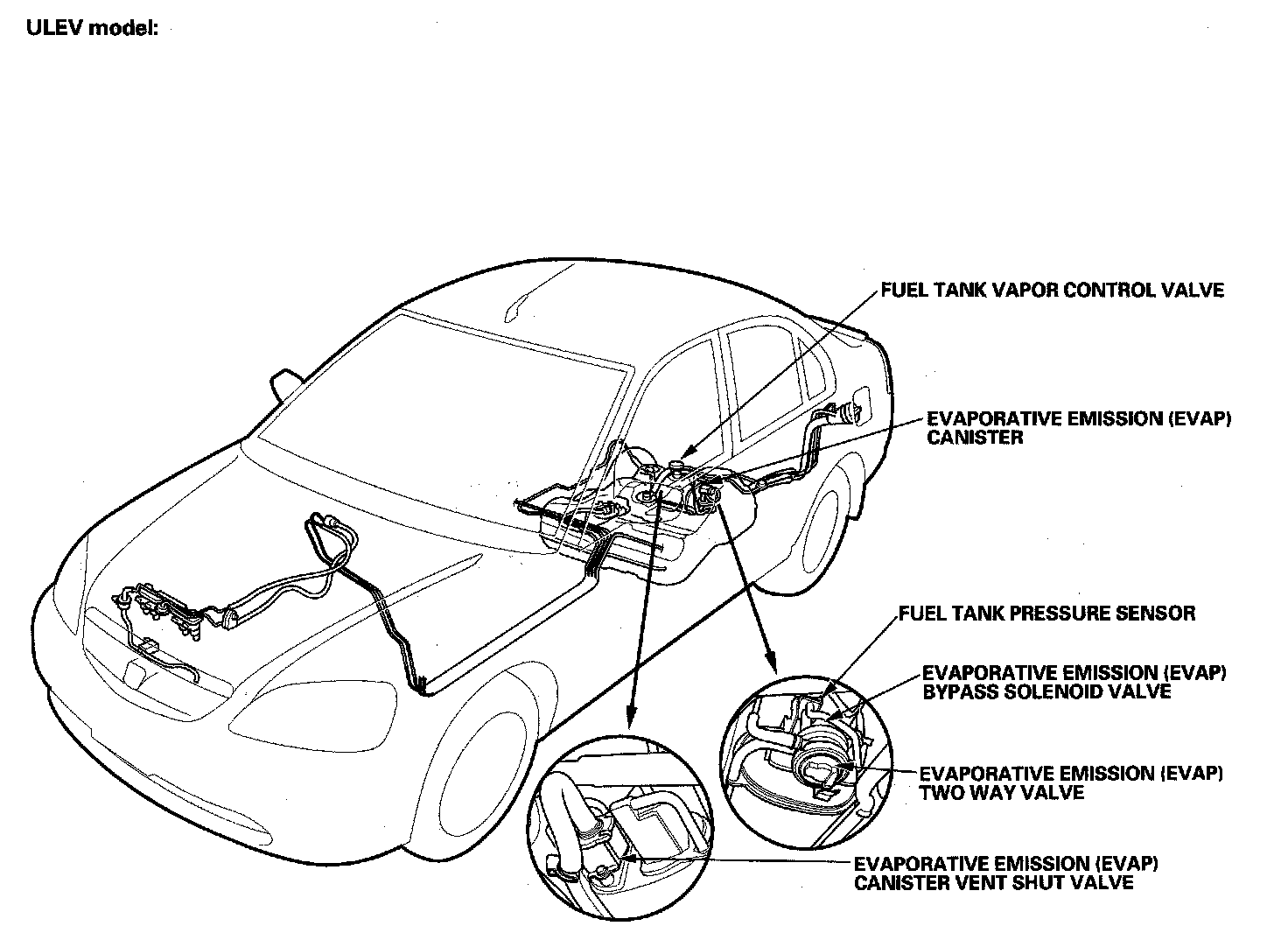

EVAP System - Component Location Index AT-PZEV (ULEV) Model:

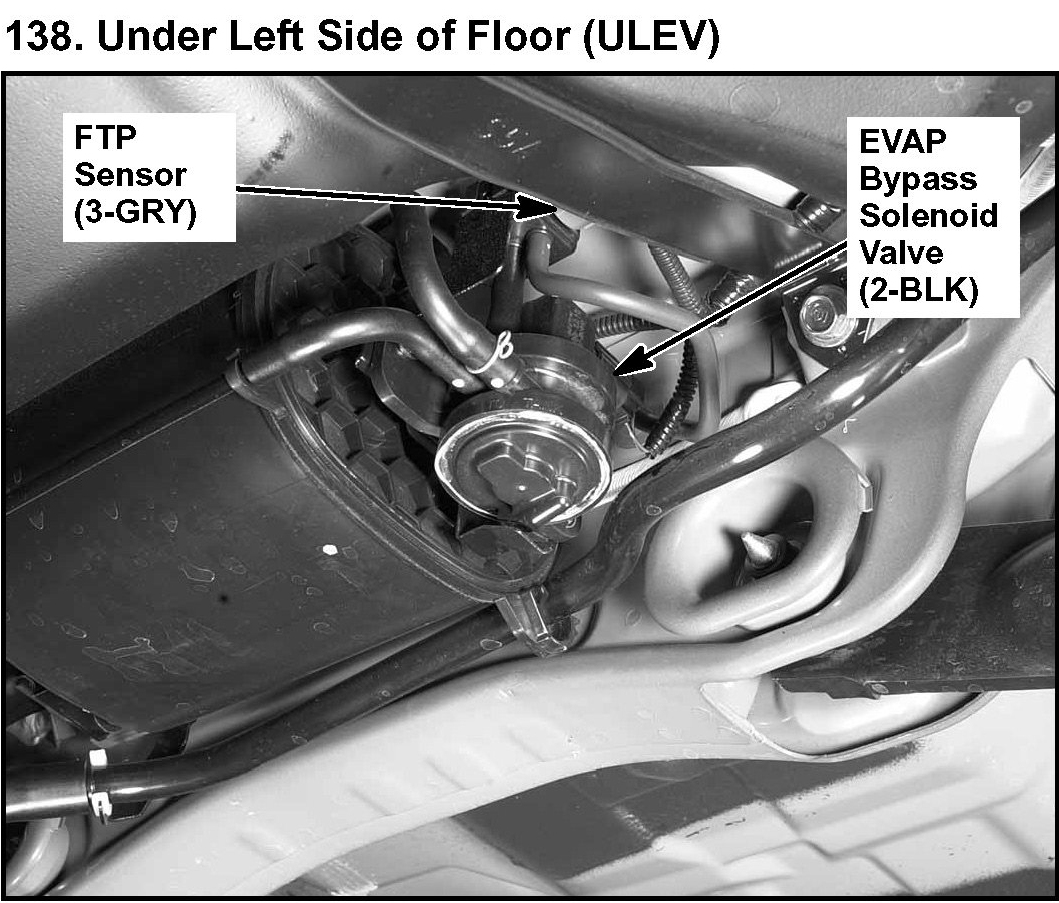

138. Under Left Side Of Floor (ULEV):



150. Under Left Side Of Floor (SULEV):
