Coolant: Service and Repair
Replacement1. Start the engine. Set the heater temperature control dial to maximum heat, then turn off the ignition switch. Make sure the engine and radiator are cool to the touch.
2. Remove the radiator cap.
3. Remove the six clips securing the under-cover, then open the under cover.

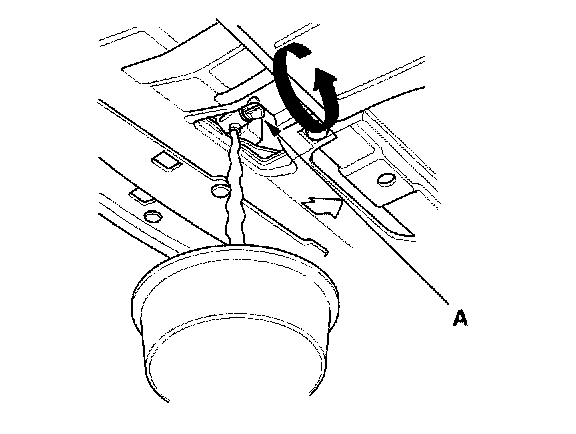

4. Loosen the drain plug (A), and drain the coolant.
5. Remove the drain bolt (A) from the rear side of the cylinder block.
6. After the coolant has drained, reinstall the drain bolt with a new washer.
7. Tighten the radiator drain plug securely.
8. Loosen the air bleed bolt (A) on the connecting pipe joint.
9. Pour Honda All Season Antifreeze/Coolant Type 2 into the radiator, and tighten the bleed bolt as soon as coolant starts to run out in a steady stream.
10. Pour Honda All Season Antifreeze/Coolant Type 2 into the radiator up to the base of the filler neck.
NOTE:
- Always use Honda All Season Antifreeze/Coolant Type 2. Using a non-Honda coolant can result in corrosion, causing the cooling system to malfunction or fail.
- Honda All Season Antifreeze/Coolant Type 2 is a mixture of 50 % antifreeze and 50 % water. Premixing is not required.
Engine Coolant Refill Capacity (including the reserve tank capacity of 0.4 L (0.4 US qt.))
M/T: 4.1 L (4.3 US qt.)
CVT: 4.0 L (4.2 US qt.)
11. Install the radiator cap loosely.
12. Start the engine and let it run until it warms up (the radiator fan comes on at least twice).
13. Turn off the engine. Check the level in the radiator and add Honda All Season Antifreeze/Coolant Type 2 if needed.
14. Fill the reserve tank to the MAX mark (A) with Honda All Season Antifreeze/Coolant Type 2.
15. Put the radiator cap on tightly, then run the engine again and check for leaks.
