IPU Air Duct Replacement

IPU Module Air Duct Replacement
1. Remove the trunk trim panel.
2. Remove the IPU module fan.

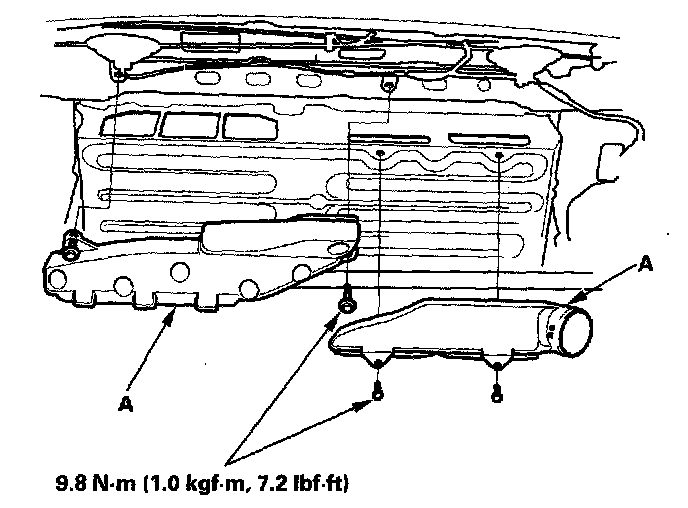

3. Remove the IPU module air ducts (A).
4. Install the parts in the reverse order of removal.
