Home >> Honda >> 2005 >> Civic L4-1.3L Hybrid >> Repair and Diagnosis >> Diagrams >> Connector Views >> Wheel Speed Sensor

Wheel Speed Sensor

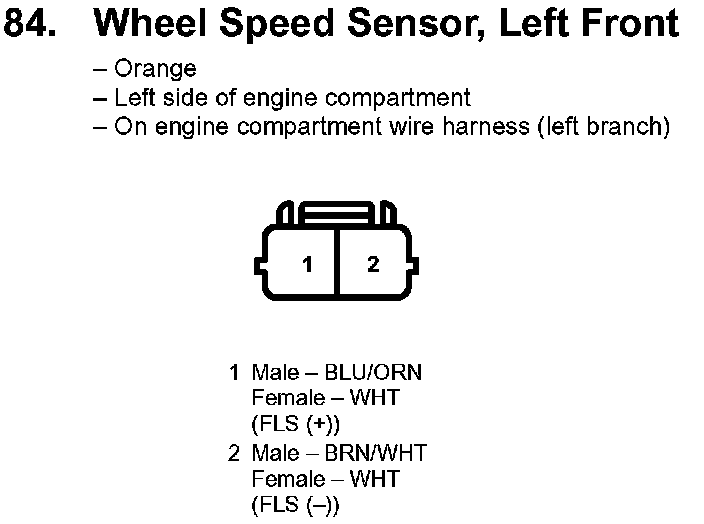

84. Wheel Speed Sensor, Left Front:



85. Wheel Speed Sensor, Left Rear:

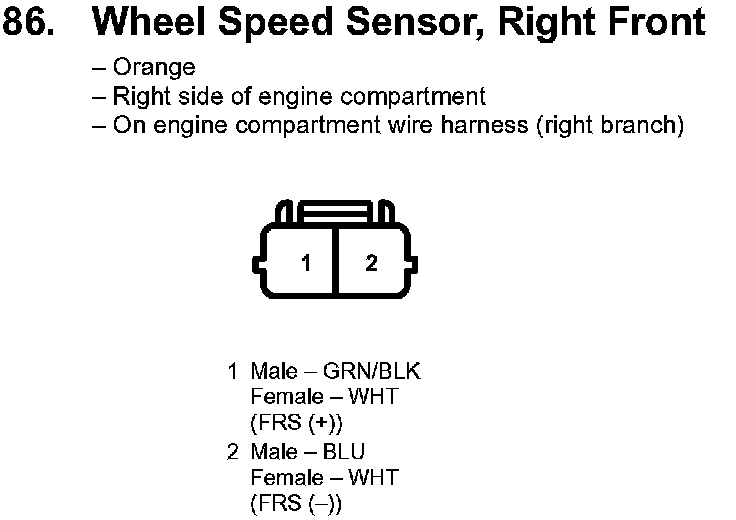

86. Wheel Speed Sensor, Right Front:



87. Wheel Speed Sensor, Right Rear:
