Transmission Speed Sensor, CVT

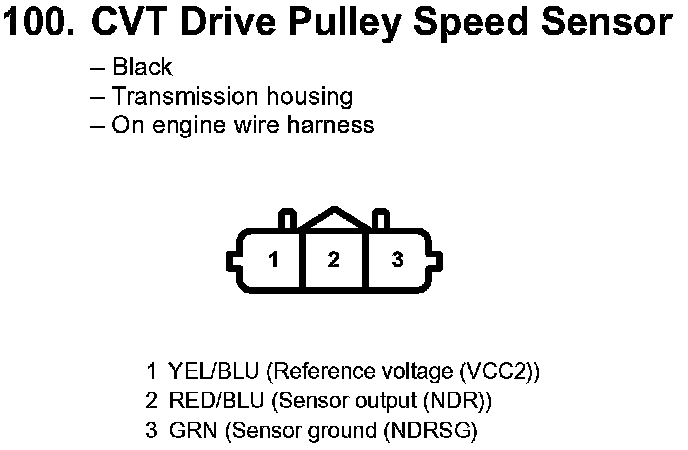

100. CVT Drive Pulley Speed Sensor:



101. CVT Driven Pulley Speed Sensor:

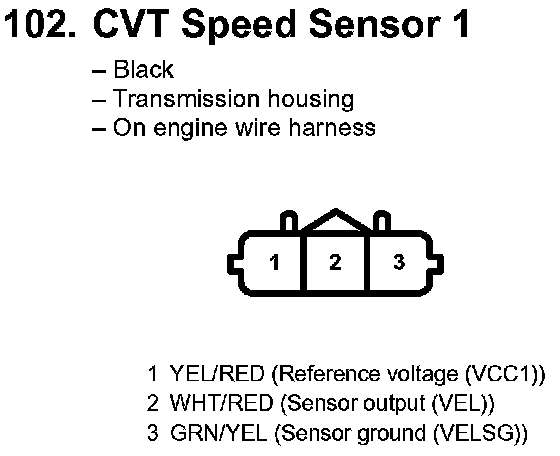

102. CVT Speed Sensor 1:



103. CVT Speed Sensor 2:
