Impact Sensor
Impact Sensor

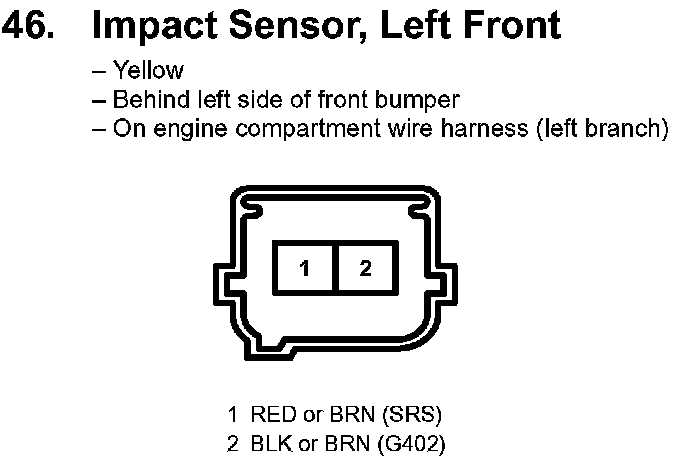

46. Impact Sensor, Left Front:

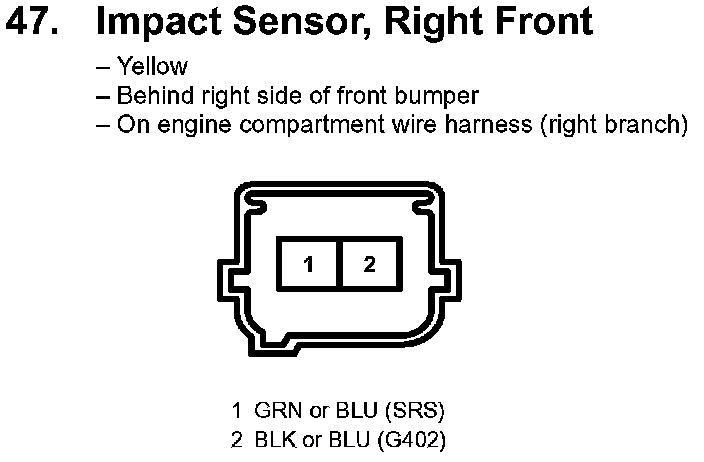

47. Impact Sensor, Right Front:

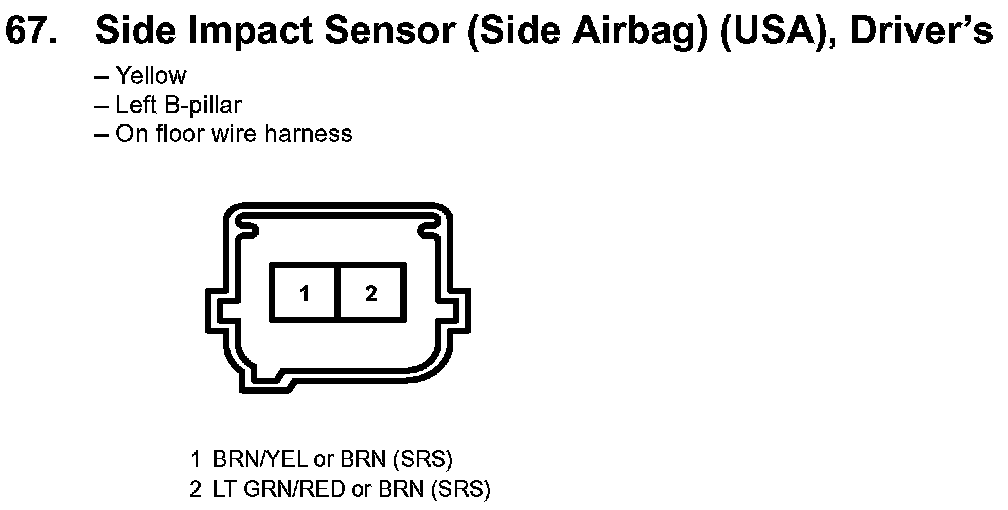

67. Side Impact Sensor (Side Airbag) (USA), Driver's:

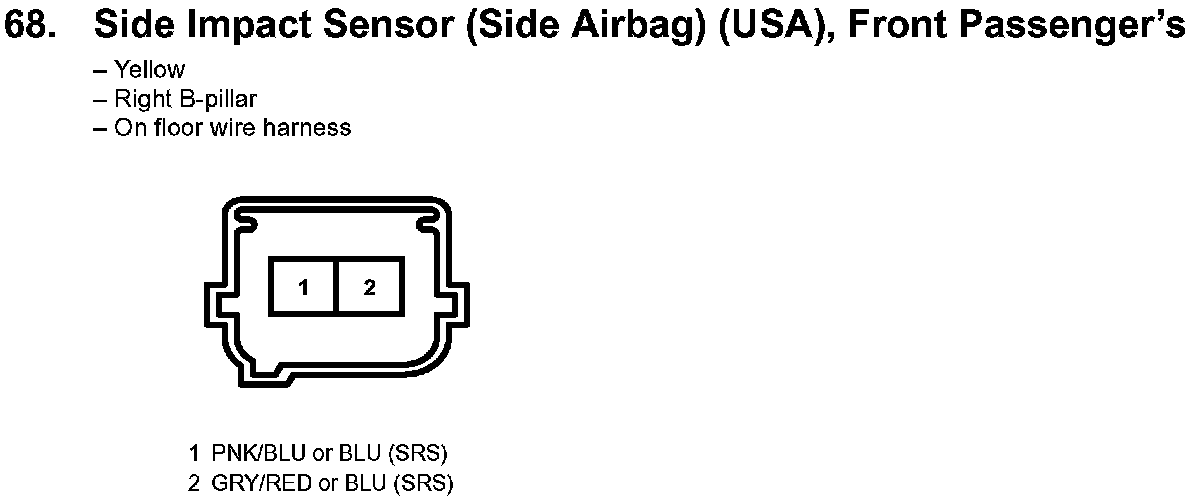

68. Side Impact Sensor (Side Airbag) (USA), Front Passenger's:
