Home >> Honda >> 2005 >> Civic L4-1.3L Hybrid >> Repair and Diagnosis >> Diagrams >> Connector Views >> Cruise Control Switch

Cruise Control Switch

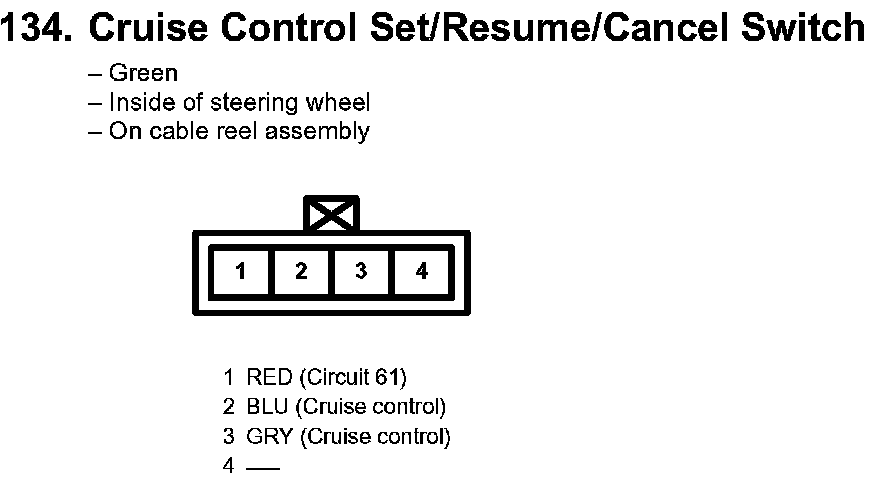

134. Cruise Control Set/Resume/Cancel Switch:

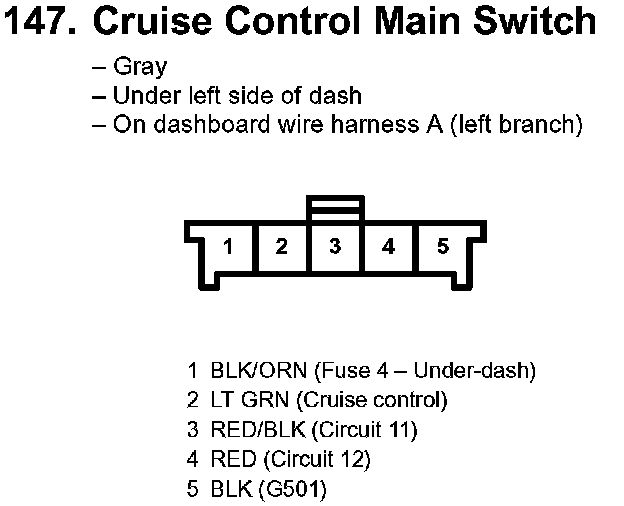

147. Cruise Control Main Switch:
