Cross-Member: Service and Repair

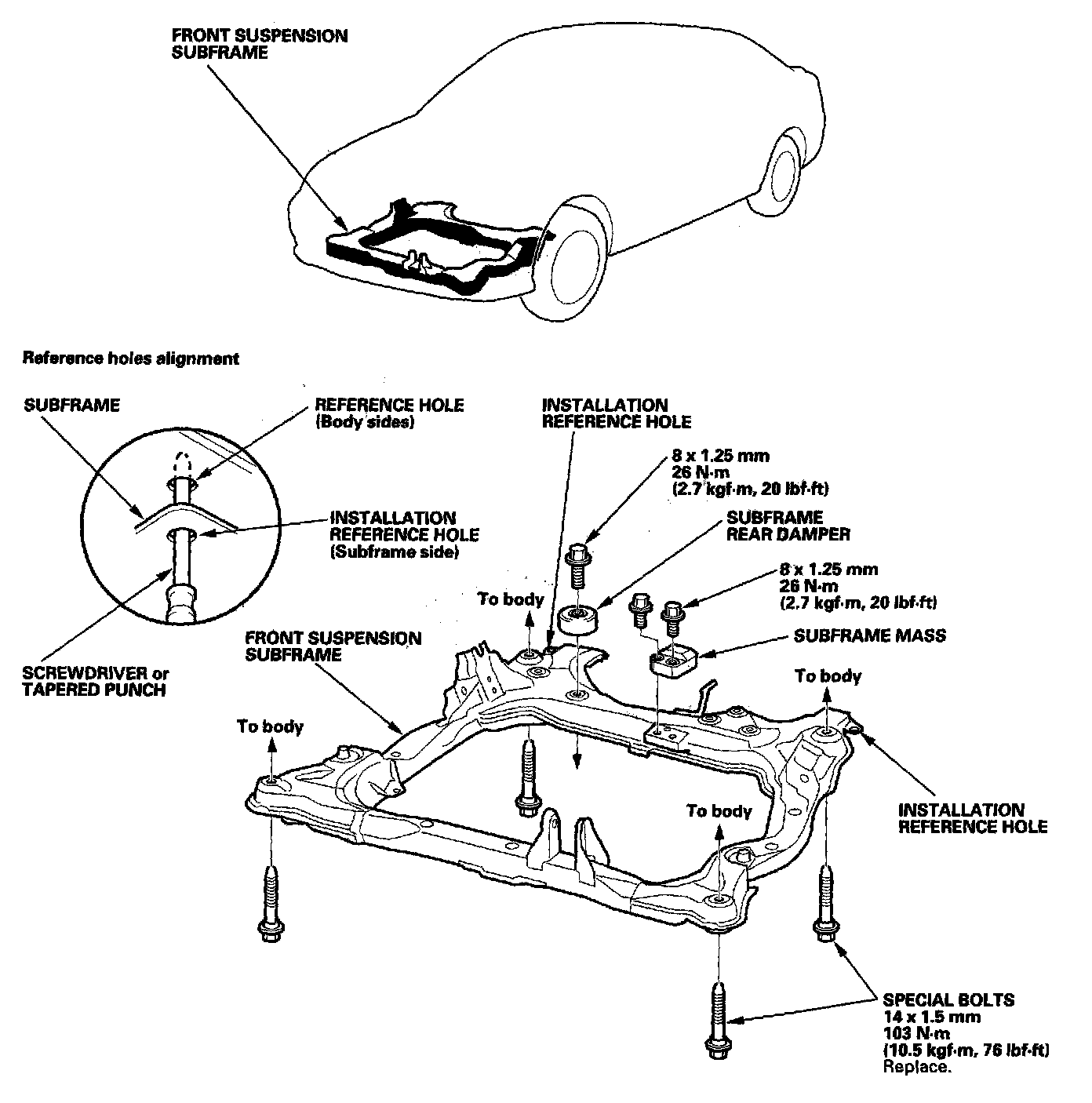

Subframe
Replacement
Subframe
Torque
After loosening the subframe mounting bolts, be sure to replace them with new ones.

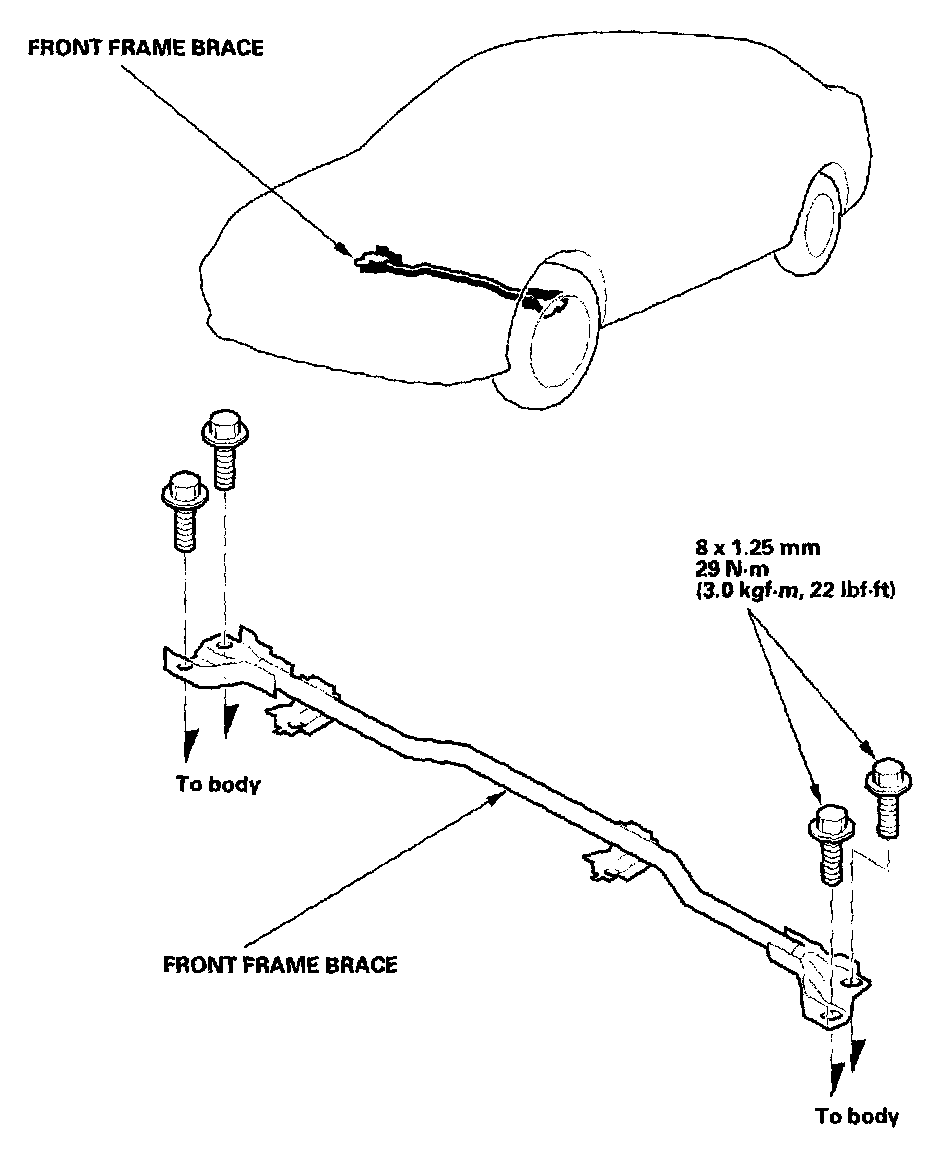

Front Frame Brace Replacement
