Pinout Values and Diagnostic Parameters
System Description
MCM Inputs and Outputs at Connector A (31P)

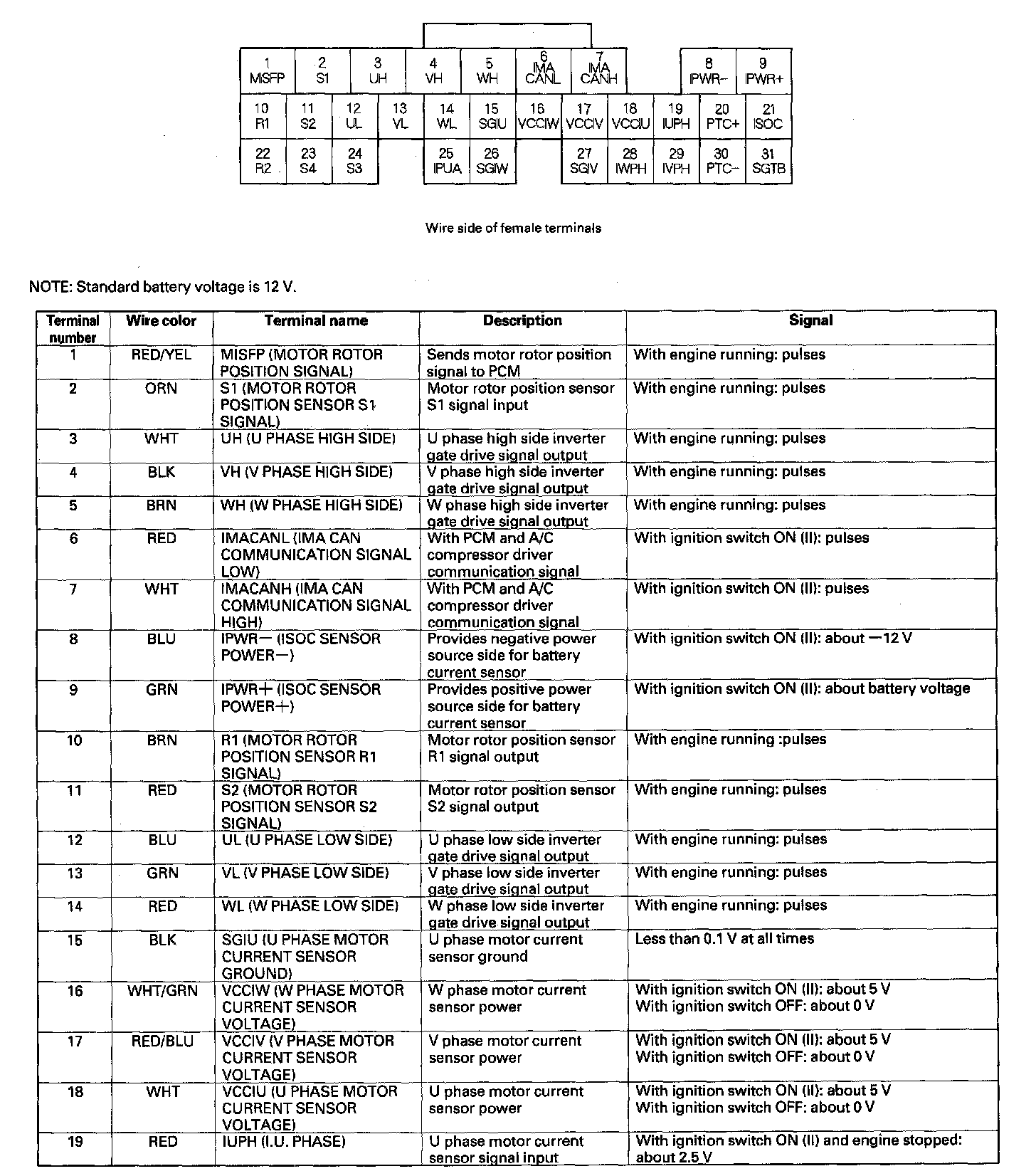

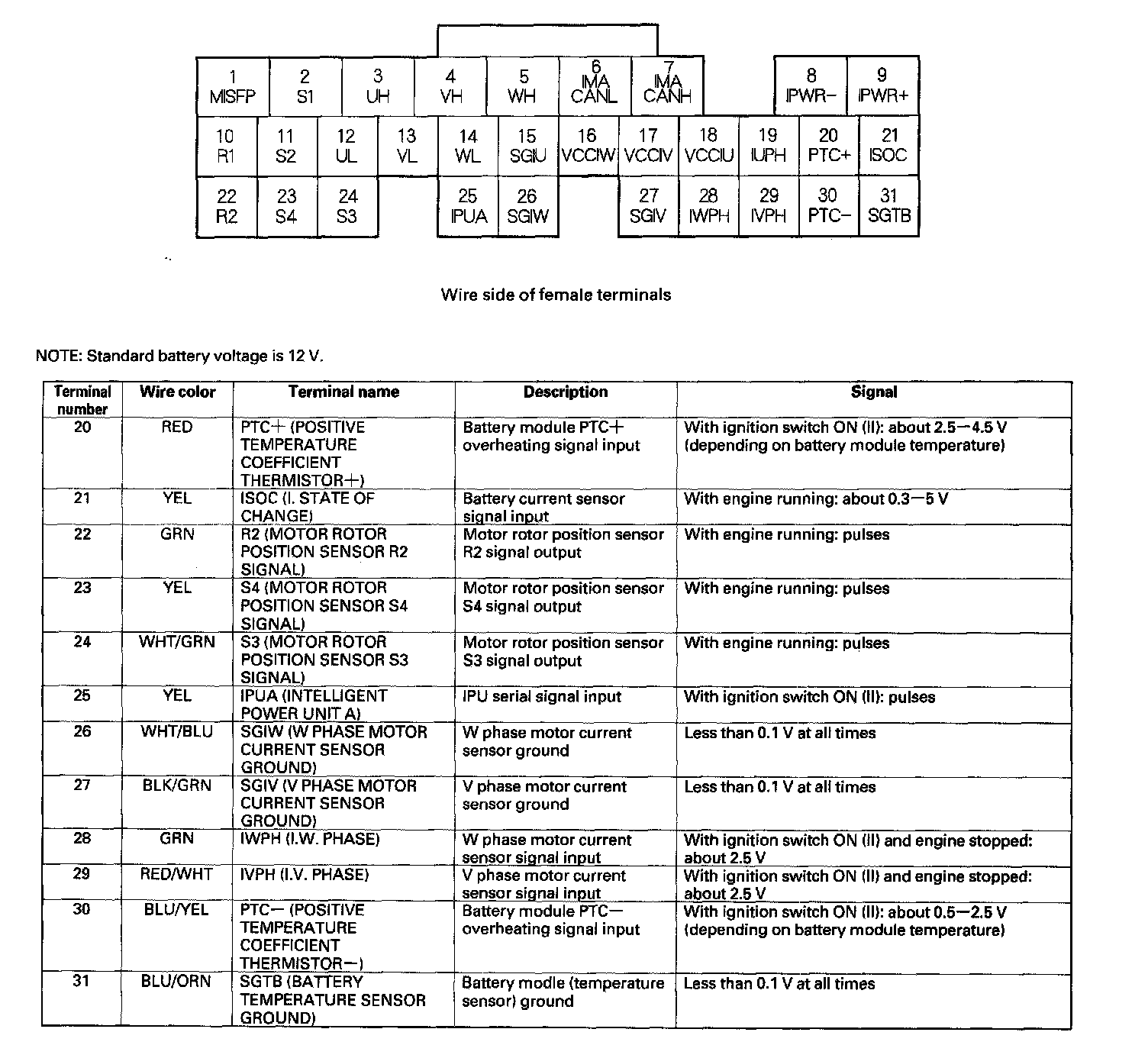

MCM Inputs and Outputs at Connector A (31P)

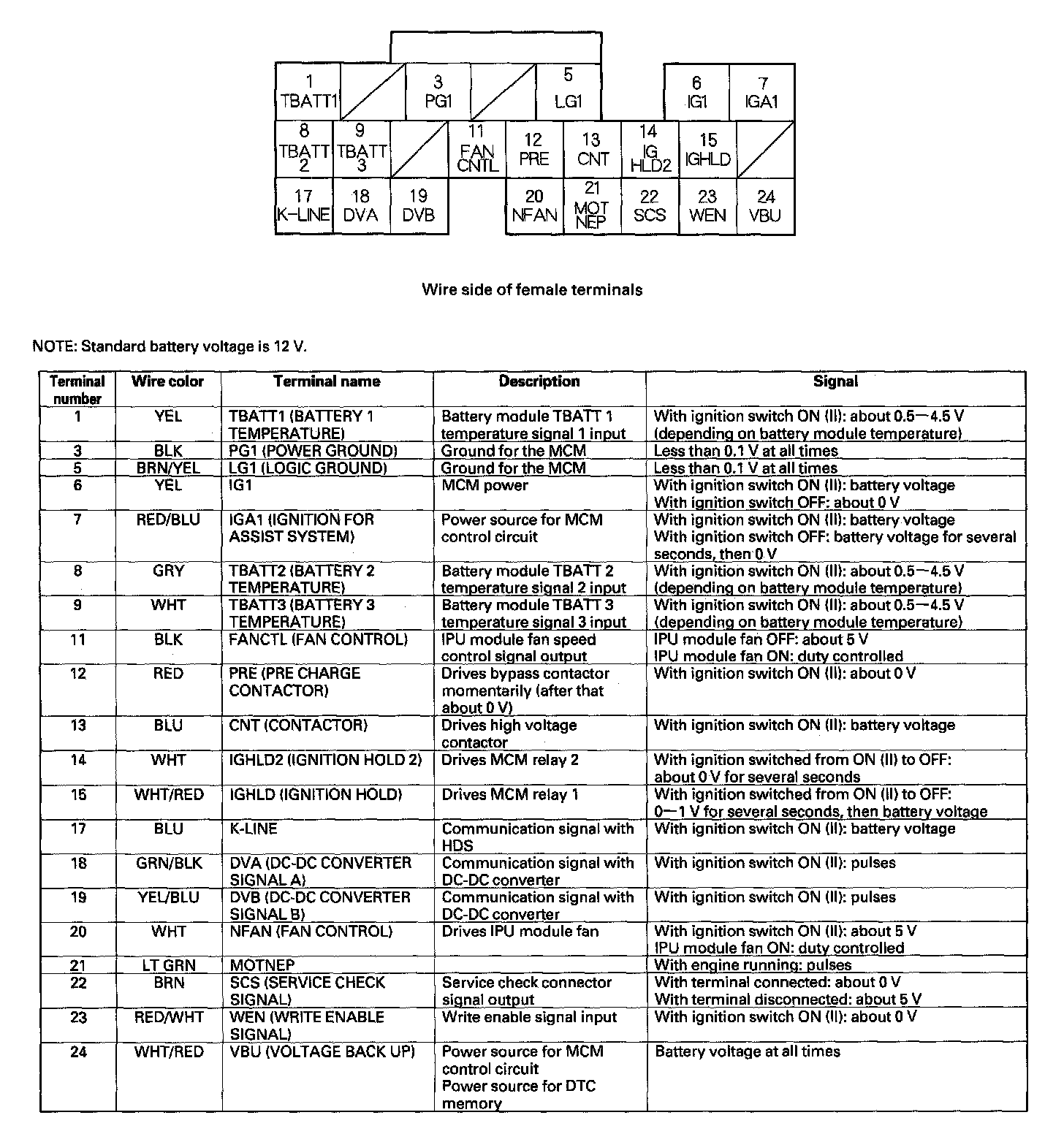

MCM Inputs and Outputs at Connector B (24P)
MCM Inputs and Outputs at Connector C (14P)
