Shift Interlock Switch
Shift Interlock Switch

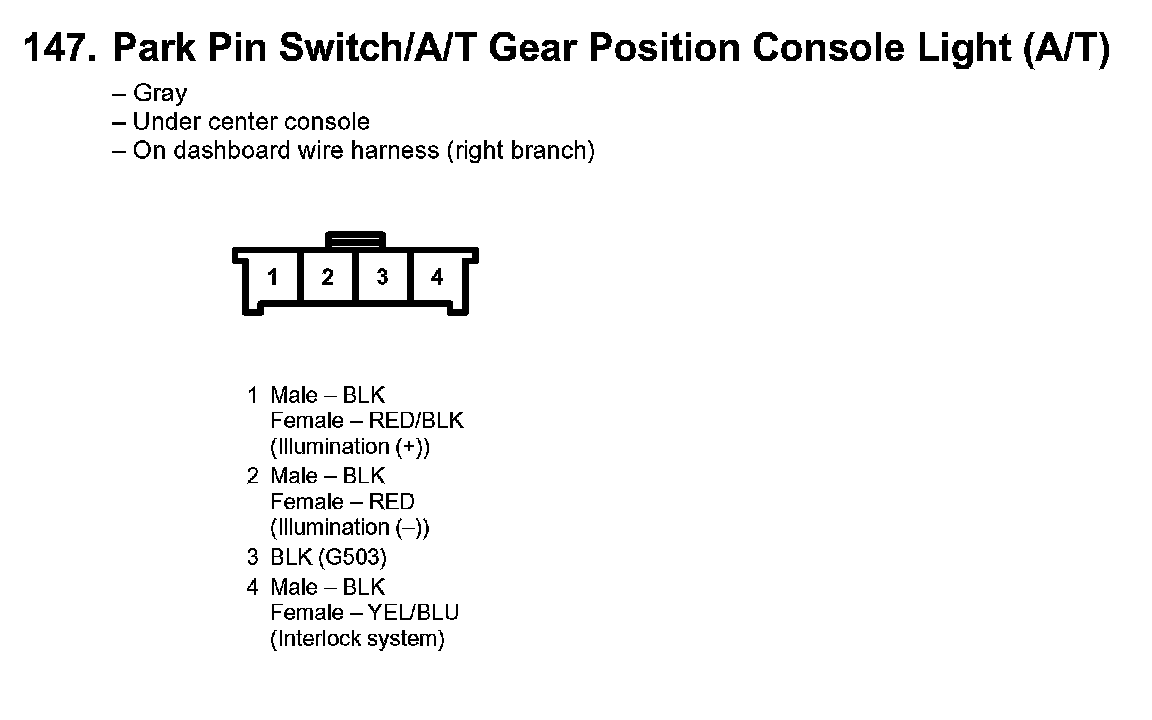

147. Park Pin Switch/A/T Gear Position Console Light (A/T):
