Home >> Honda >> 2005 >> Accord V6-3.0L Hybrid >> Repair and Diagnosis >> Diagrams >> Connector Views >> Navigation System >> System Diagram >> Service Check Connector

Service Check Connector

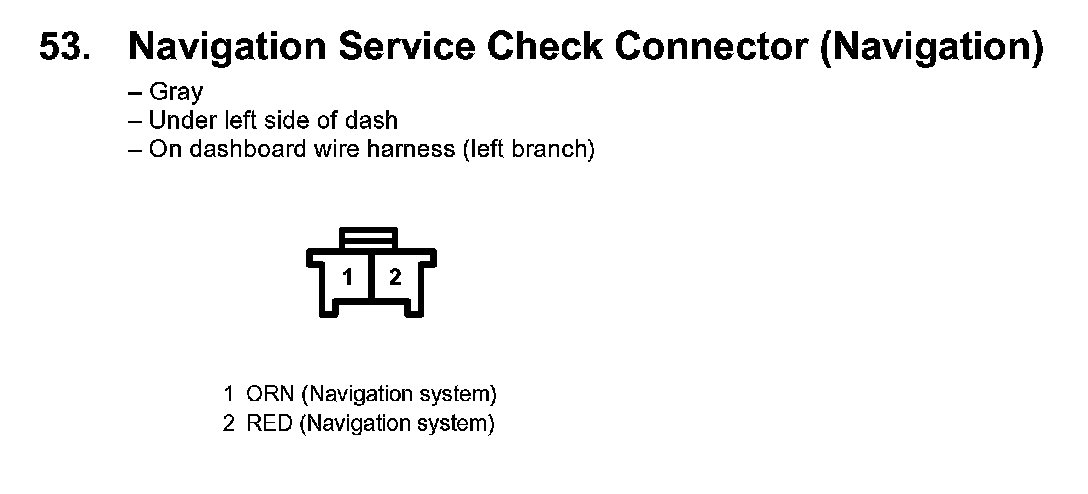

53. Navigation Service Check Connector (Navigation):

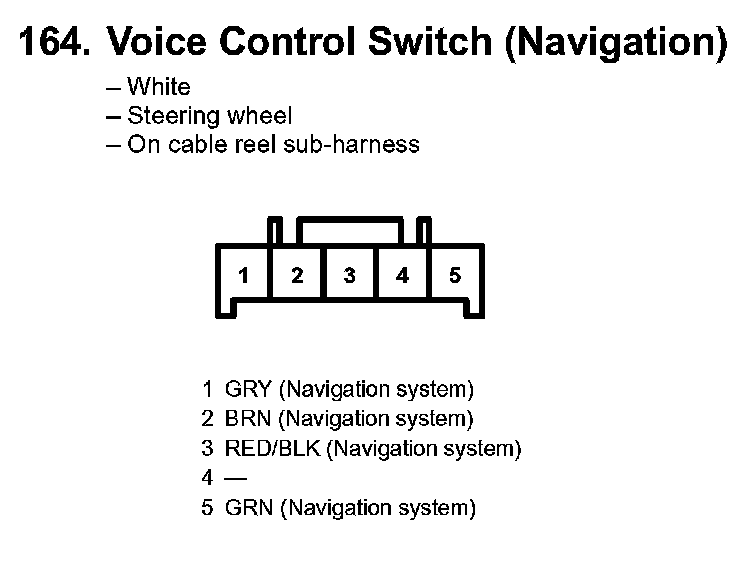

164. Voice Control Switch (Navigation):
