Electrical Diagrams

Power Windows- Key-OFF Timer Circuit:

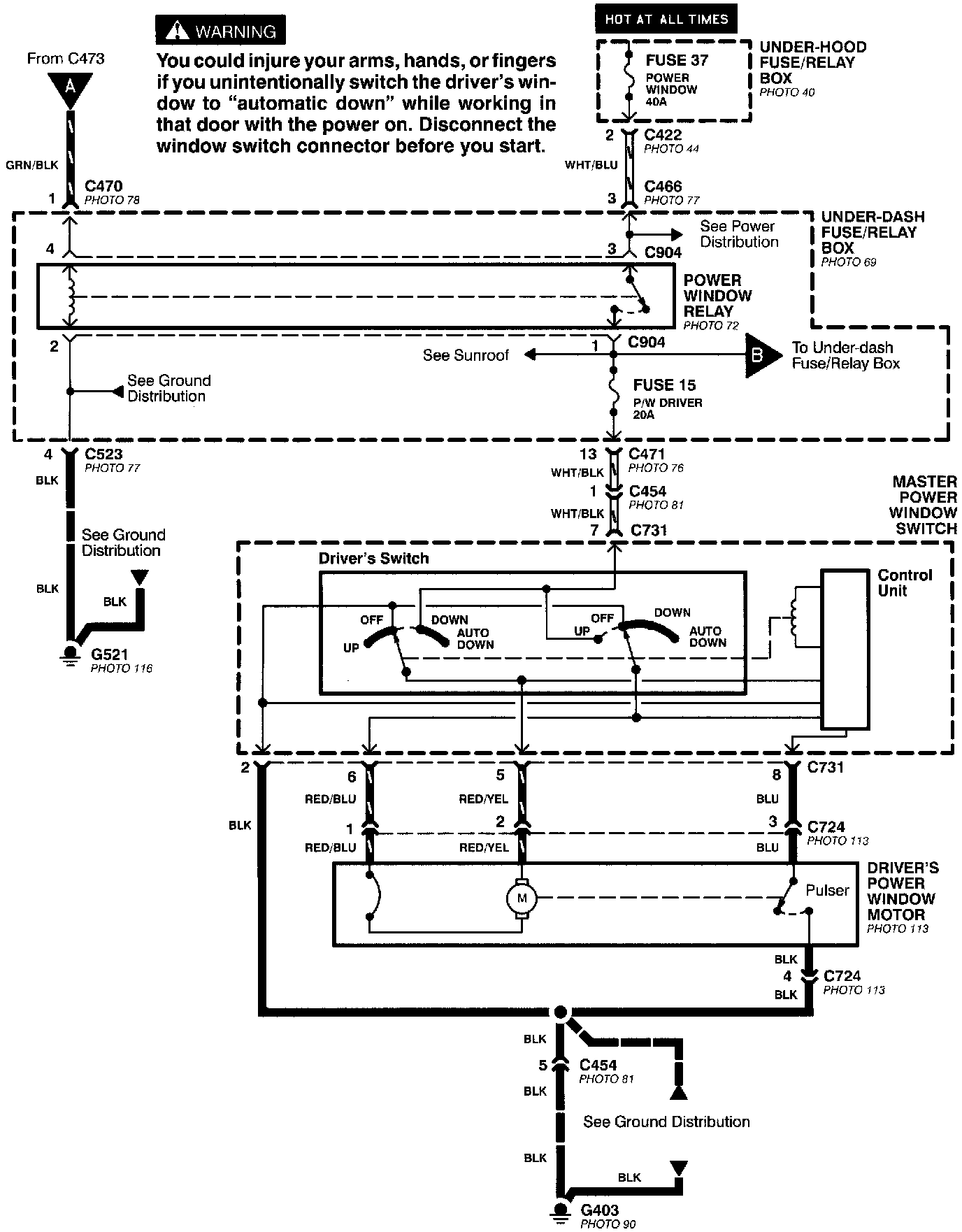

Power Windows- Driver's Door:

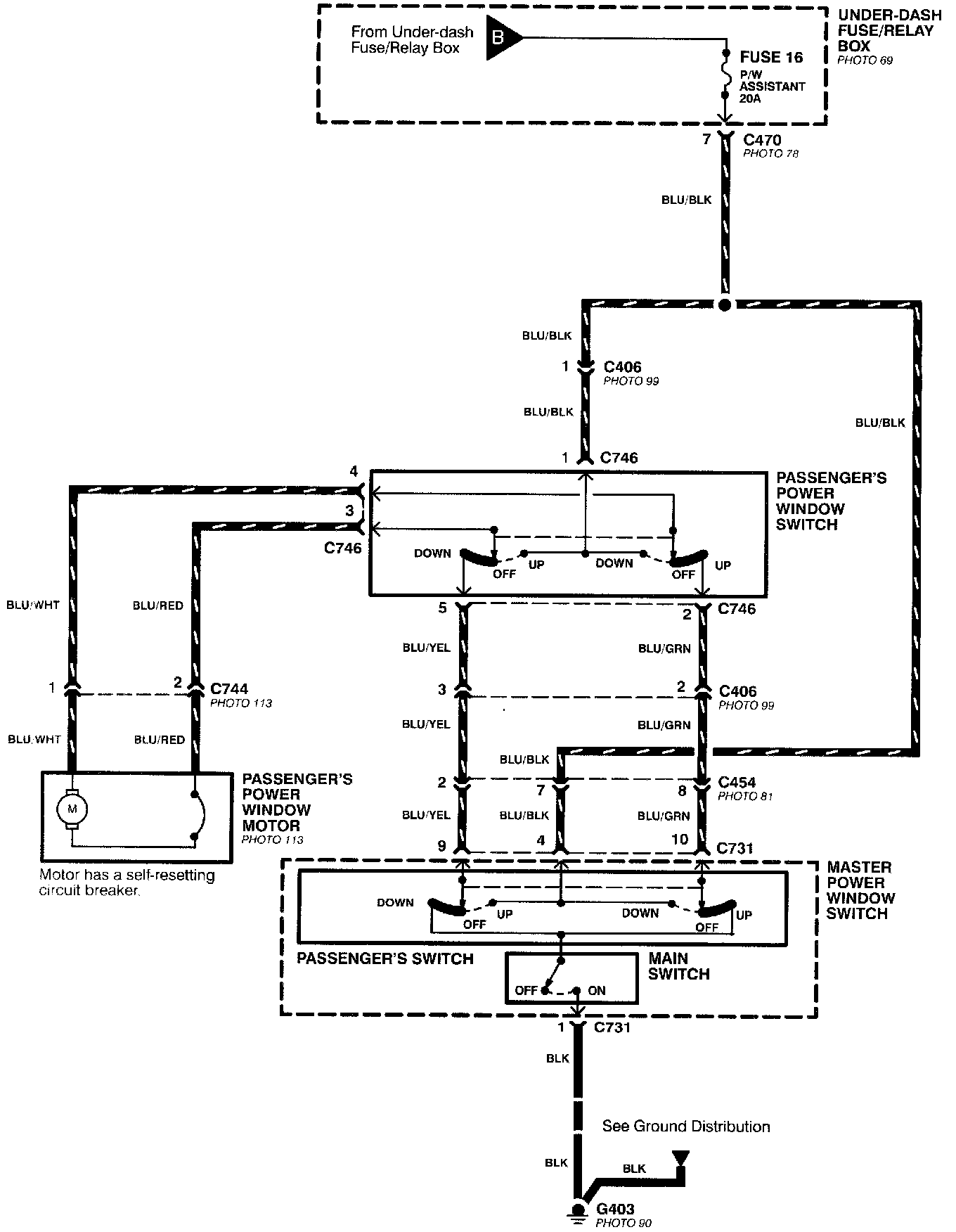

Power Windows- Passenger's Door:
