Disassembly/Reassembly

NOTE:
- During reassembly, grease all sliding parts.
- Use only Super High Temp Urea Grease (P/N 08798-9002).

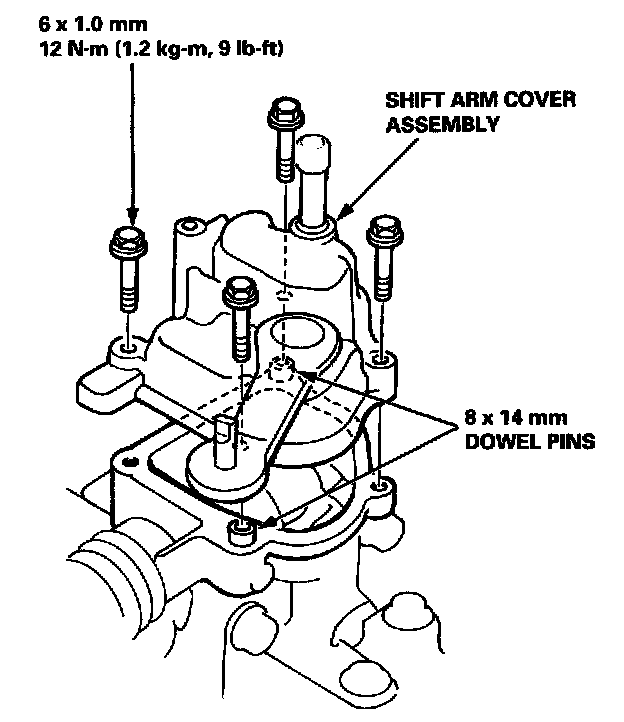

1. Remove the shift arm cover assembly.

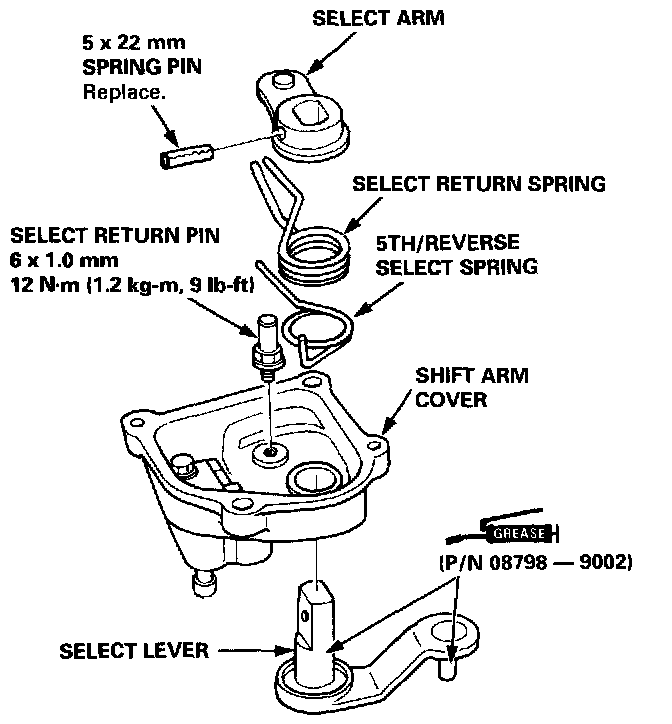

2. Remove the spring pin, then remove the select lever, select arm and springs.
3. Remove the select return pin.

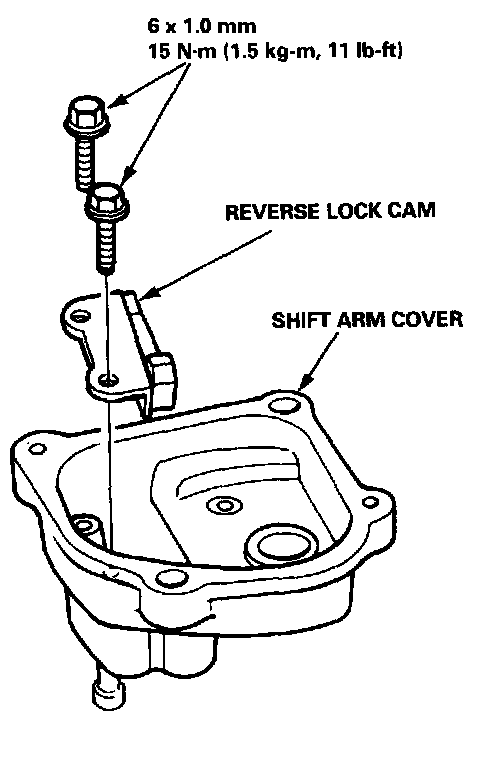

4. Remove the reverse lock cam.

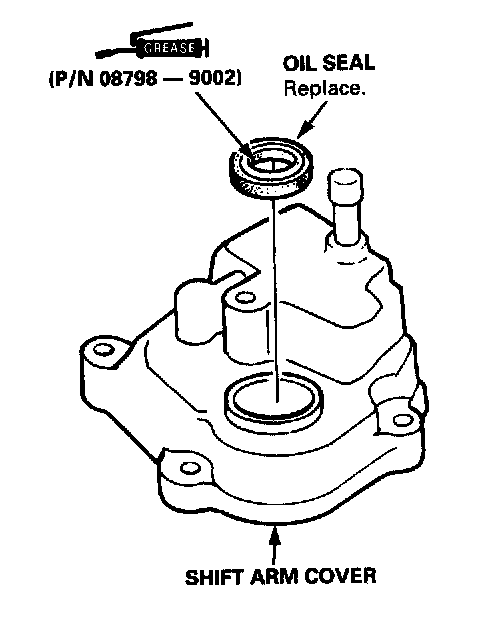

5. Remove the oil seal.

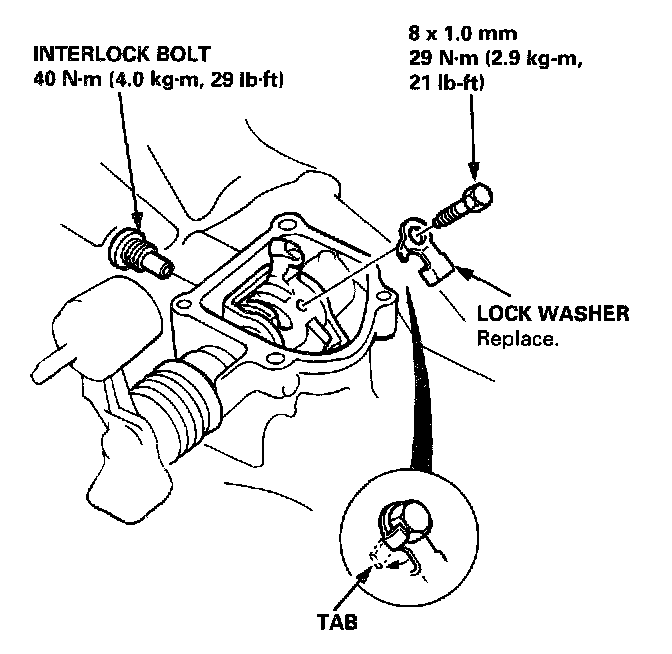

6. Bend the tab of the lock washer, then remove the bolt.
7. Remove the interlock bolt.

NOTE: Apply liquid gasket (P/N 08718-0001) to the threads before reassembly.

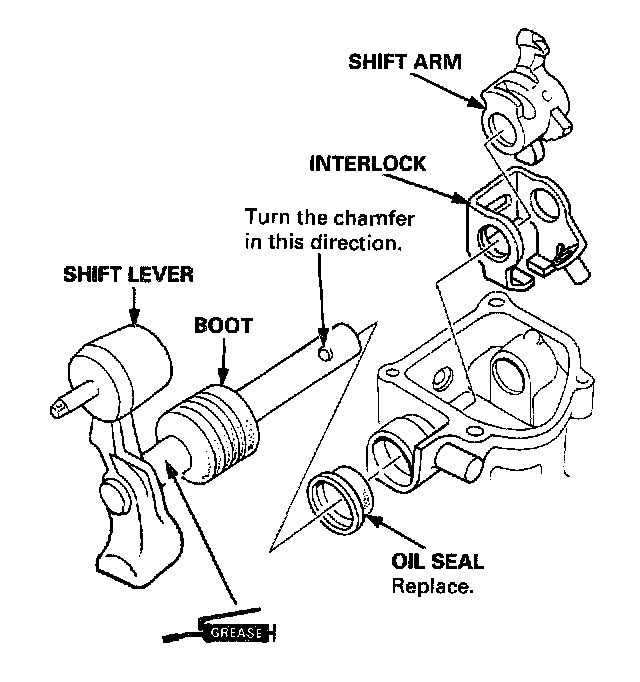

8. Remove the shift lever, shift arm, and interlock.

NOTE: Turn the boot so the hole is facing down.




9. Install the shift arm assembly in the reverse order of removal.

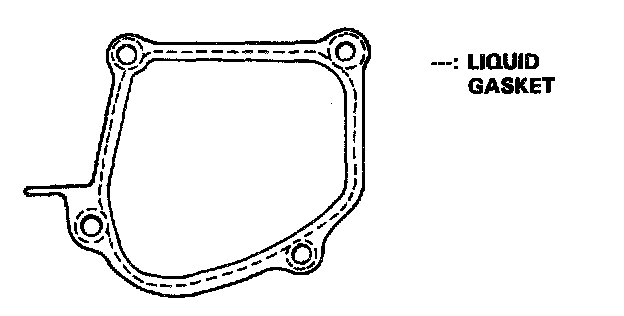

NOTE:
- Use liquid gasket (P/N 08718-0001).
- Remove the dirt oil from the sealing surface.
- Seal the entire circumference of the bolt hole to prevent oil leakage.
- If 20 minutes have passed after applying liquid gasket, reapply it and assemble the housings and allow it to cure at least 30 minutes after assembly before filling transmission with oil.
