Reverse Shift Fork

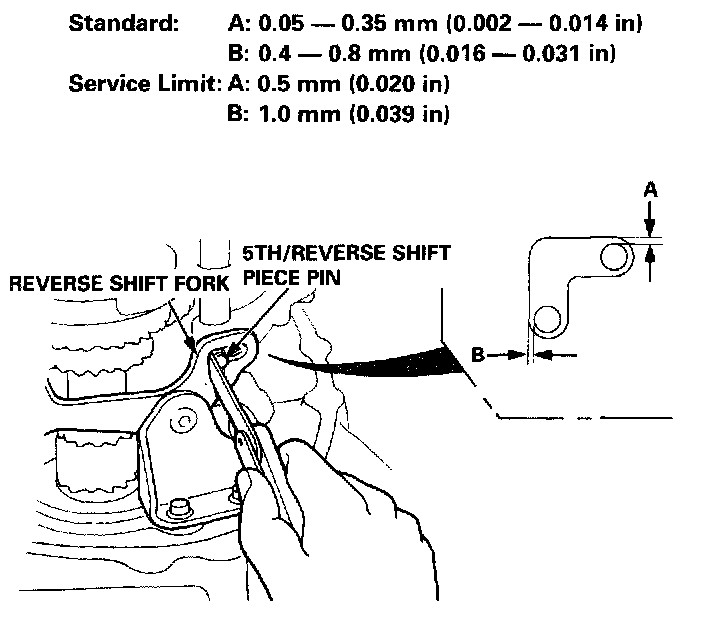

1. Measure the clearance between the reverse shift fork and 5th/reverse shift piece pin.

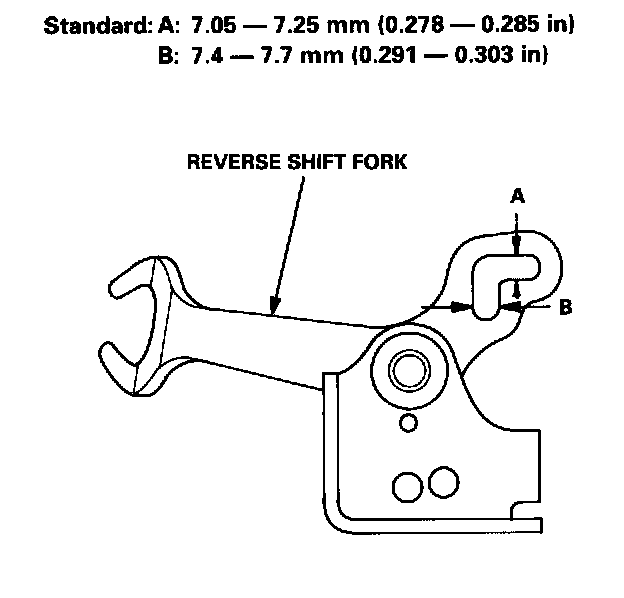

2. If the clearance exceed the service limit, measure the width of the groove in the reverse shift fork.
- If the width of the groove exceeds the standard, replace the reverse shift fork with a new one.
- If the width of the groove is within the standard, replace the 5th/reverse shift piece with a new one.

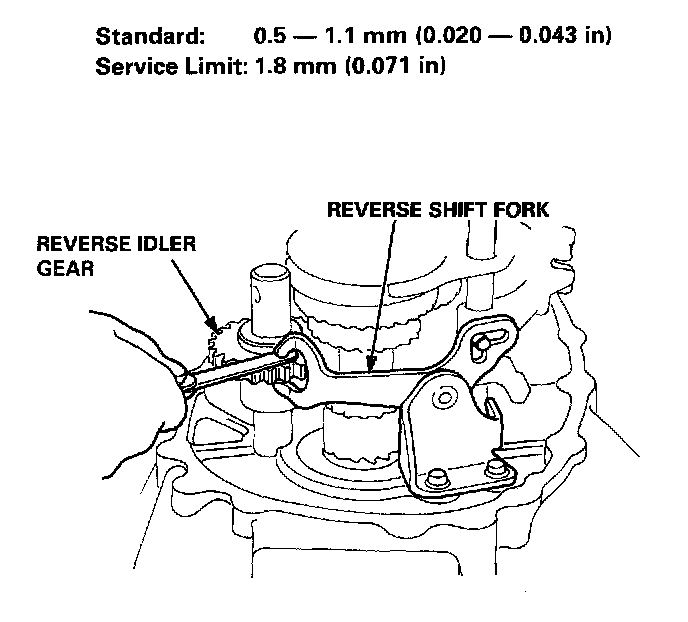

3. Measure the clearance between the reverse idler gear and reverse shift fork.

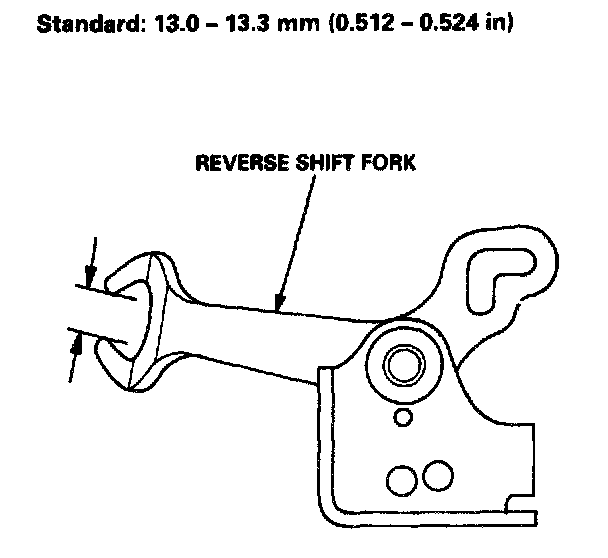

4. If the clearance exceeds the service limit, measure the width of the reverse shift fork.
- If the width exceeds the standard, replace the reverse shift fork with a new one.
- If the width is within the standard, replace the reverse idler gear with a new one.
