Reverse Idler Gear

REMOVAL

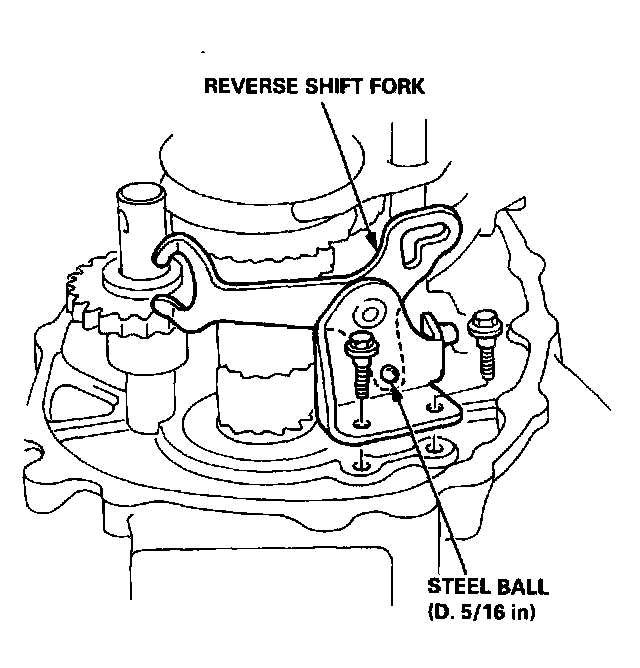

1. Remove the reverse shift fork.

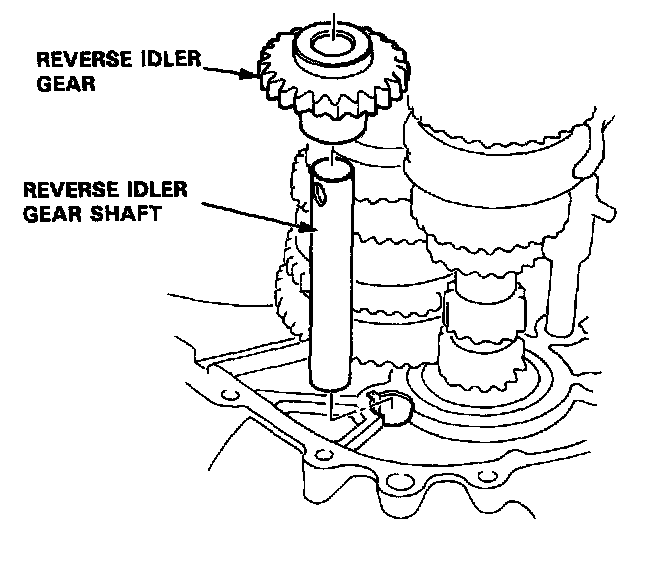

2. Remove the reverse idler gear shaft and the reverse idler gear.
