Mainshaft Bearing/Oil Seal

1. Remove the differential assembly.

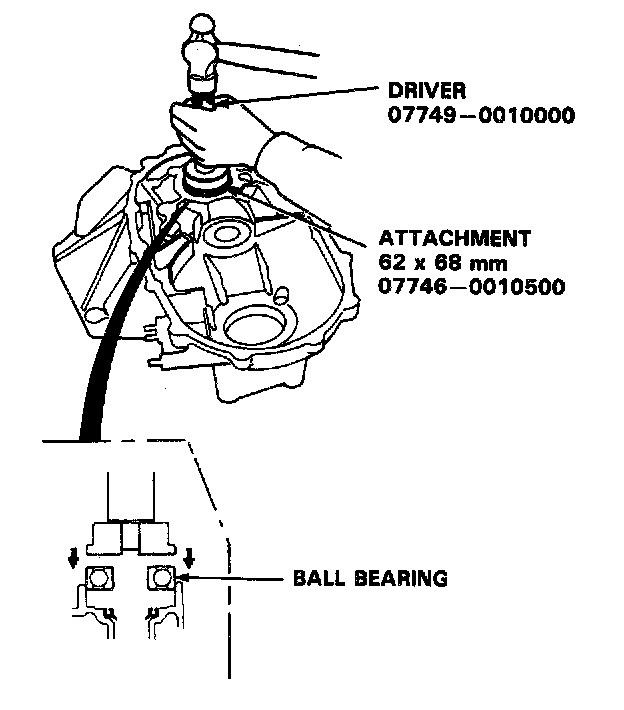

2. Remove the ball bearing with the special tool as shown.

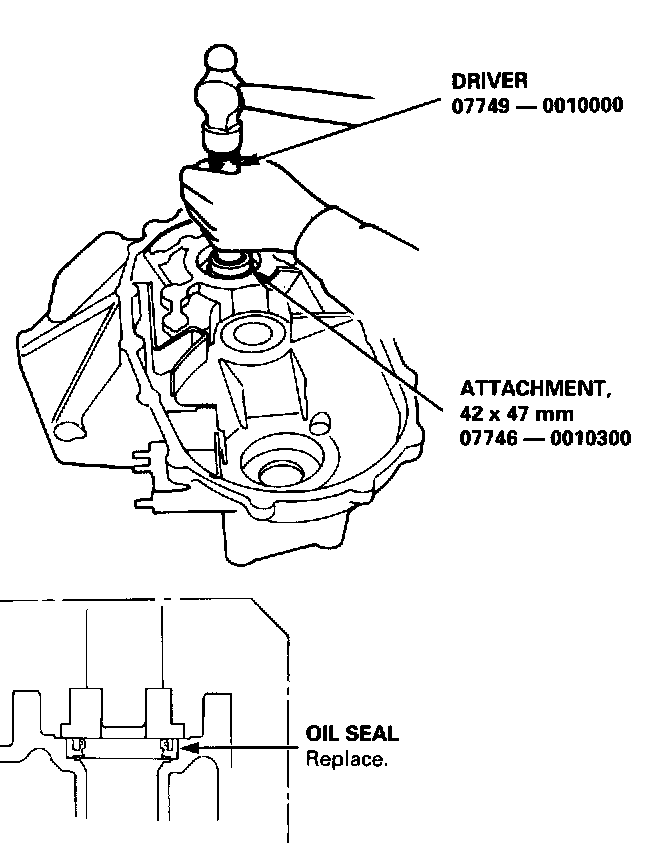

3. Remove the oil seal from the clutch side.




4. Drive the new oil seal in from the transmission side using the special tools as shown.




5. Drive the new ball bearing in from the transmission side using the special tools as shown.
