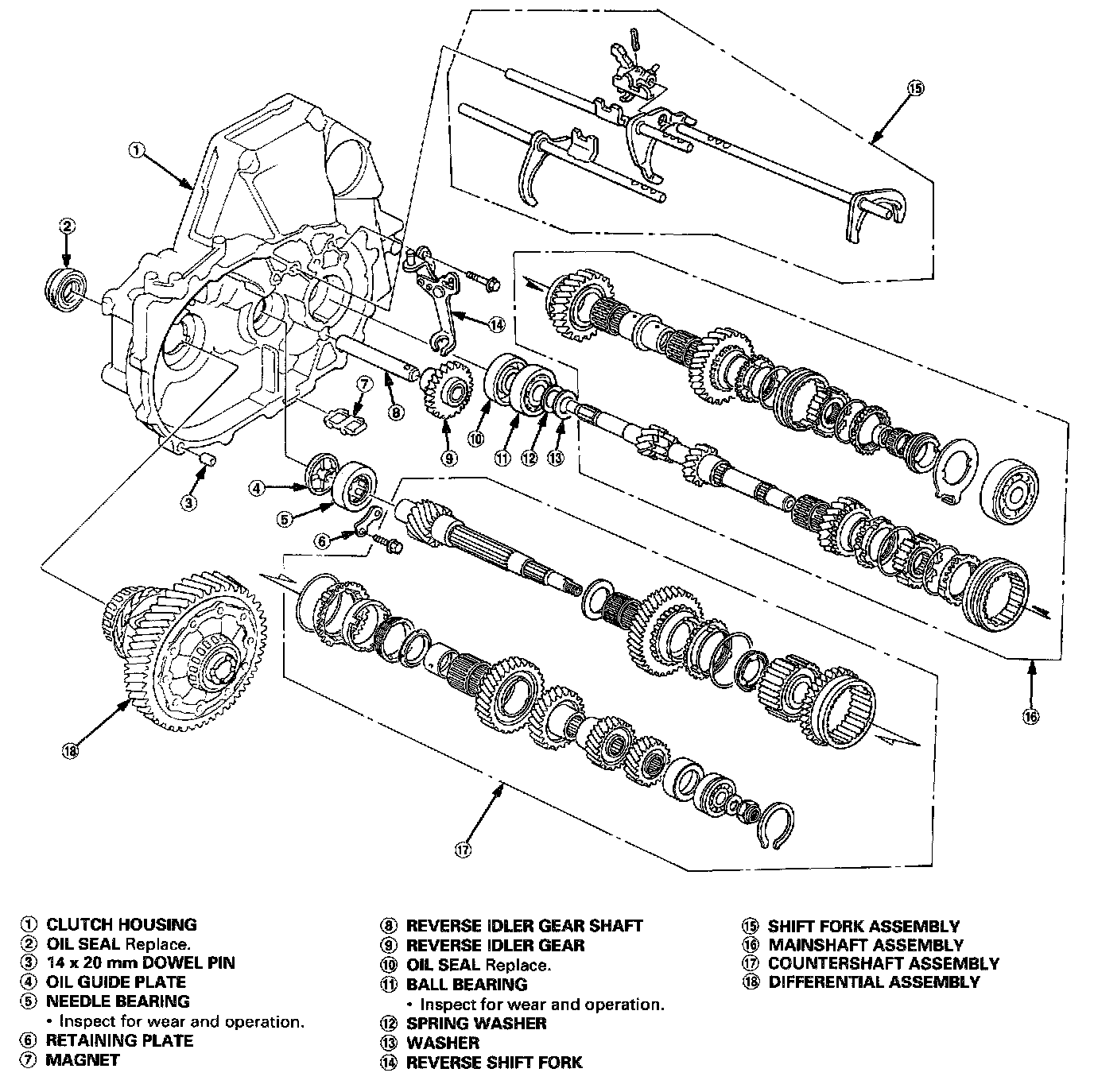

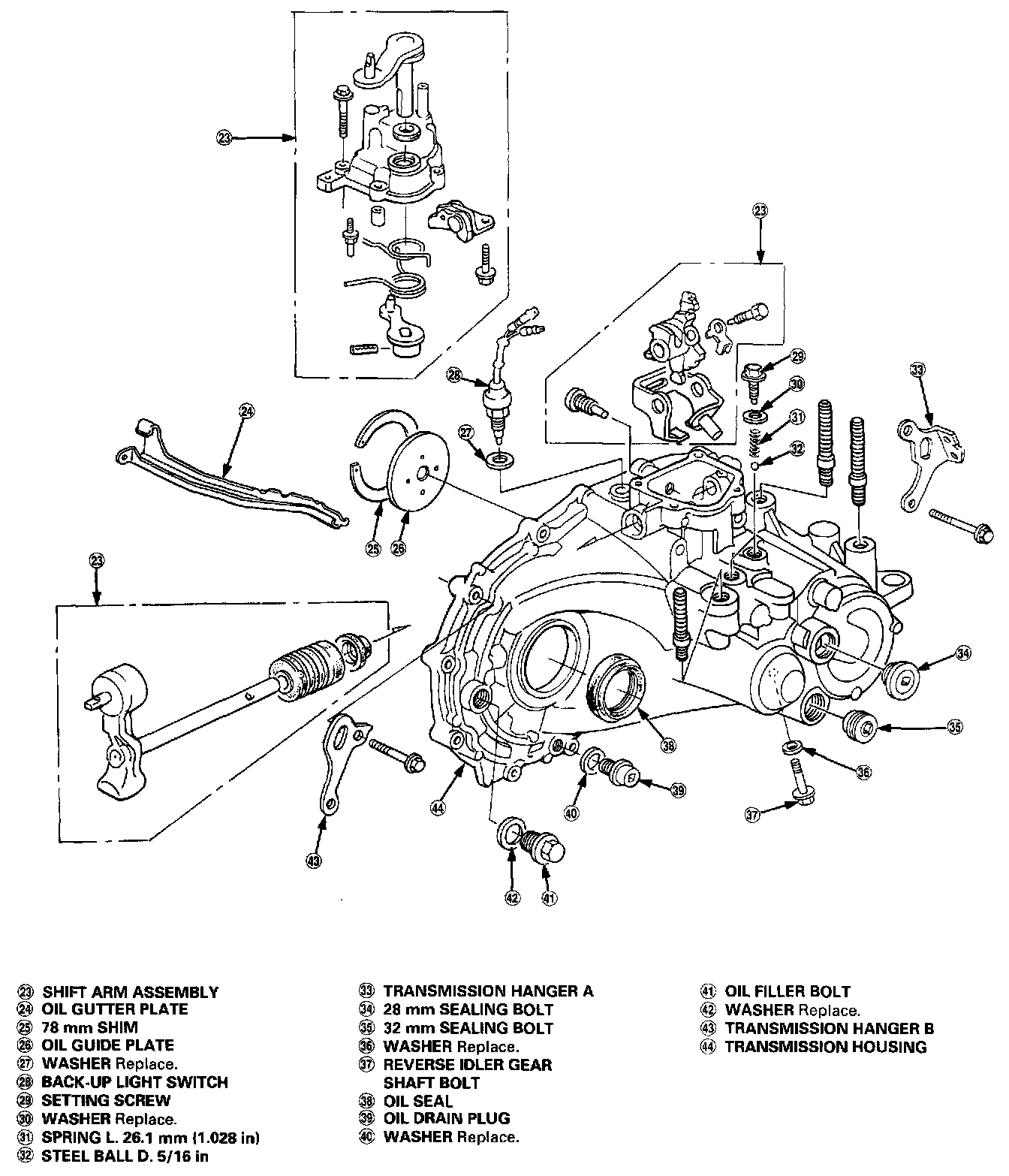

Refer to the drawing for the transmission disassembly.
Clean all parts thoroughly in solvent and dry with compressed air.

Lubricate all parts with oil before reassembly.

NOTE:
- This transmission uses no gaskets between the major housings; use liquid gasket (P/N 08718-0001)
- Always clean the magnet (7) whenever the transmission housing is disassembled.
