Countershaft Bearing

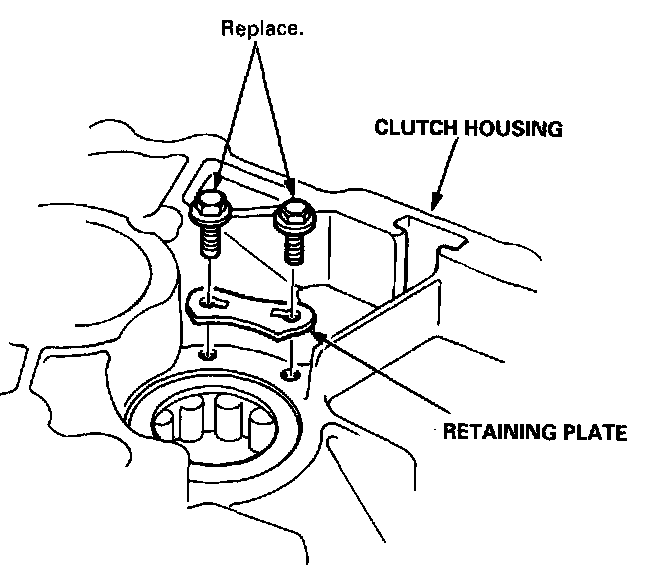

1. Remove the retaining plate from the clutch housing.

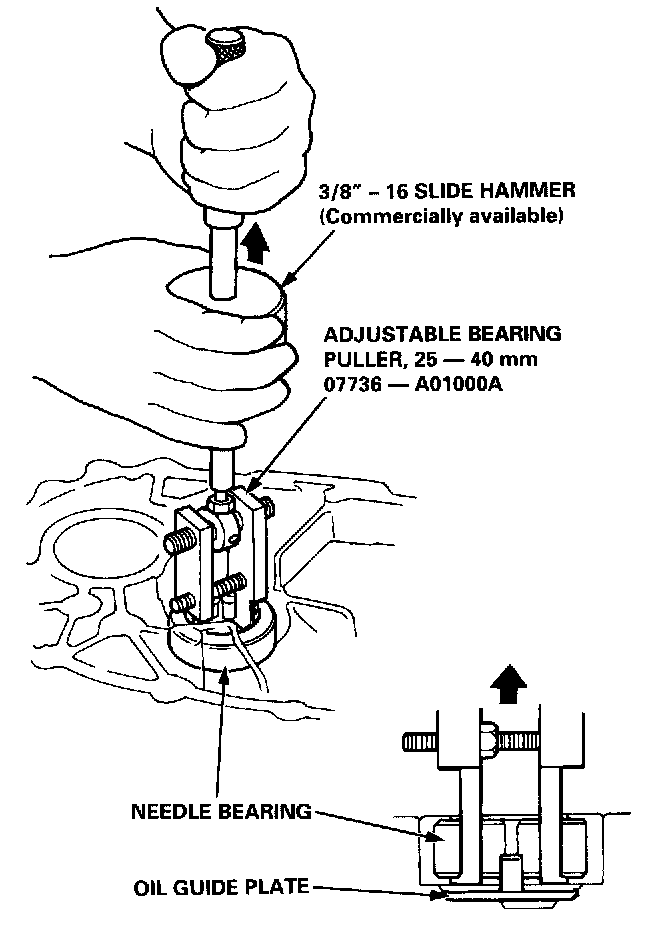

2. Remove the needle bearing with the special tool, then remove the oil guide plate.

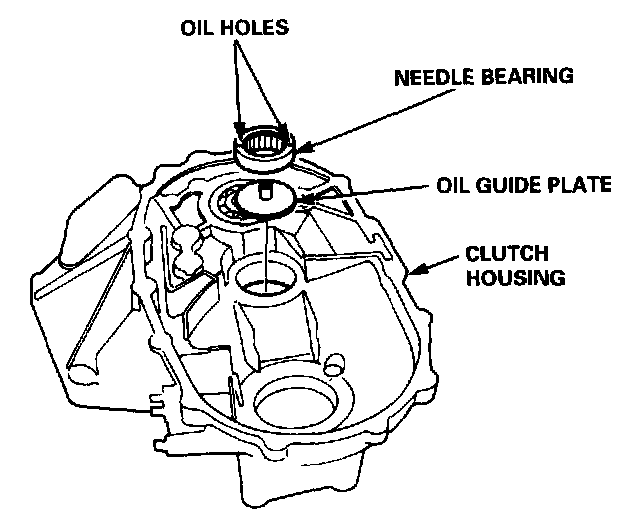

3. Position the oil guide plate and new needle bearing in the bore of the clutch housing.

NOTE: Position the needle bearing with the oil hole facing up.

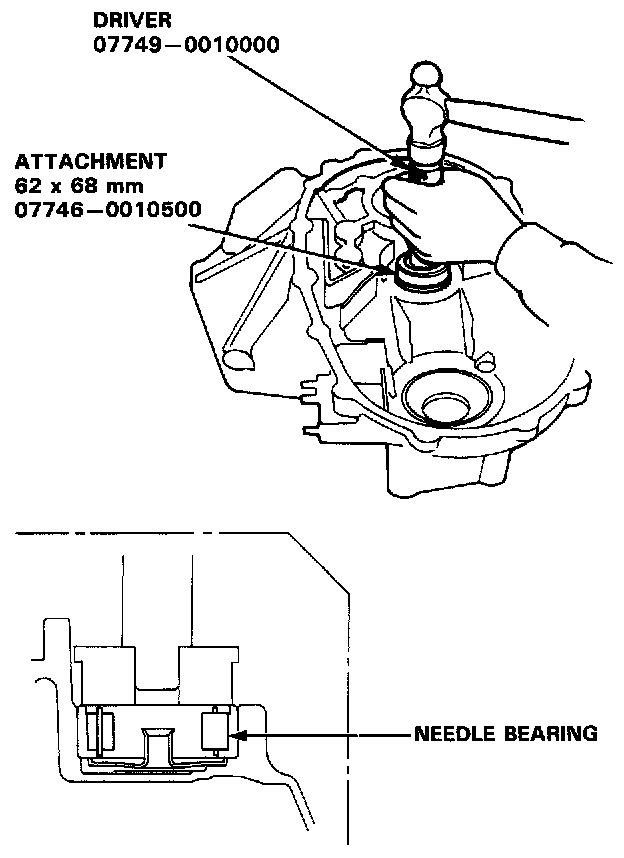

4. Drive the needle bearing in using the special tools as shown.

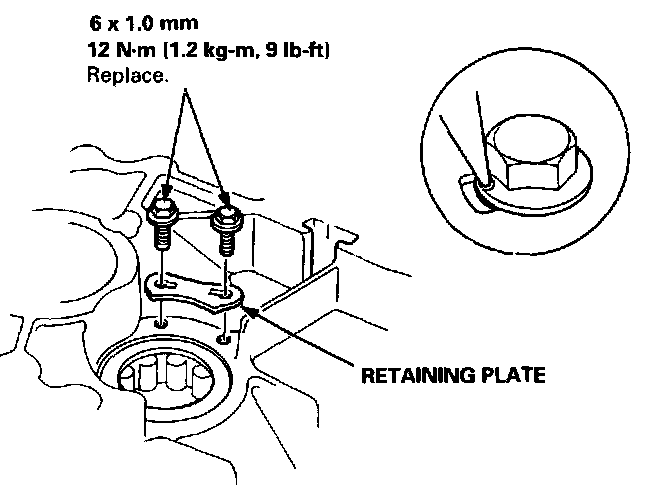

5. Install the retaining plate and stake the bolt heads in the groove in the retaining plate.
