Air Temperature Sensor ( Ambient / Intake ): Description and Operation








DESCRIPTION AND OPERATION

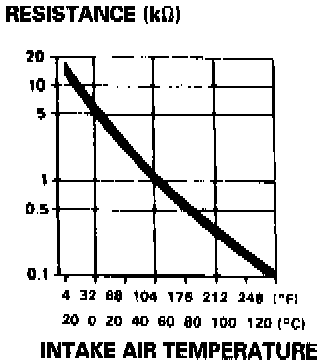

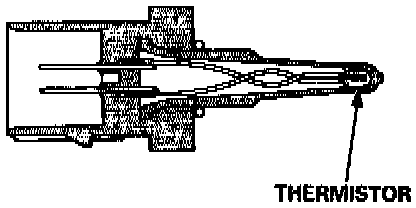

The IAT Sensor is a temperature dependent resistor (thermistor). The resistance of the thermistor decreases as the intake air temperature increases as shown above.
