Rear Seat Belt Buckle

1. Remove the rear seat cushion.

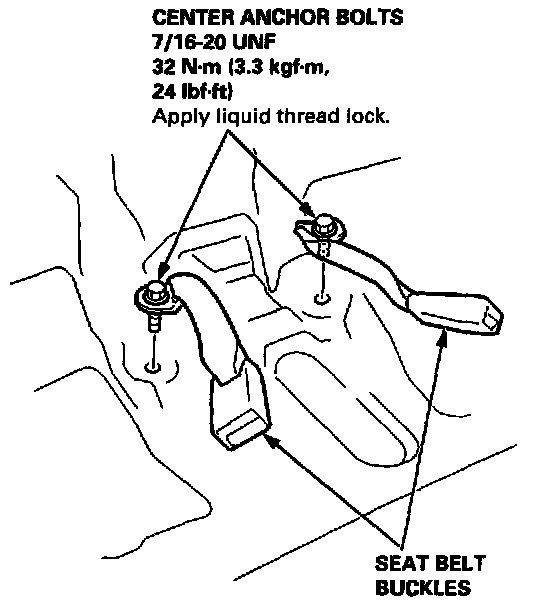

Buckles / Rear Seat:

2. Remove the center anchor bolts, then remove the seat belt buckles.

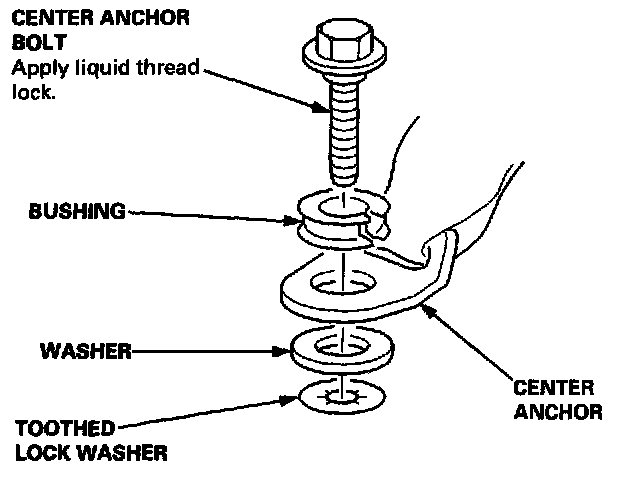

Center Anchor Bolt Construction / Rear Seat:

3. Installation is the reverse of the removal procedure.

NOTE:
- Assemble the washers and bushing on the center anchor bolts as shown.
- When installing the seat cushion, slip the seat belt buckles through the slits in the seat cushion.
