Rear Seat Belt

CAUTION: Check the rear seat belts for damage. and replace them if necessary. Be careful not to damage them during removal and installation.

1. Remove:
- Door sill molding
- Roar pillar trim
- Roar seat-back and rear seat cushion
- Rear bulkhead upper trim
- Door trim (as necessary)
- Quarter trim panel

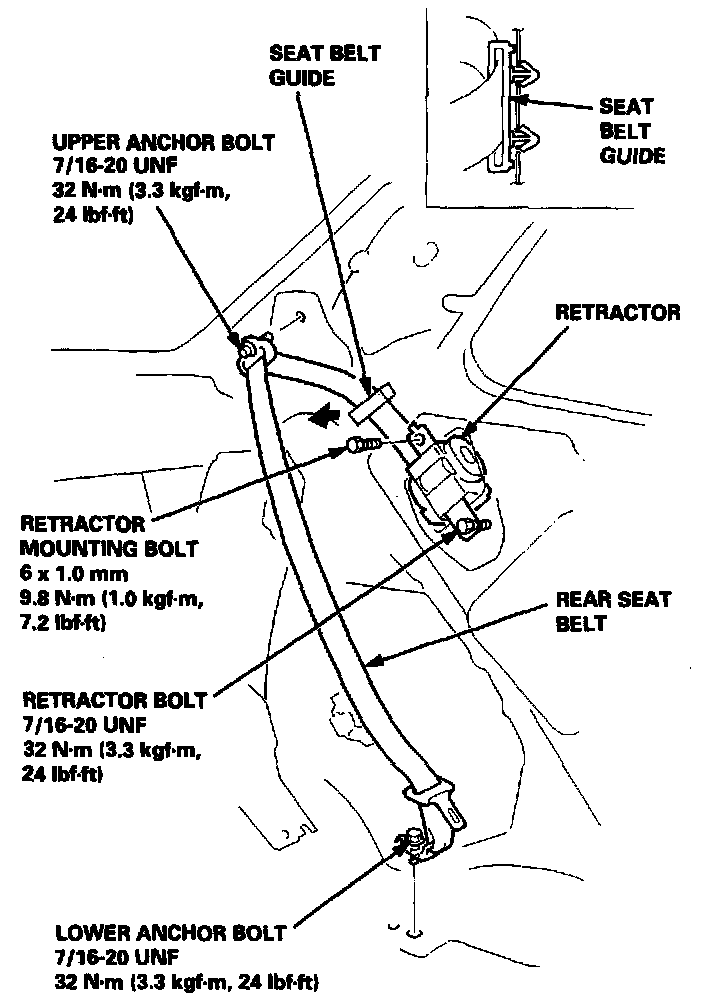

Rear Seat:

2. Detach the seat belt guide. Remove the upper and lower anchor bolts, the retractor bolt, the retractor mounting bolt, and remove the rear seat belt and retractor.
3. Installation is the reverse of the removal procedure.

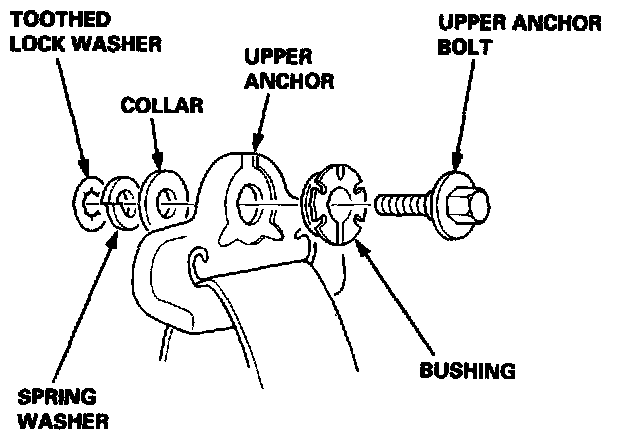

Upper Anchor Bolt Construction / Rear Seat:

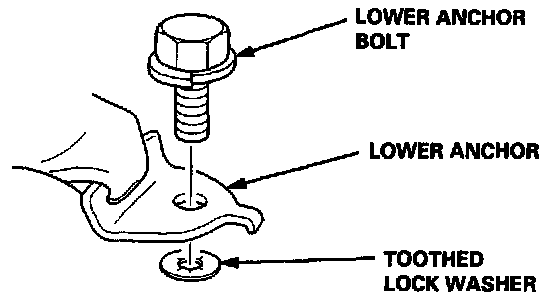

Lower Anchor Bolt Construction / Rear Seat:

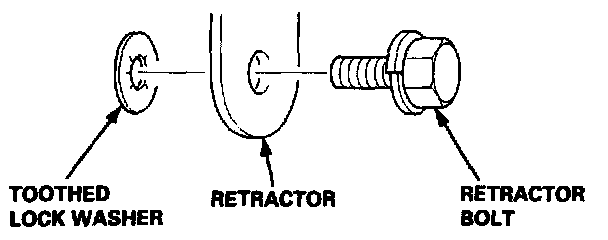

Retractor Bolt Construction / Rear Seat:

NOTE:
- Check that the retractor locking mechanism functions as described.
- Assemble the washers, collar and bushing on the upper anchor bolt as shown.
- Before installing the anchor bolt, make sure there are no twists or kinks in the rear seat belt
