Front Seat Belt Buckle

1. Remove the front seat.

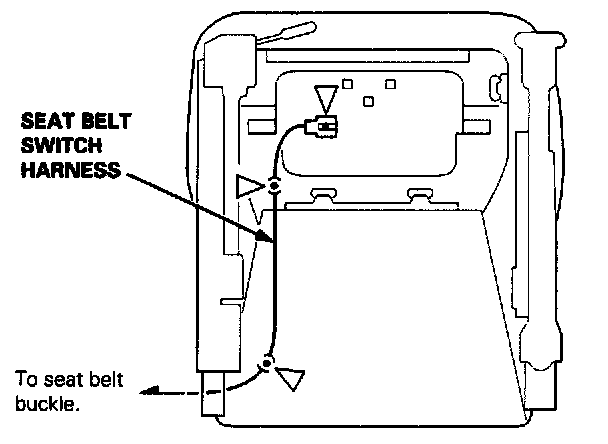

Buckle / Front Seat:

2. Driver's: Detach the seat belt switch connector and harness clips from the seat cushion frame.

NOTE: Raise the seat cushion to its maximum height (with manual height adjustment).

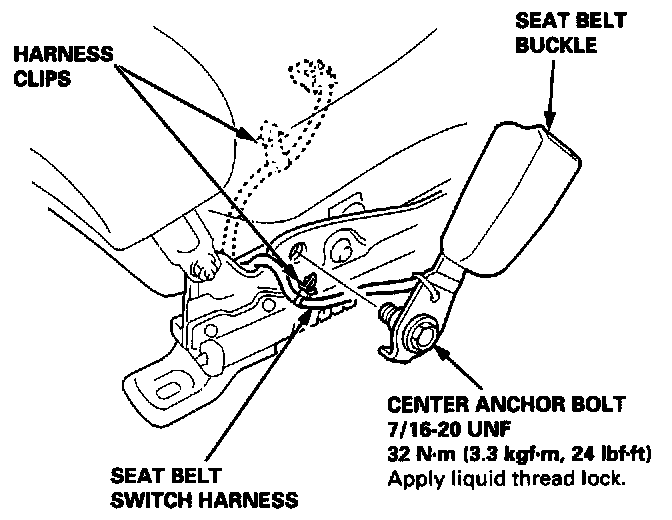

Buckle / Front Seat:

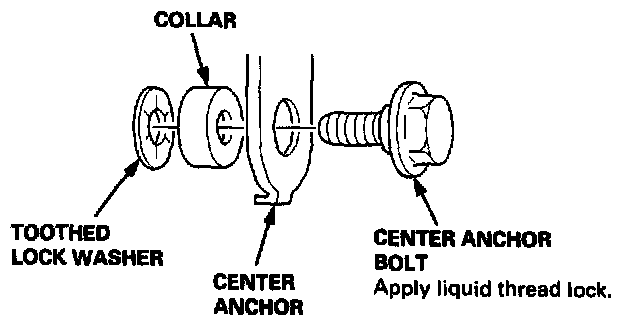

Center Anchor Bolt Construction / Front Seat:

3. Remove the center anchor bolt, then remove the seat belt buckle. Pull out the seat belt switch harness (with seat belt switch).
4. Installation is the reverse of the removal procedure.

NOTE: Assemble the collar on the center anchor bolt as shown.
