Front Seat Belt

CAUTION: Check the front seat belts for damage, and replace them if necessary. Be careful not to damage them during removal and installation.

1. Slide the front seat forward fully.
2. Remove:
- Door sill molding
- Rear seat-back and rear seat cushion
- Door trim (as necessary)
- Rear pillar trim
- Rear bulkhead upper trim
- Quarter trim panel

Front Seat:

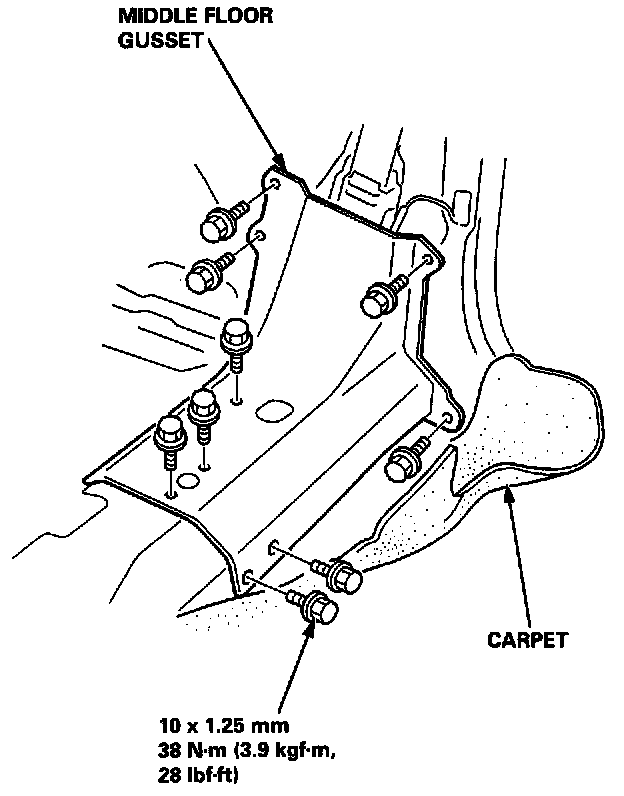

3. Pull back the carpet as necessary, and remove the bolts securing the middle floor gusset. Remove the middle floor gusset.

Front Seat:

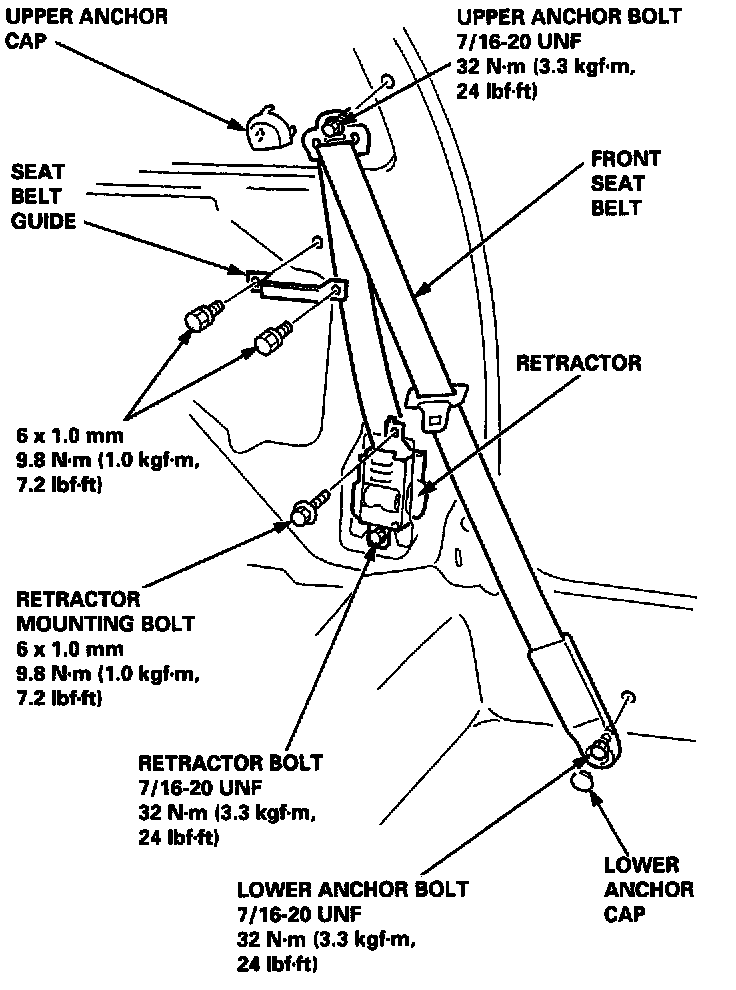

4. Remove the upper anchor cap, lower anchor cap and seat belt guide.

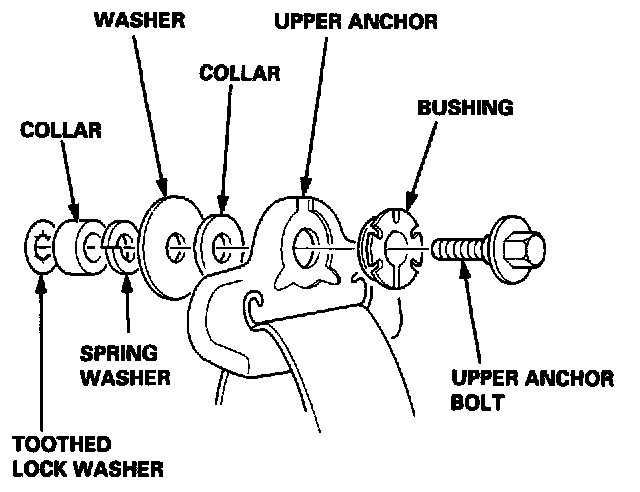

Upper Anchor Bolt Construction / Front Seat:

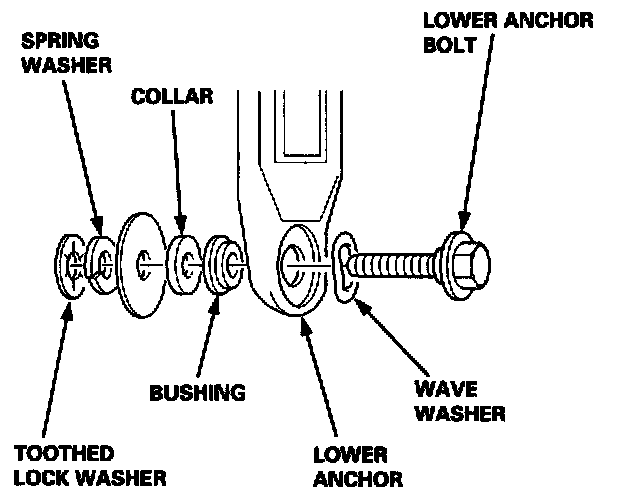

Lower Anchor Bolt Construction / Front Seat:

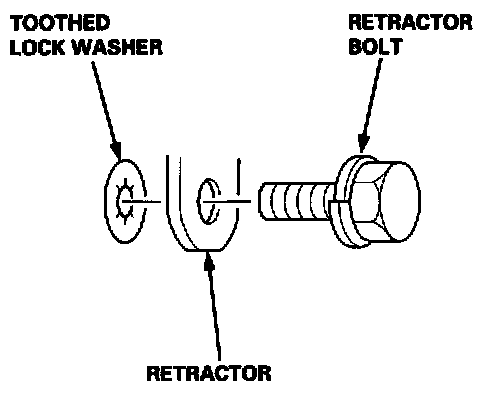

Retractor Bolt Construction / Front Seat:

5. Remove the upper and lower anchor bolts, the retractor bolt, the retractor mounting bolt, and remove the front seat belt and retractor.

6. Installation is the reverse of the removal procedure.

NOTE:
- Check that the retractor locking mechanism functions as described.
- Assemble the washers and collars on the upper and lower anchor bolts.
- Before installing the anchor bolts, make sure there are no twists or kinks in the front seat belt.
