Seat Belt Retractor: Testing and Inspection

1. Before installing the retractor, check that the seat belt can be pulled out freely.

Retractor:

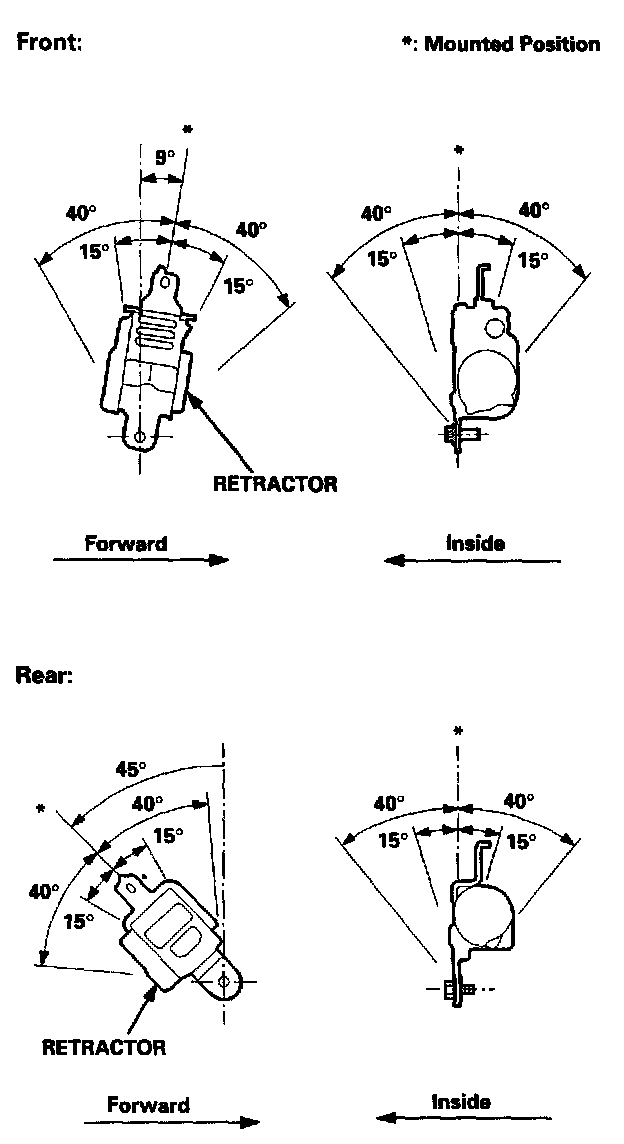

2 Make sure that the seat belt does not lock when the retractor is leaned slowly up to 15° from the mounted position. The seat belt should lock when the retractor is leaned over 40°.

CAUTION: Do not attempt to disassemble the retractor.

3. Replace the seat belt with a new one if there is any abnormality.
